Dr. Tetrode - Valkryie Build II - attempt with color.

dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64

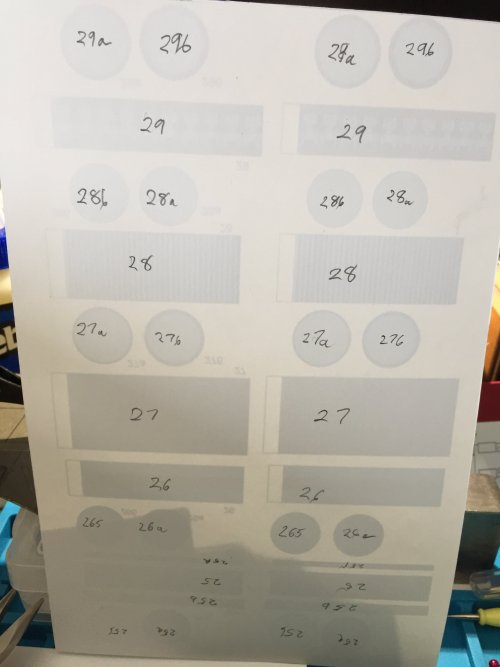

Engine Build continued, must remember to label parts! The confusion of which is which will drive me nuts! So with lamp in front of me, I label the engine parts.

IMG_3129.JPG IMG_3128.JPG IMG_3127.JPG

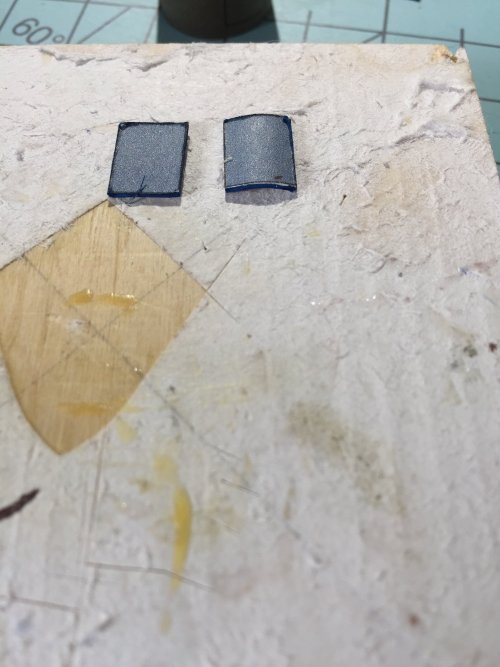

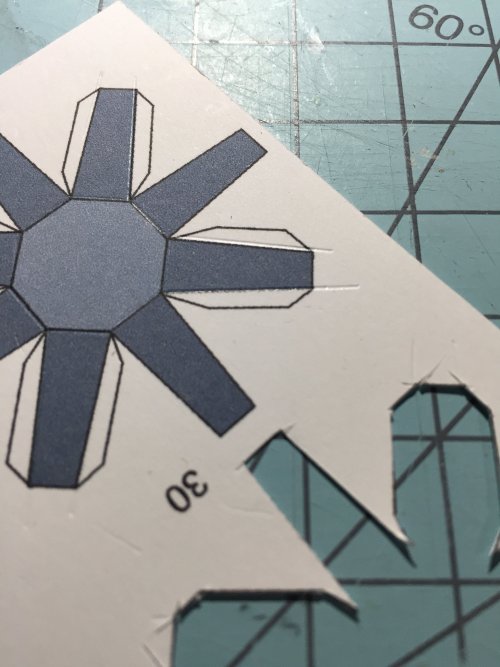

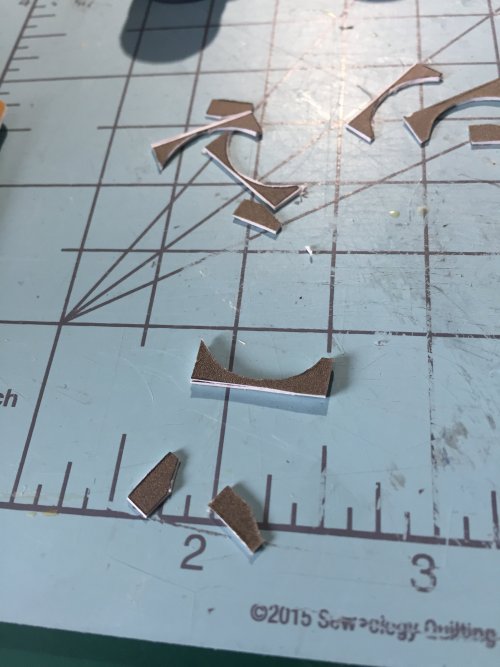

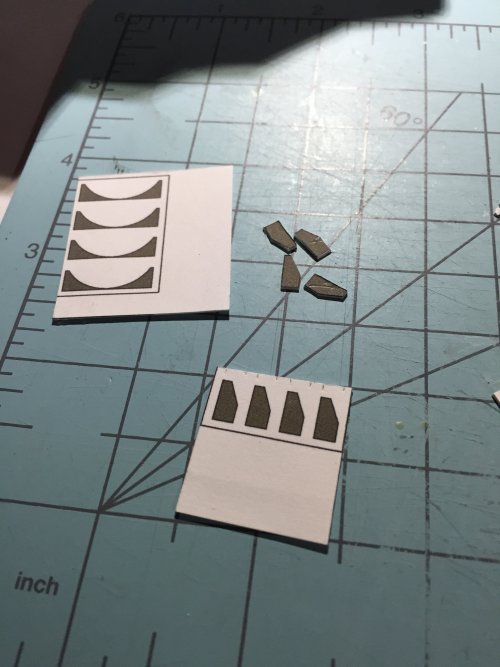

Now, for the nozzeles - cutting, scribing, and coloring edges and the back side in black using Prismal Color pen in black.

IMG_3120.JPG IMG_3121.JPG IMG_3122.JPG

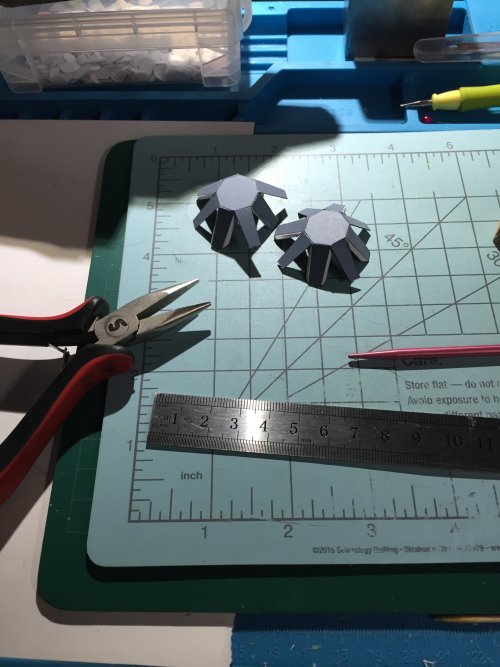

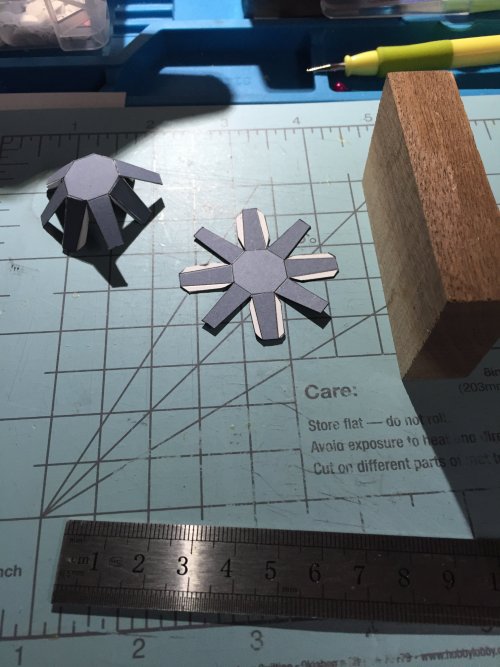

Now on to folding. I have some flat surfaced pliers, and used them to make the tab folds. That was easier than trying to break the fold over the edge of a piece of wood. This might get used more often.

IMG_3123.JPG IMG_3124.JPG

Happy Making!

Scott


Awry_Chaos

OKB-4155
Dec 23, 2020
1,224
1,561
95
48
Spokane, WA
Good work so far! I don't think there should be any problems using inter-forum links. Just copy and paste them in your posts and you should be good to go!


dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64

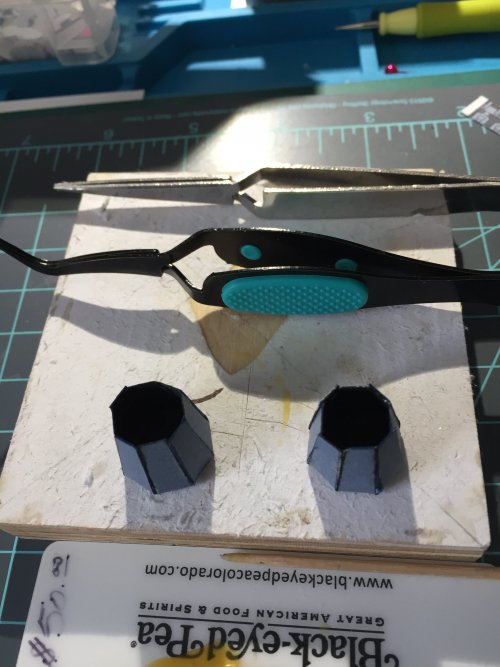

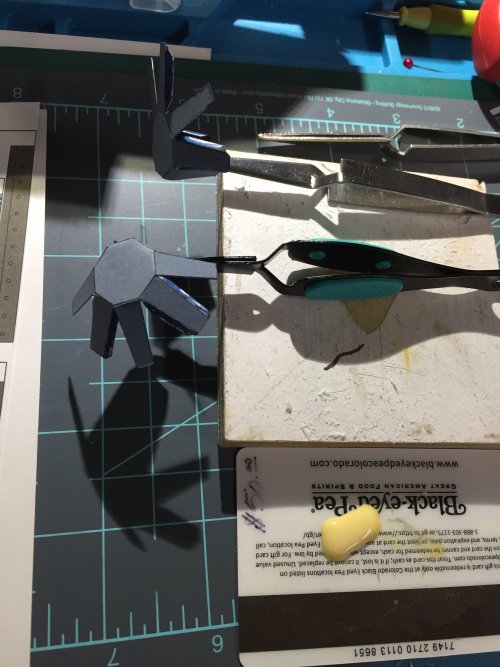

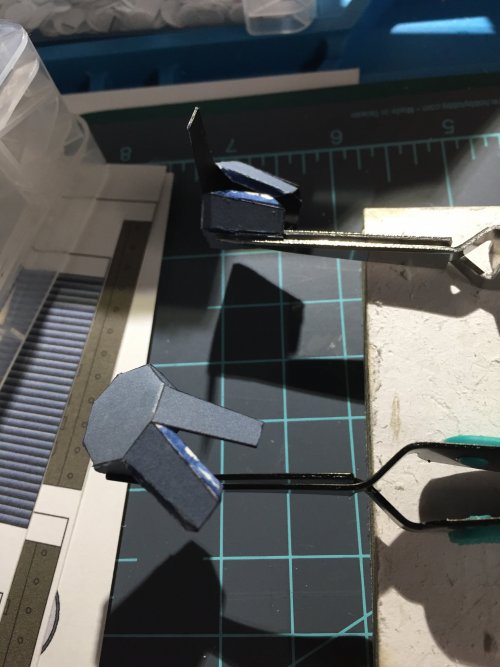

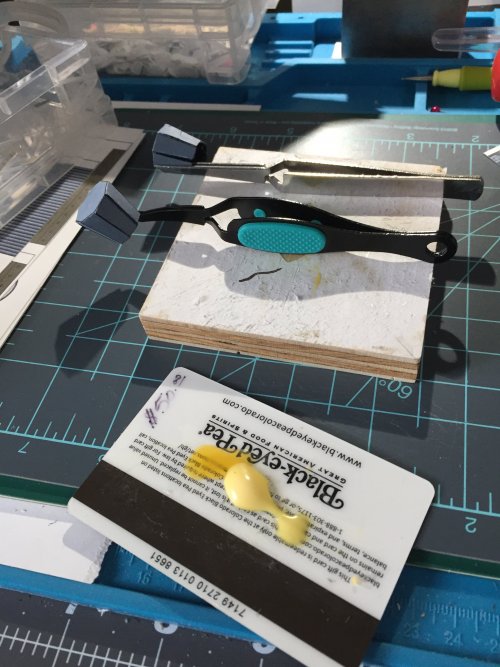

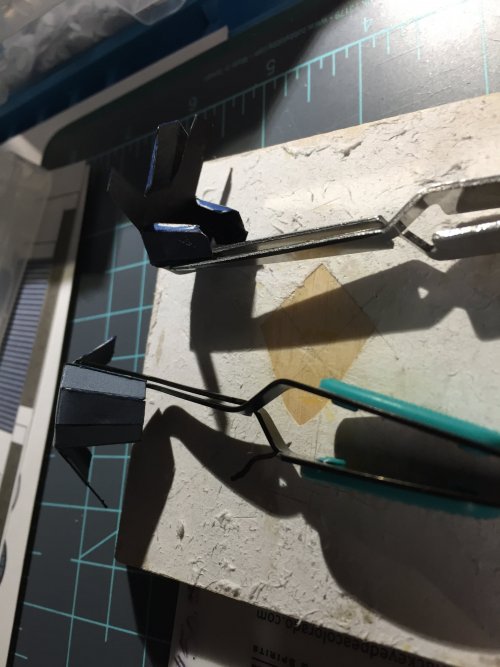

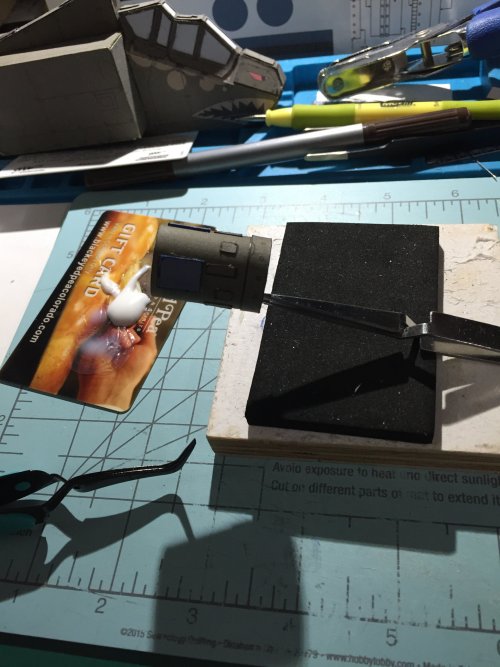

Gluing up the engine nozzles, one flap at a time, used 2 clamping tweezers to hold while I folded and glued the other one.


IMG_3124.JPG IMG_3130.JPG IMG_3131.JPG
IMG_3132.JPG IMG_3133.JPG

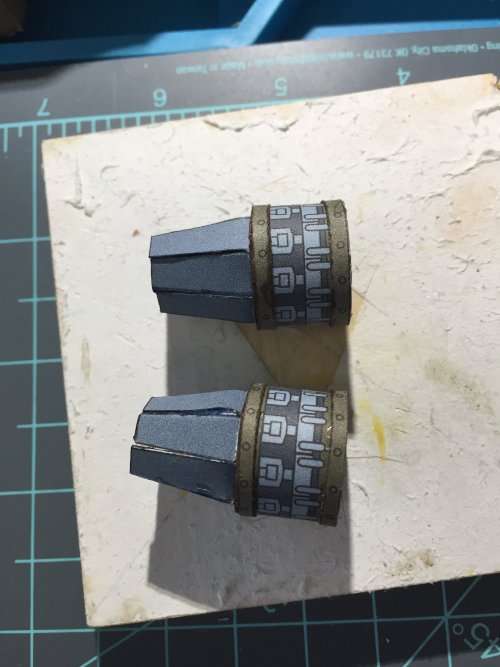

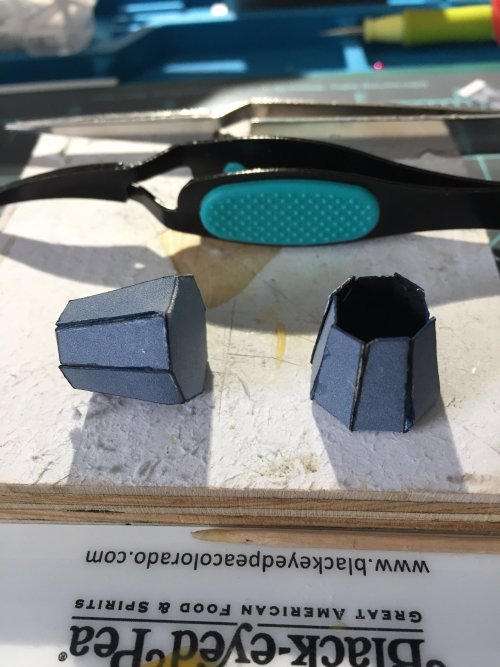

Completed nozzles.

IMG_3134.JPG IMG_3135.JPG

Thanks for the replies, will use the full link, copy and paste in the future.

Scott

Keep on Building.


zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 6, 2013
12,882
8,594
228
Really nice, tight build. Everything is so well put together. Great progress! :)

  • Like
Reactions: Awry_Chaos

dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64
Hi, some more work getting done, slowly.... ;-)

Thanks for comment!

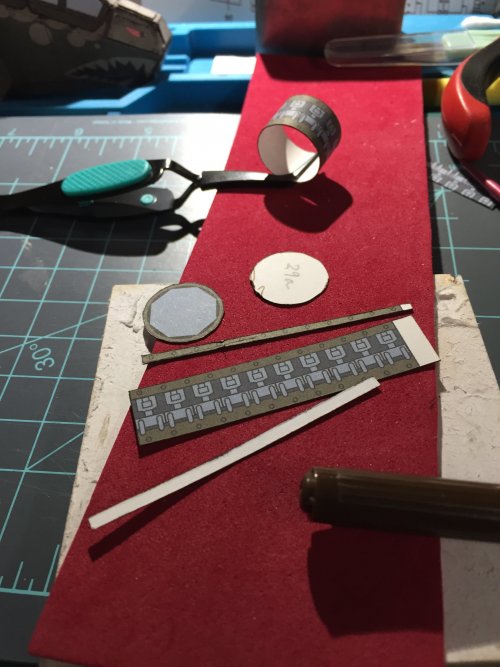

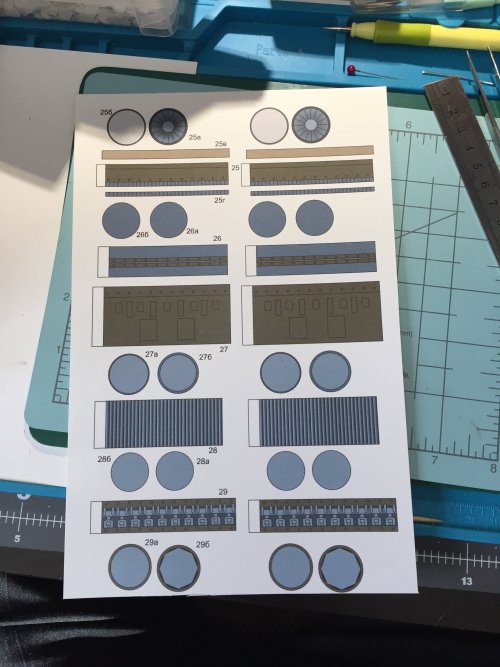

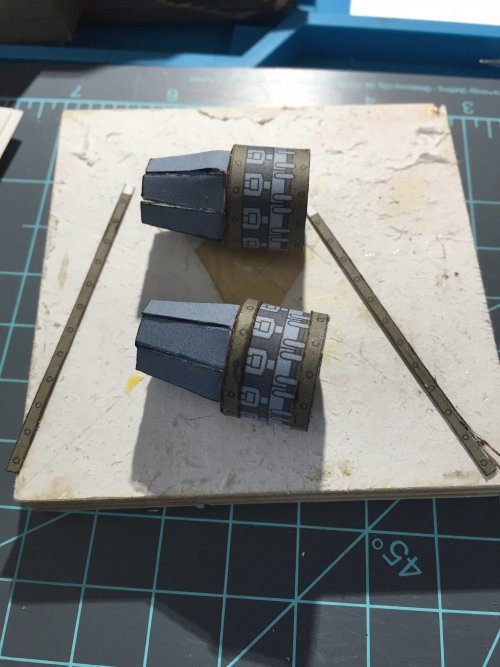

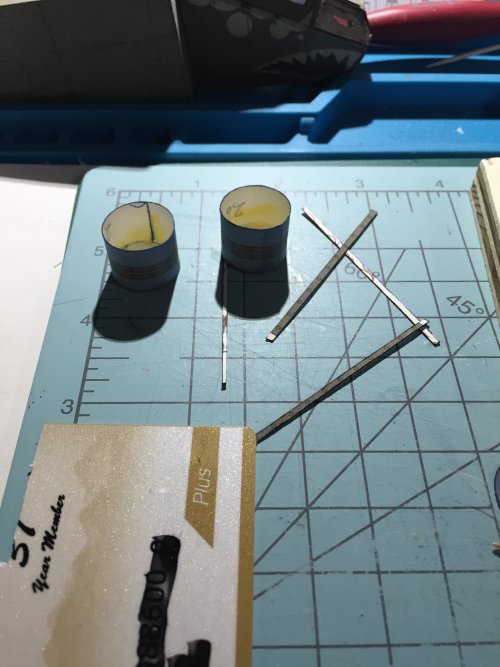

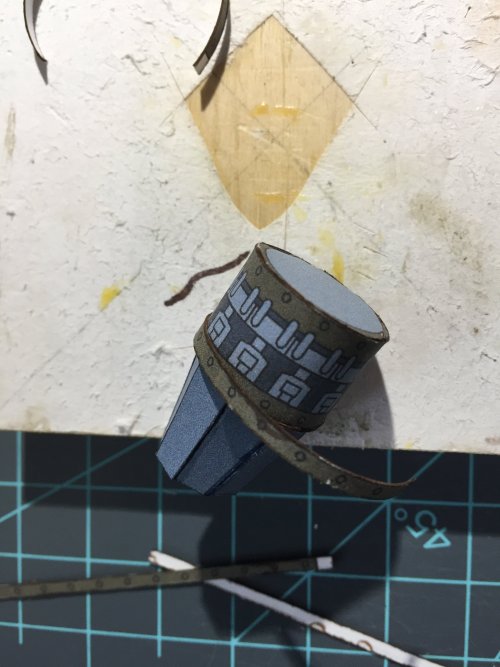

Assembling the next section of the engine from the rear. I chose to add a little dimension by printing another copy of the sheet and cutting out the 'rivet strips' and adding them on to this section. Had to glue two circles into a cylinder, then add the nozzles to that assembly.

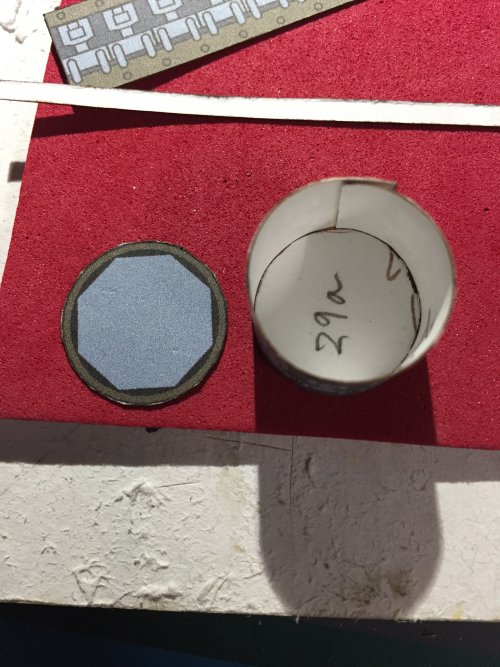

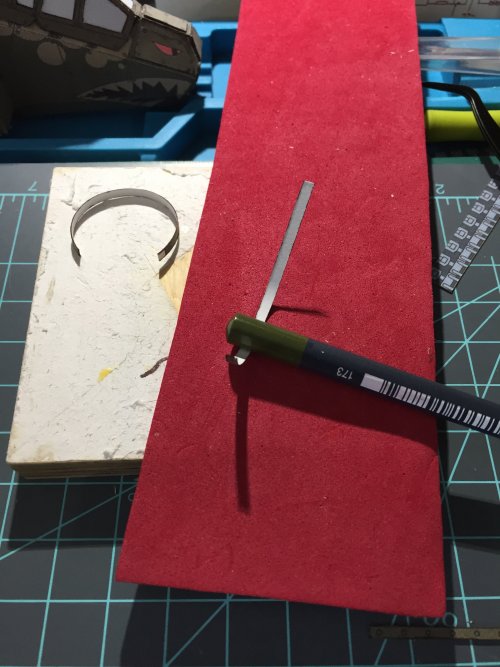

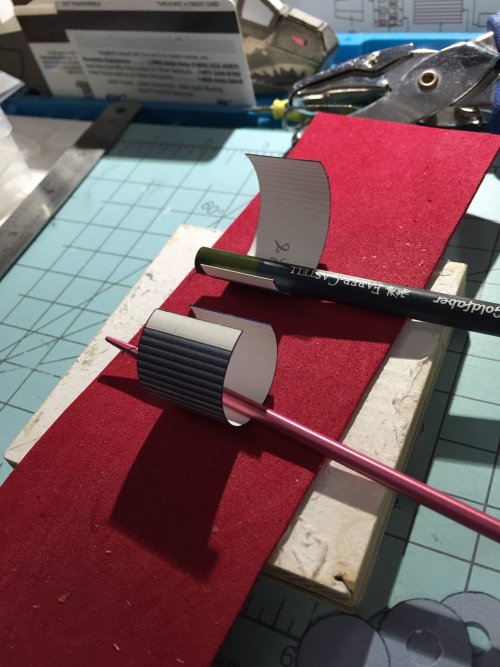

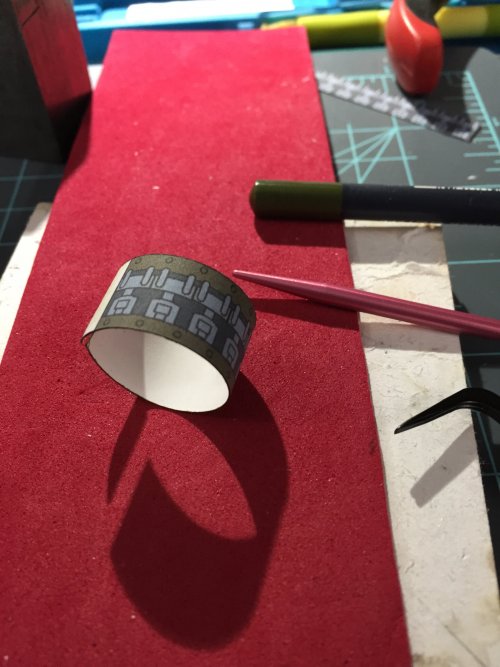

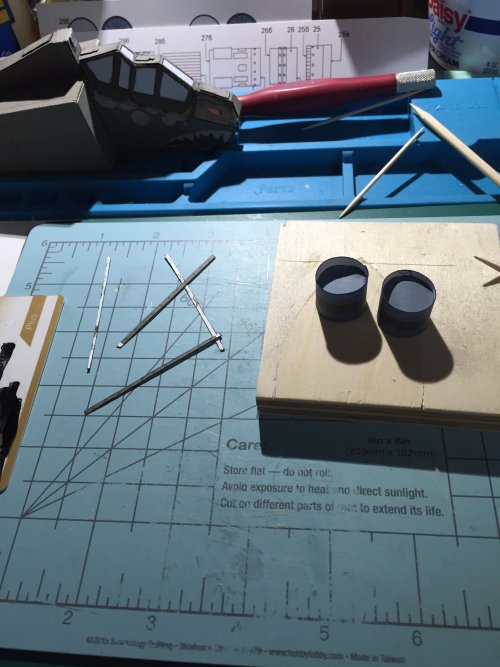

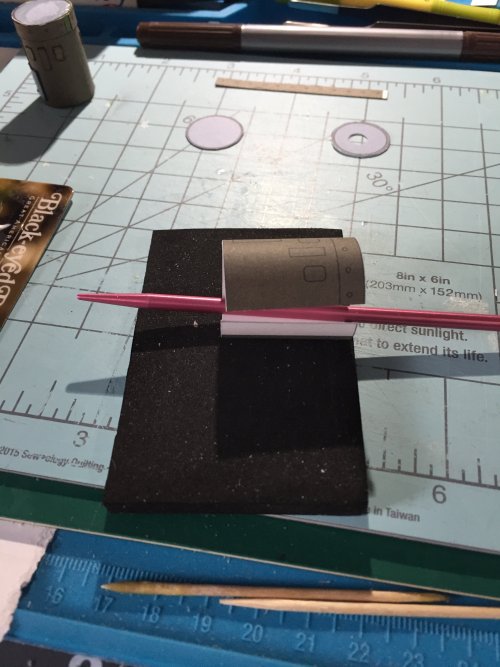

Rounding the cylinder by using a pencil and then a knitting needle to roll it against foam. Cylinder in the background with clamping tweezers. Pushed the circle down in the cylinder and glued.
IMG_3140.JPG IMG_3136.JPG IMG_3137.JPG

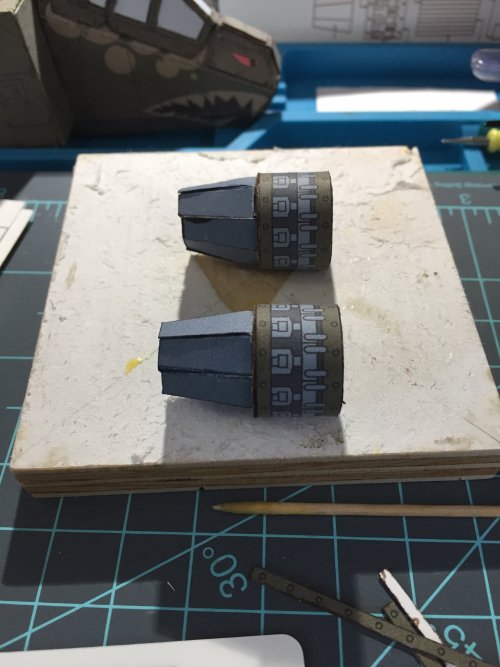

Glued nozzle to circle for final assembly.
IMG_3138.JPG IMG_3141.JPG

Next, some dimension.

Scott ;-)

Last edited:

dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64

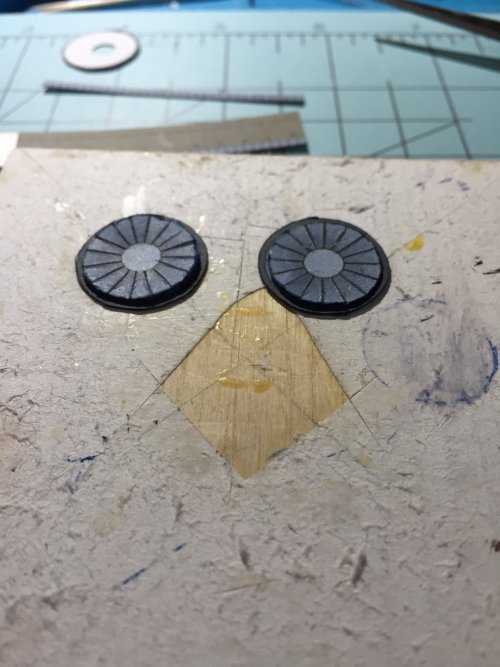

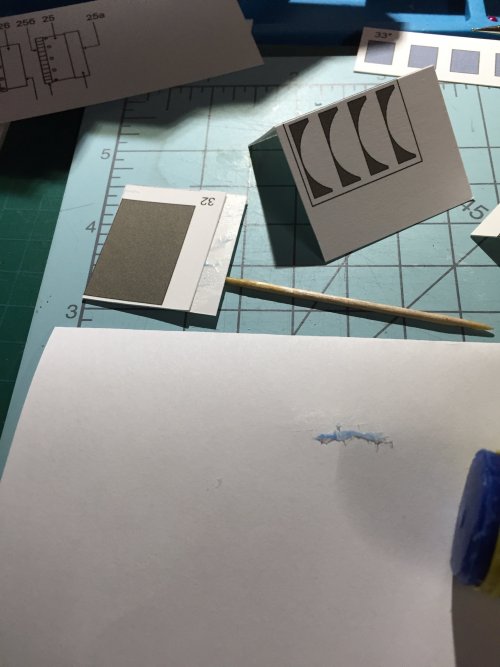

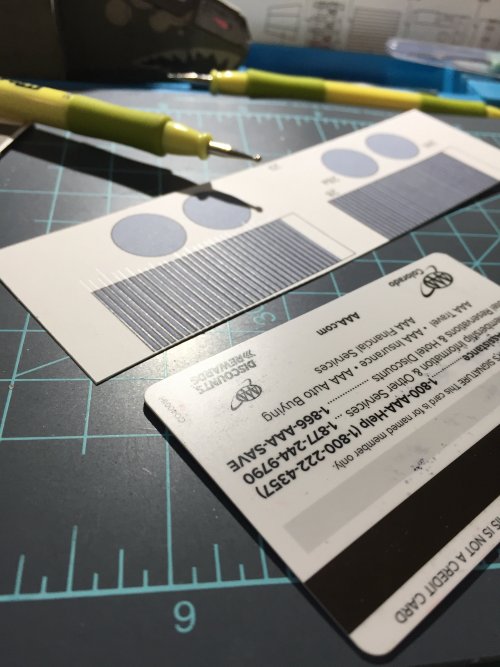

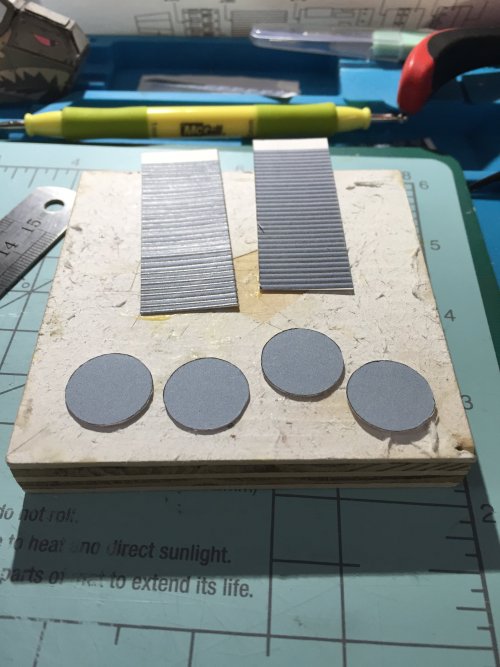

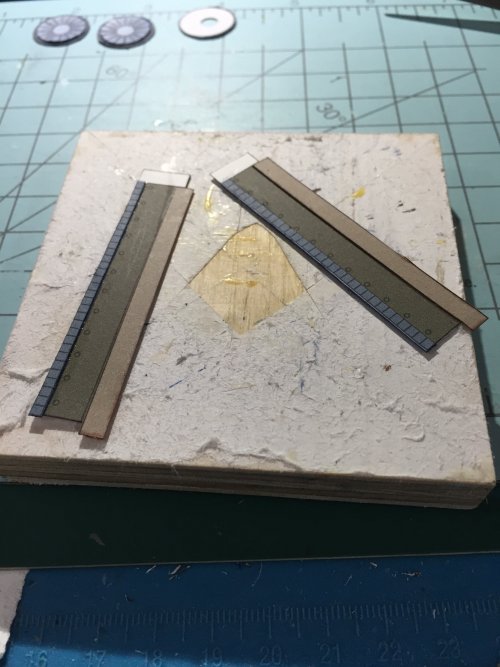

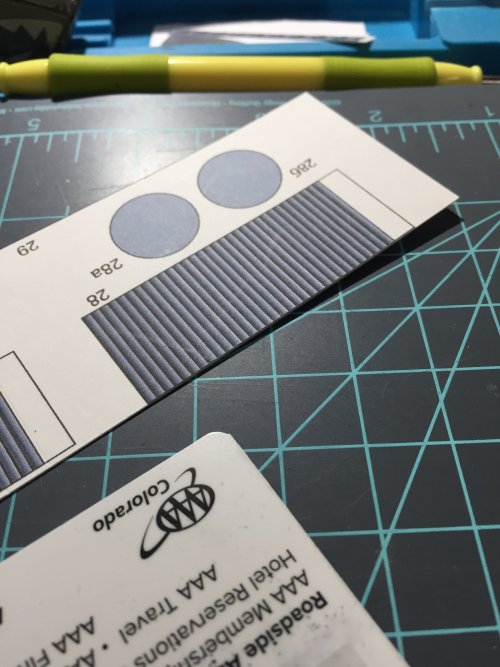

Next section, first picture shows tools and result of using the tracing stylus ball to emboss the lines. Second shows un-embossed section.

IMG_3150.JPG IMG_3151.JPG

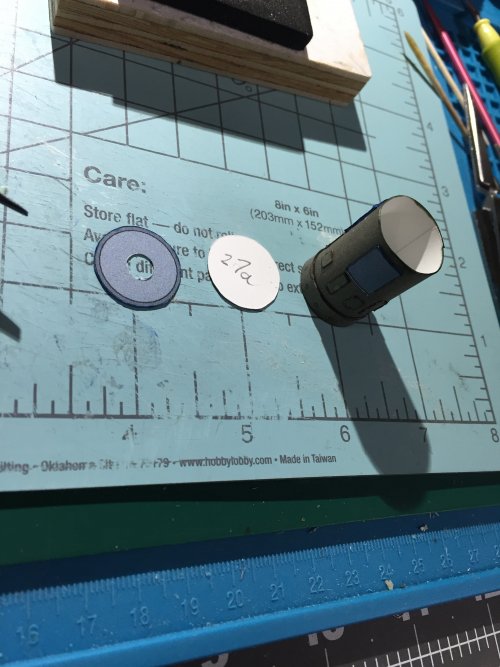

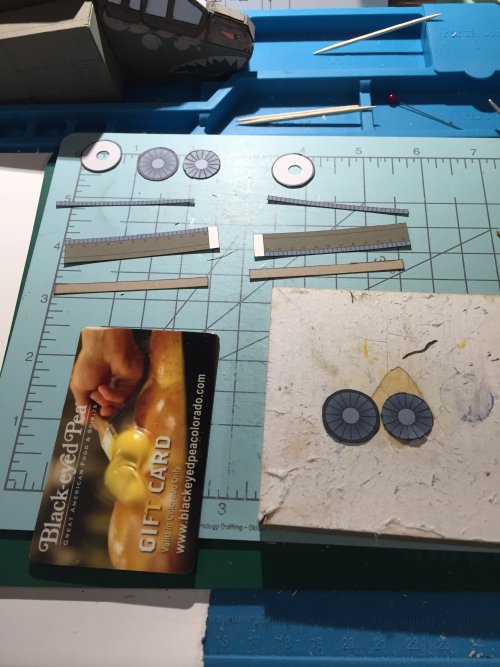

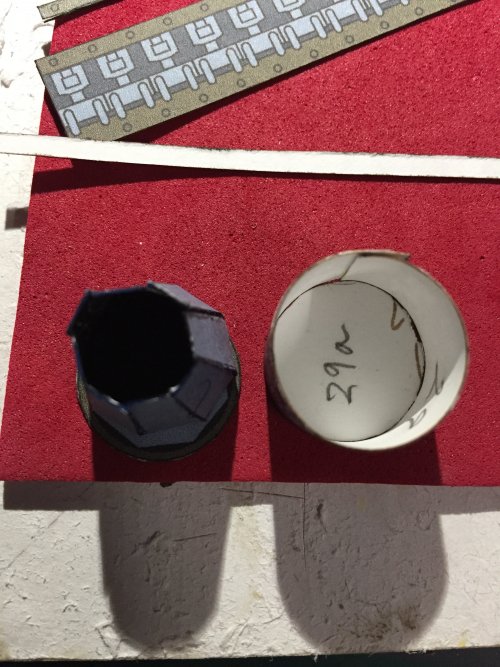

Components ready for assembly. Think I will punch a hole in one of the circles, to allow me to push the other circle to the end of the cylinder while assembling. The hole will be covered when all the engine sections are glued together.



Until next time I get some time to work, keep building!

Scott


dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64

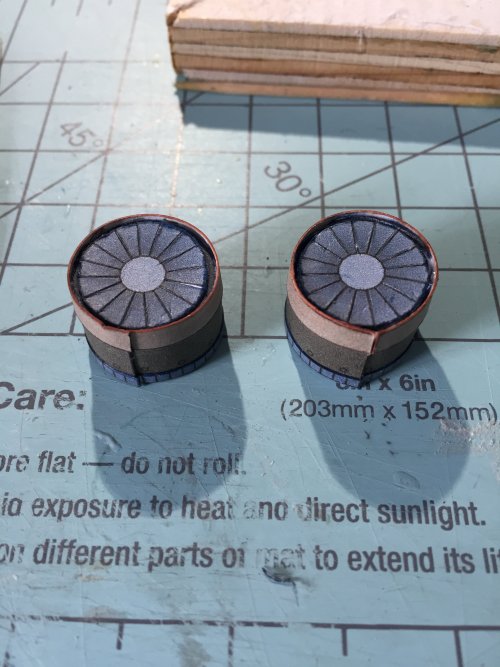

Finish of this stage.

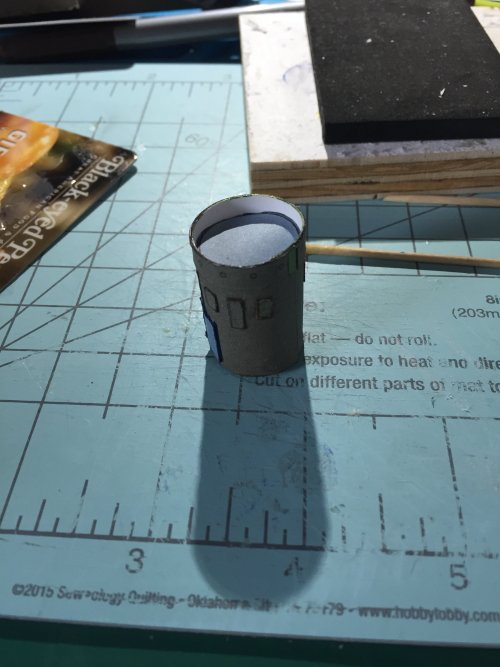

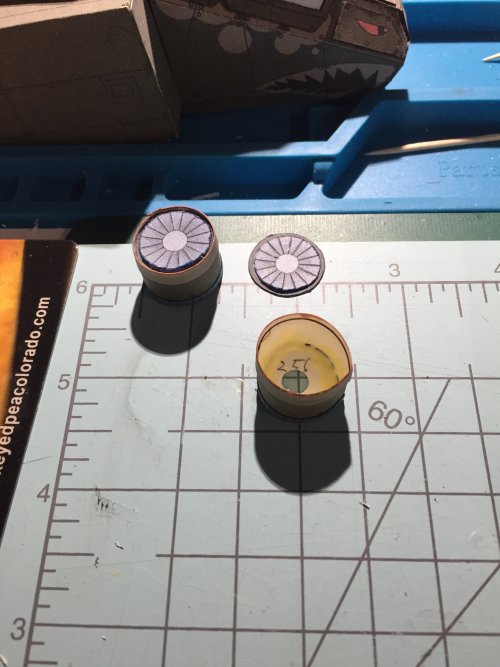

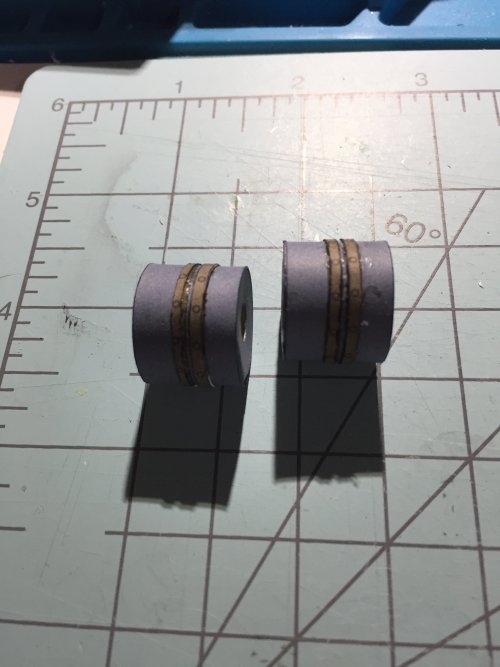

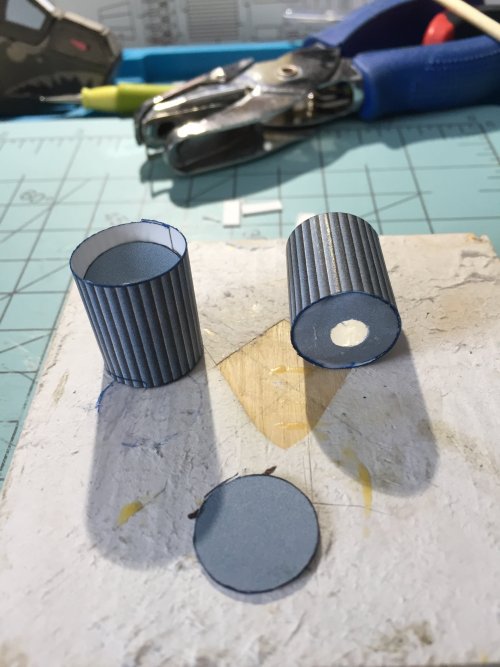

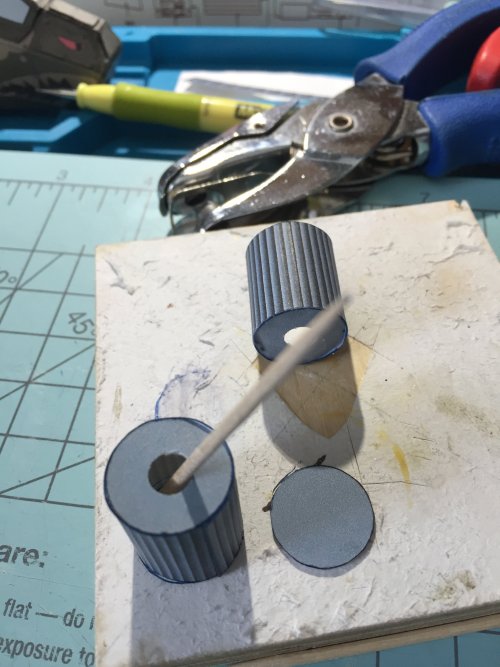

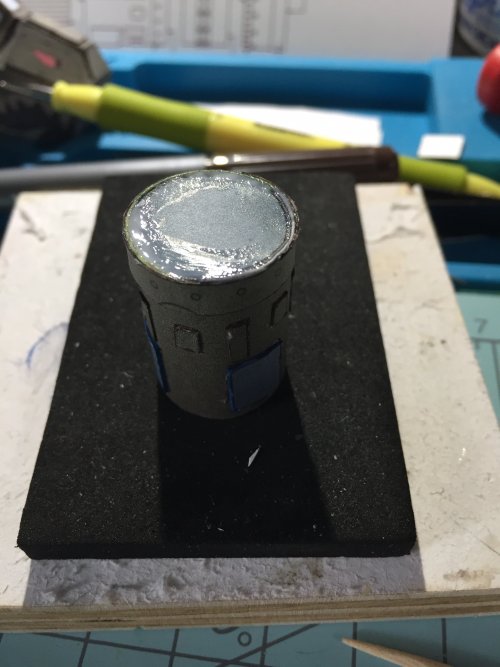

Rolling on foam to get a rounded cylinder, first picture, and then using the hole in the one end concept, to put the circles/ends of the cylinders on. You glue in the end with the hole, let dry a bit, then you put in the other end, a little too far, add glue, make sure it is clear! on top and then turn over on a non-gluing surface, and push then circle to the end of the cylinder. Yes, this leave some glue on the end of the cylinder, but in this case, they will be covered up as the engine is assembled. A WHOLE lot easier then with both ends closed and trying to put the second end on the cylinder!

IMG_3154.JPG IMG_3155.JPG IMG_3156.JPG


Moving on the next section.

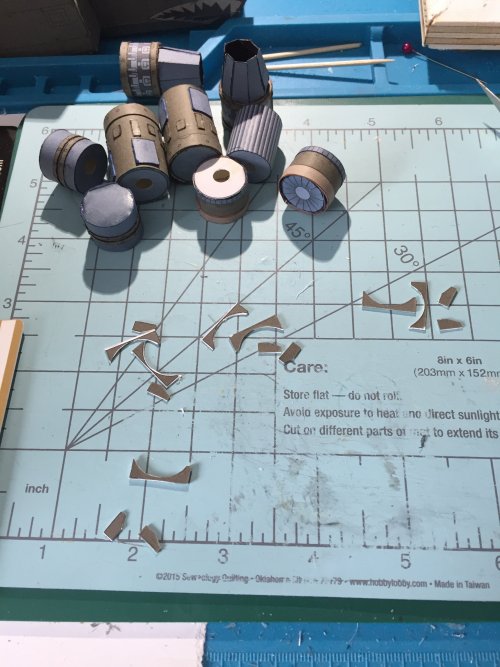

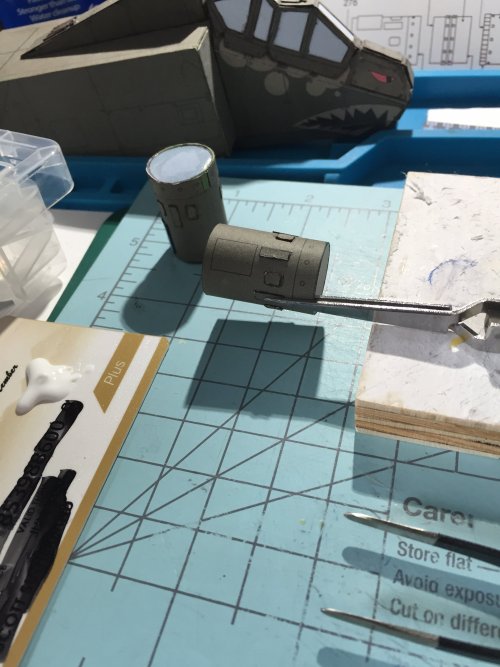

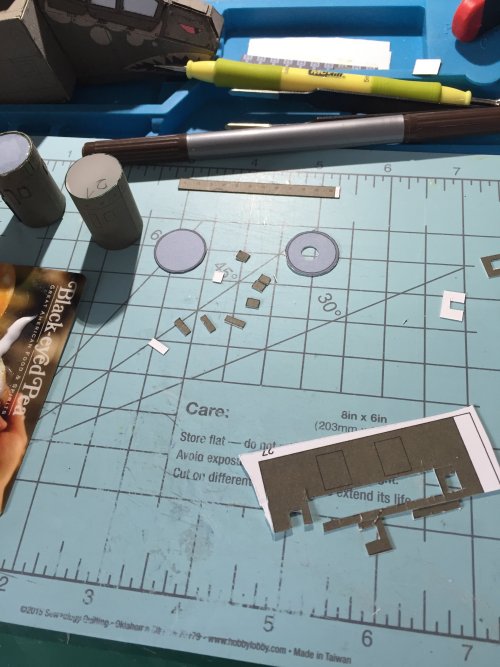

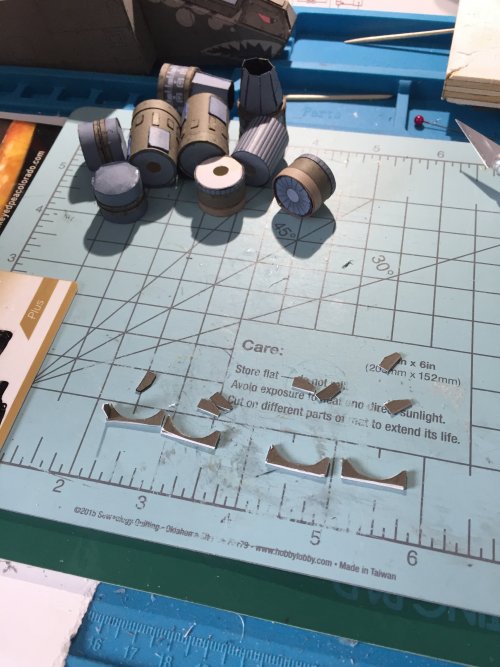

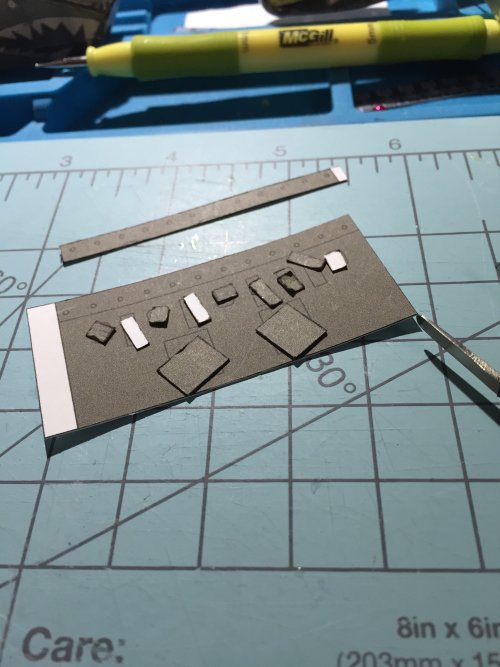

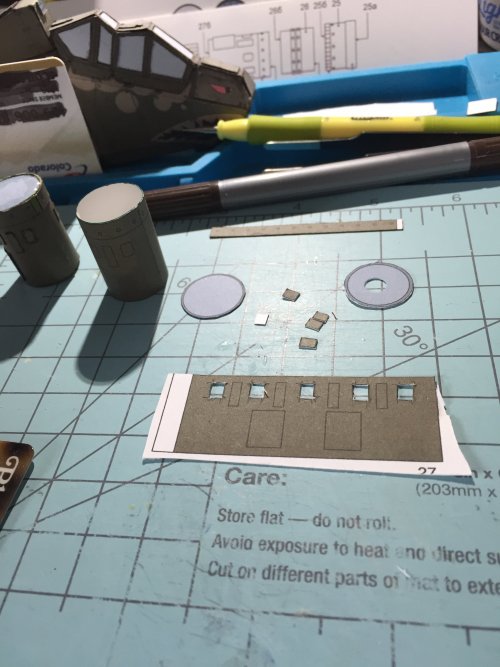

GREBLES! I printed another sheet and cut out the small parts to glue on before the cylinder was shaped. This seemed to work OK.

IMG_3157.JPG IMG_3158.JPG IMG_3159.JPG

IMG_3160.JPG IMG_3161.JPG IMG_3162.JPG

As you can see int he last picture there is glue on the end of the cylinder.

Scott ;-)


dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64

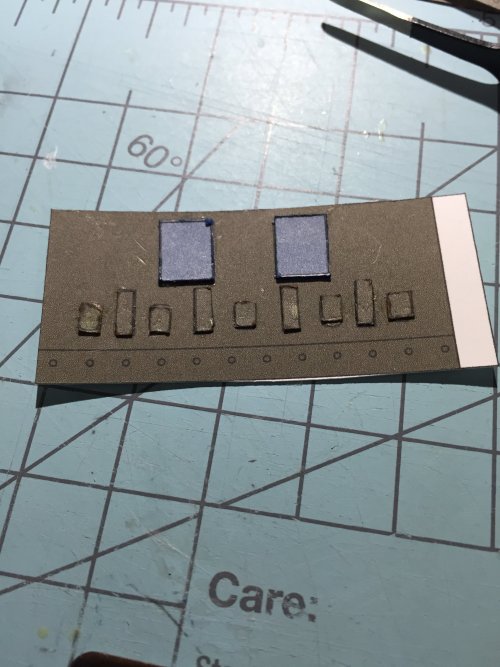

For the second one, I tried a different method. Roll the cylinder first, then glue on the Grebles.

IMG_3163.JPG IMG_3165.JPG IMG_3166.JPG

I shaped the large pieces with foam and roller, they matched the curvature of the cylinder, and were glued on along with all of the other grebles.

IMG_3167.JPG IMG_3168.JPG

Keep building and having fun!

Scott ;-)

Last edited:

zathros

*****SENIOR ADMINISTRATOR*****
Staff member
Administrator
Moderator
Apr 6, 2013
12,882
8,594
228
Every part is cut clean, them assembled so clean. Very impressive! :)

  • Like
Reactions: Awry_Chaos

dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64
Thanks for the encouragement.

Next engine section.

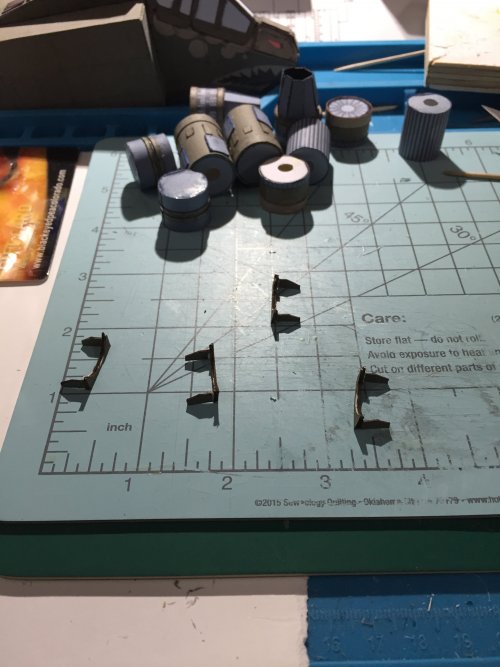

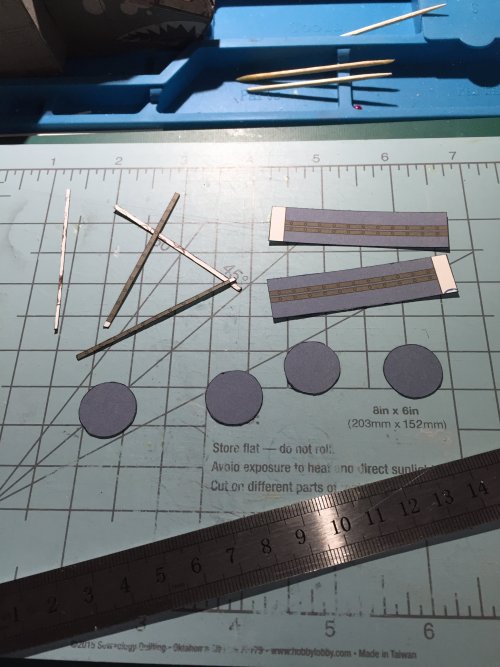

Parts cut out, cylinders made.
IMG_3169.JPG IMG_3170.JPG

Ends placed in cylinders, and then the 'greble' strips added.
IMG_3171.JPG IMG_3172.JPG

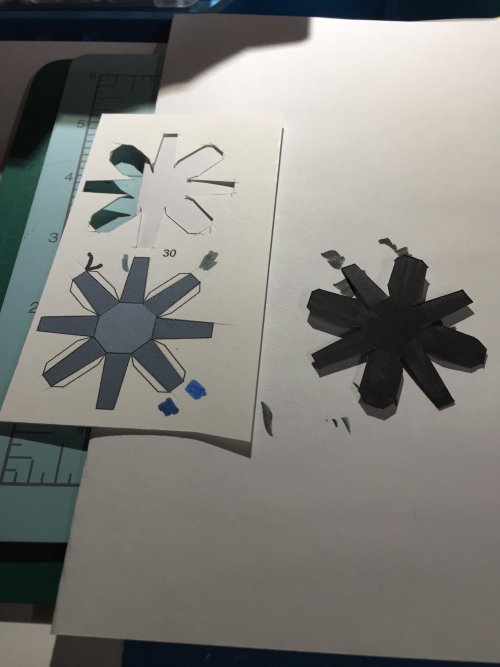

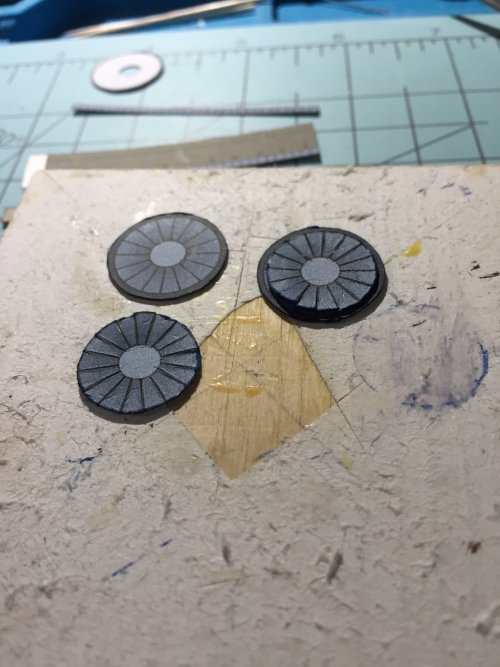

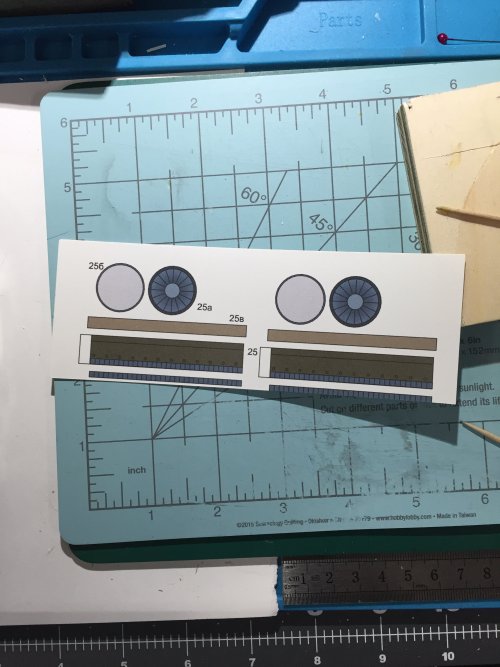

Front section of the engine, with the fan. I wanted a little more detail, so I cut another fan out, and cut each blade out.

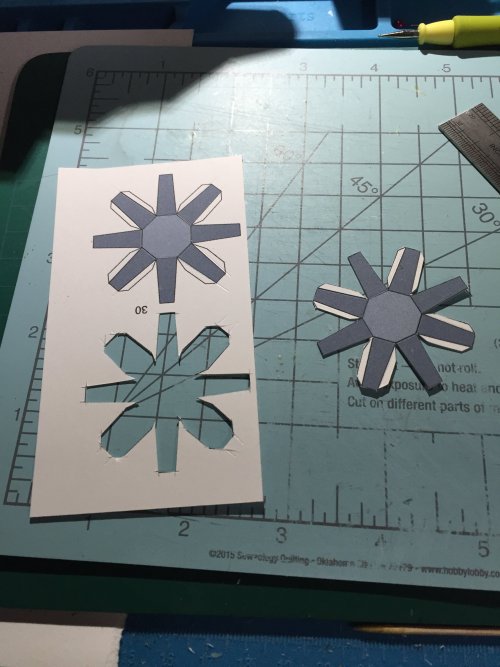

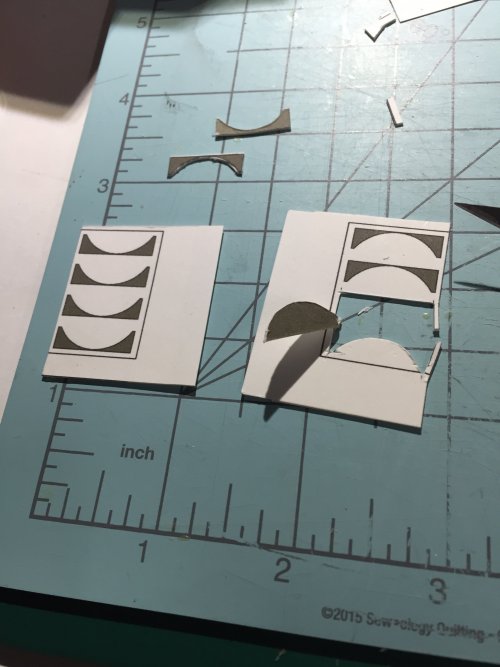

Cut out the parts.
IMG_3173.JPG IMG_3174.JPG

Put the fan blades together, the uncut and cut.
IMG_3175.JPG IMG_3176.JPG

Add strips to the cylinder, insert the ends, and glue up.

IMG_3177.JPG IMG_3178.JPG IMG_3179.JPG


That finishes the assemblies for the engine.

Scott


dr_tetrode

Active Member
Jan 8, 2019
129
314
40
64
Final assembly of the engines. Start with the engine stands.

IMG_3180.JPG IMG_3181.JPG IMG_3182.JPG IMG_3183.JPG


Now we glue 2 assemblies at time together, using a little weight to get things to stay kind of straight.

IMG_3184.JPG IMG_3185.JPG

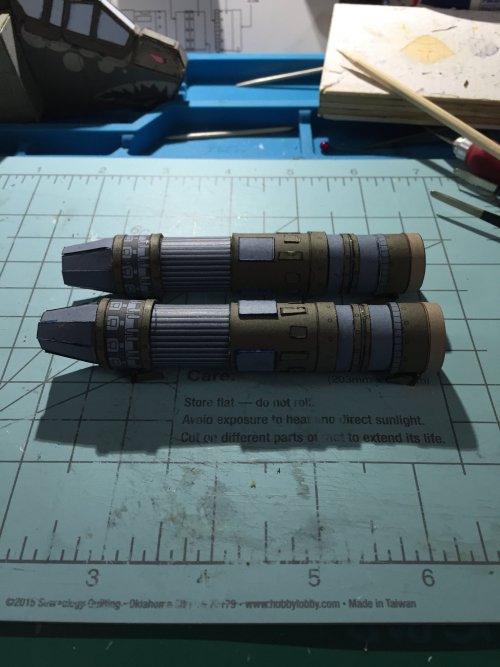

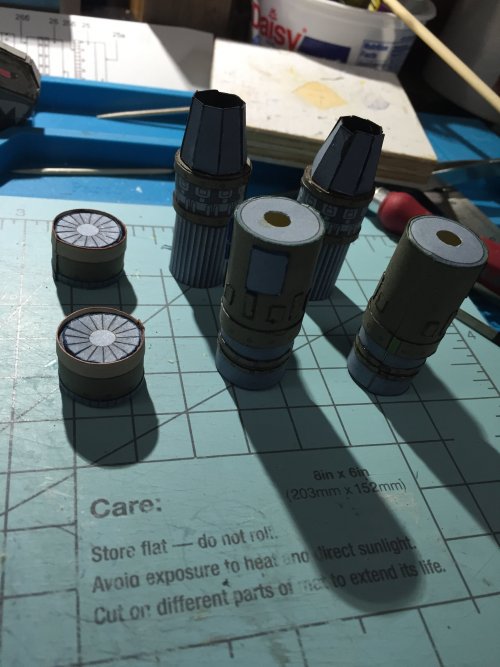

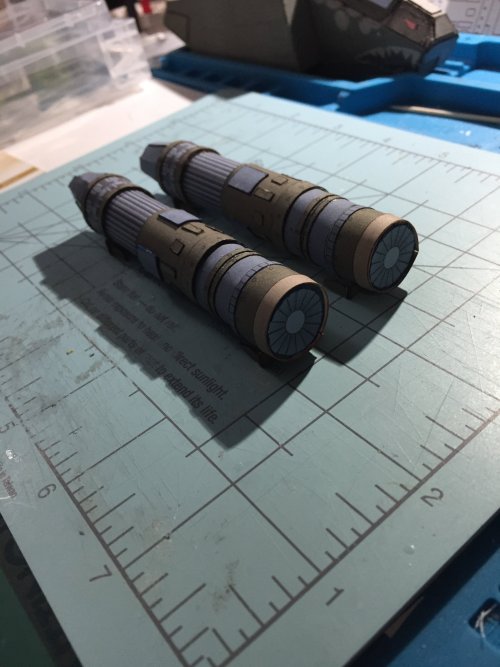

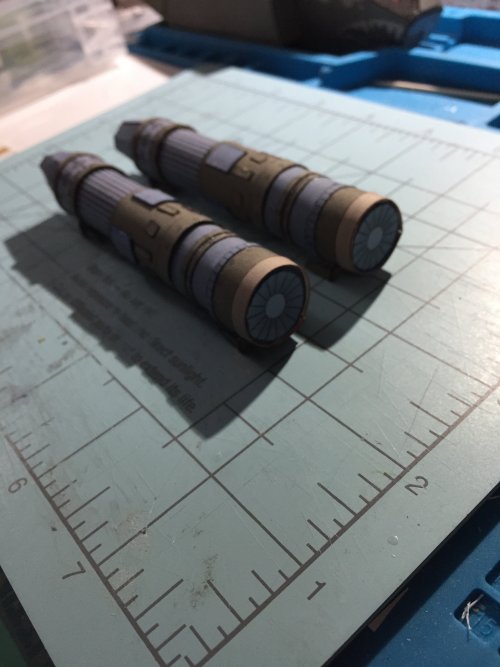

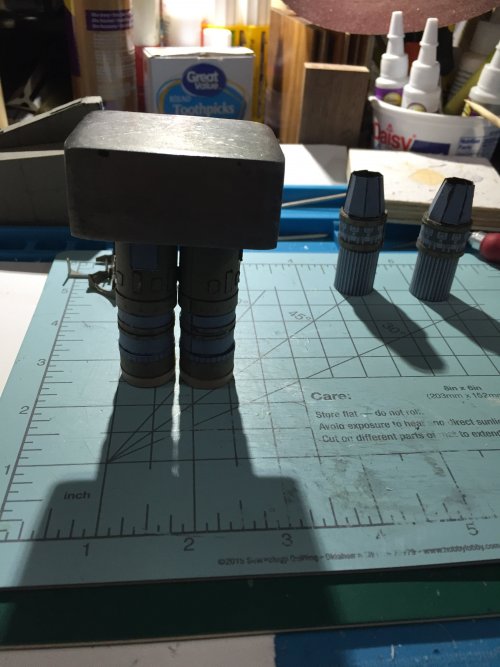

Assembled engines. I will wait until I have the tail spars glued on the main fuselage, before mounting the engines on it.

IMG_3186.JPG IMG_3187.JPG IMG_3188.JPG IMG_3189.JPG


Wow! Just played with the zoom on the post! You can see my fingerprints! And all my flaws..... oh well, this is still fun.

Having fun! Hope you are too. Make some models!

Scott ;-)


Sudsy

Well-Known Member
Sep 29, 2018
466
1,242
75
40
Nice!

I've always had more success rolling out the form, then adding greebles... Laminated card and glue don't roll so nice, but it's possible (with enough water, and putty to fill cracks after....).

  • Like
Reactions: Awry_Chaos
