Donkey Try...HELP!!
- Thread starter Lighthorseman
- Start date
Disclaimer: I have never seen or built a donkey and I don't know anything about logging, On30 or 303's, so I am likely the least qualified person to answer your post. I do know how to club away at the keyboard, though, so I'm gunna try
Referring to the famouse shamos 303 donkey here, the one in the Academy: If I'm not mistaken, a 303 casing would be .3" at the top where it was once crimped to a lead pill. Just earballin it, I would say it's about 5 times taller than that, or about 1.5" Sooooo, if I'm not mistaken, I guess you about double it to get O from HO, so I guess you want it to be about 1/2 in dia or maybe 3/4 and about 3" tall. Someone please correct me if I'm wrong, but this should get you close enough for government work. I would start with 1/2" PVC pipe and go from there Maybe even 1/2" PVC caps, which are about 5/8 or 3/4 dia, then go to 1/2" pipe at the top?
Referring to the famouse shamos 303 donkey here, the one in the Academy: If I'm not mistaken, a 303 casing would be .3" at the top where it was once crimped to a lead pill. Just earballin it, I would say it's about 5 times taller than that, or about 1.5" Sooooo, if I'm not mistaken, I guess you about double it to get O from HO, so I guess you want it to be about 1/2 in dia or maybe 3/4 and about 3" tall. Someone please correct me if I'm wrong, but this should get you close enough for government work. I would start with 1/2" PVC pipe and go from there
Maybe even 1/2" PVC caps, which are about 5/8 or 3/4 dia, then go to 1/2" pipe at the top?Here's the thread on Donkey Engines
http://www.the-gauge.com/forums/showthread.php?s=&threadid=2459&highlight=Donkey
You have a great start there my friend, the Boiler looks about right for size, I used an old 303 shell for mine.
Shamus
http://www.the-gauge.com/forums/showthread.php?s=&threadid=2459&highlight=Donkey
You have a great start there my friend, the Boiler looks about right for size, I used an old 303 shell for mine.
Shamus
A sled was typically loaded with a "donkey" steam engine and hauled into the woods by rail. It was then pulled to the yard site by horses, mules, or oxen.
They were most commonly used with drums of wire rope and vertical capstans to haul logs from the woods, to load logs at landings, to rig trees, to move themselves through the woods, and even to lower cars and heavy equipment down inclines.

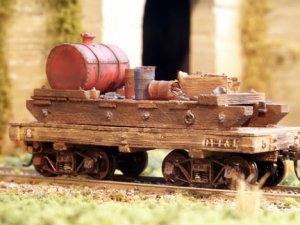

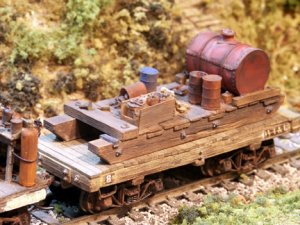

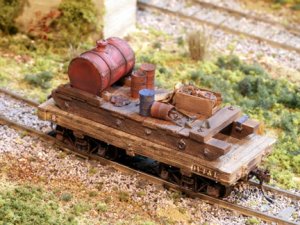

I didn't model the sled in the photos below with an engine (sorry, Shamus
), but one is in the plans.
Attachments
lighthorseman,
I can give you a few dimensions which may help.
skid length= 14'-15'
skids=12" X 12"
boiler diameter=39" - 42"
boiler height (to top of stack)=12'
boiler height to beginning of taper to stack=7'
boiler, winches,etc are mounted on 12" I beams bolted to skid
stack diameter=9"
These dimensions are close, there were different manufacturers, so sizes varied somewhat, but this should get you, not just in the ball park, but within the base lines.
Pete
I can give you a few dimensions which may help.
skid length= 14'-15'
skids=12" X 12"
boiler diameter=39" - 42"
boiler height (to top of stack)=12'
boiler height to beginning of taper to stack=7'
boiler, winches,etc are mounted on 12" I beams bolted to skid
stack diameter=9"
These dimensions are close, there were different manufacturers, so sizes varied somewhat, but this should get you, not just in the ball park, but within the base lines.
Pete

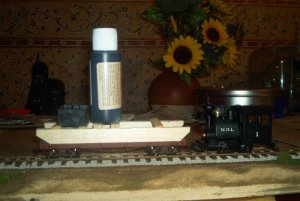

Hi Steve, You know, I wish I would do a little more forethought to my models and mock them up before I get down to the building
I think your idea is a great approach
Nothing critical at all....just wondering though if the skids are perhaps just a bit high??? It may be just the way I'm looking at it and it may be the way its supposed to be. The reason I say that is because 12x12 timber was about as large as could be cut in a backwoods saw mill where a lot of these contraptions were built...or rebuilt 'cause they really took some "hard knocks" in actual use. Just thinking that if the skids need to be higher than that you could use 12x12 for the base and 4x12 or 6x12 for a cap. That might result in a more "rustic" look too.
Anyway, I'm looking forward to seeing the completed model and know that it will be great!!!!
Ain't counting no rivets
Ain't picking no nits
I think your idea is a great approach Nothing critical at all....just wondering though if the skids are perhaps just a bit high??? It may be just the way I'm looking at it and it may be the way its supposed to be. The reason I say that is because 12x12 timber was about as large as could be cut in a backwoods saw mill where a lot of these contraptions were built...or rebuilt 'cause they really took some "hard knocks" in actual use. Just thinking that if the skids need to be higher than that you could use 12x12 for the base and 4x12 or 6x12 for a cap. That might result in a more "rustic"
look too.Anyway, I'm looking forward to seeing the completed model and know that it will be great!!!!
Ain't counting no rivets
Ain't picking no nits
HUGE Skids
Thought you guys might like a taste of logging, British Columbian style!

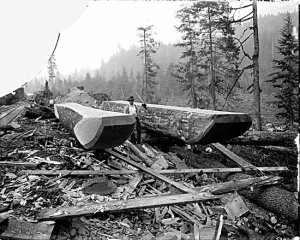

These skids (hope the photo is attached) were cut up by the Capilano Timber Company in North Vancouver. They made skids up to 6 feet in diameter, and up to 40 feet in length! Reeaaalllly BIG!!!
They also used spar trees up to 200 feet tall!!!! I don't think I would've cut it as a tree topper....freak me out!!!
Stan
Thought you guys might like a taste of logging, British Columbian style!
These skids (hope the photo is attached) were cut up by the Capilano Timber Company in North Vancouver. They made skids up to 6 feet in diameter, and up to 40 feet in length! Reeaaalllly BIG!!!
They also used spar trees up to 200 feet tall!!!! I don't think I would've cut it as a tree topper....freak me out!!!
Stan
Attachments
Donkey Info
Steve,
Thought you might be interested in this months (January/February 2003, http://www.ngslgazette.com/issue.htm) issue of the Narrow Gauge and Short Line Gazette. They have an article on how to scratch build an S Scale American Hoist & Derrick Steam Donkey Engine. It comes complete with a scale drawing showing many of the dimensions you are interested in.
Hope this helps!
Stan
Steve,
Thought you might be interested in this months (January/February 2003, http://www.ngslgazette.com/issue.htm) issue of the Narrow Gauge and Short Line Gazette. They have an article on how to scratch build an S Scale American Hoist & Derrick Steam Donkey Engine. It comes complete with a scale drawing showing many of the dimensions you are interested in.
Hope this helps!
Stan
Thanks To All...
Thanks for the input, everyone! I'd like to offer a really big THANK YOU!!! to Drew, who emailed me a whole packet of diagrams and pictures.
Casey, that is one great looking piece of equipment.
...And Stan, I always keep an eye out for the GAZETTE, but it hasn't appeared here yet. Looking forward to the article.
Thanks, everyone!
Thanks for the input, everyone! I'd like to offer a really big THANK YOU!!!
to Drew, who emailed me a whole packet of diagrams and pictures.Casey, that is one great looking piece of equipment.
...And Stan, I always keep an eye out for the GAZETTE, but it hasn't appeared here yet. Looking forward to the article.
Thanks, everyone!
