[Awry_Chaos] 3D Works-In-Progress (WIPs)

[Awry_Chaos]

Since I'm taking a long hiatus from doing paper models and I now have my computer set up I am able to return to 3D modeling using Blender. This thread will feature my 3D WIPs as I have multiple 3D projects going.

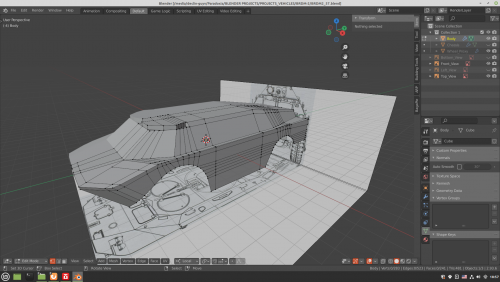

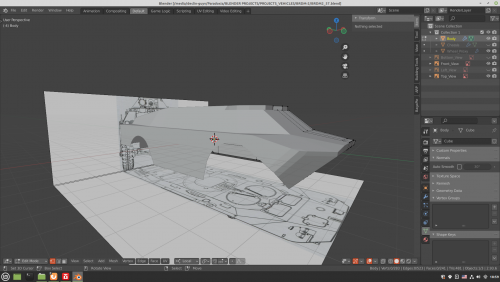

This is a WIP of a model I started a long time ago. It's the BRDM-2, an armoured amphibious scout car from Russia (still used in several countries worldwide).

BRDM-2 - Wikipedia

en.wikipedia.org

So far, I have got the main body done except for the windows and other access panels. After I put those in I will move onto detailing the model. Right now I am sitting at about 500 quads but I expect this number to go maybe into the tens of thousand as I detail everything. My goal is to model a low-poly "game" model and then a mid- or high-poly "studio" model.



[Awry_Chaos]

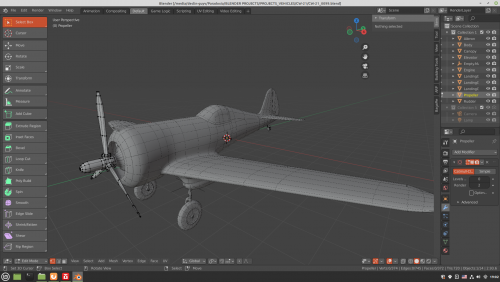

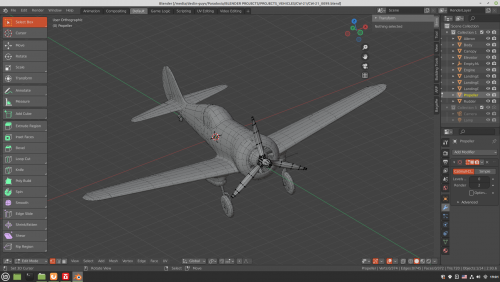

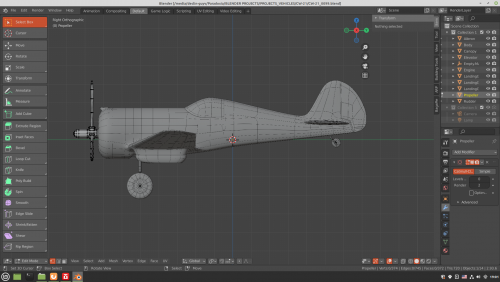

Here is a WWII airplane that I did as my first aircraft model in Blender. It's the Curtiss-Wright CW-21, a pre-WW2 fighter-interceptor.

Curtiss-Wright CW-21 - Wikipedia

en.wikipedia.org

I wanted to prove to myself I could model an airplane in Blender and for my first attempt it turned out well. I plan on texturing this model, adding materials to it, and using it as a test model for rendering in Blender. It sits at about 8,000 quads without subdivision, and about 36,000 quads with a level 2 subdivision. I would consider it a mid-poly model.



[Rhaven Blaack]

Those look GREAT!!!



[Awry_Chaos]

Those look GREAT!!!

Thank you!

Do you know of any good blueprints for the HAMMERHEAD fighter? I'm searching for some on the net. Maybe Revell-Fan has some good drawings.



[Rhaven Blaack]

Thank you!

Do you know of any good blueprints for the HAMMERHEAD fighter? I'm searching for some on the net. Maybe Revell-Fan has some good drawings.

Actually, I have quite a bit of reference for the HAMMERHEAD fighter. I will send you a PM.



[Revell-Fan]

I love them!

Yep, RB is the goto source for Hammerheads! (NO PUNS INTENDED!!! )

However, there is BYC: https://www.byyourcommand.net/cylongallery/index.php?cat=62



[mijob]

Verry nice 3D model, looling forward to see your progress on the BRDM2.



[Strick67]

Nice clean mesh work, these look great.



[Awry_Chaos]

I love them!

Yep, RB is the goto source for Hammerheads! (NO PUNS INTENDED!!! )

However, there is BYC: https://www.byyourcommand.net/cylongallery/index.php?cat=62

Thank you for the BYC link! Rhaven was nice enough to provide me with a couple of reference drawings so I can start modeling the Hammerhead. I just have to collect the reference pictures and then I'm ready to go.



[Revell-Fan]

AWESOME! It's great to see designers at work!
