A plain build of a CRRof NJ, 4-4-0 camelback. A " Scratch-N-Bash "

toptrain1

Well-Known Member
Jan 2, 2007
803
373
58
New Jersey
Plain build of a CRRofNJ class D4 4-4-0c.
* looking for information, photos and Elevation drawings of any of the 5, D4, 4-4-0c camelbacks. These locomotives were built as Class D2 rear cab 4-4-0's, with wagon top boilers in June of 1882. They all went into the Ashley shops and were I quote rebuilt and finished in June of 1898. They came out D4 class, with their original numbers which were, 172, and 174 to 177. They retained these numbers 1 year. The CRRofNJ renumbered them in 1899. There was a renumbering again in 1903.
* Here is a list with the original Baldwin construction number as a reference.
Build #, ____Orig. #_____1898 #_____ 1903 #.
6223 ______176________549_______ 564
6224______177 ________550_______ 561
6225______174 ________547 _______565
6227______175 ________548 _______568
6250______172 ________545 _______567
* Any information on these locomotives would help me.
Frank

A link to a photo of one at North East railfan. This is how I hope mine will look when done.

http://www.northeast.railfan.net/images/cnj567s.jpg

Last edited:

toptrain1

Well-Known Member
Jan 2, 2007
803
373
58
New Jersey

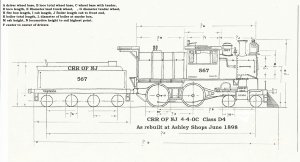

* I can not find a Elevation drawing yet! This is a elevation drawing I have made to show how it would look. The only measurement I know is the driver size of 69". I need a good drawing or a photo directly from the side.
frank

*** Click on drawing to see a larger size drawing.


CRRofNJ D4 4-4-0c.jpg


Bill Nelson

Well-Known Member
Dec 15, 2008
2,599
326
78
Clarksville Tn
Verrrry interesting, not the strangest rebuild of a 4-4-0. A Narrow gauge outfit in northern California took an american apart, put the boiler back on the frame backwards (they burt oil, as required very early by California law, both to suport the oil industry, and to minimize acidental fires ); and made a cab forward out of it. Keith Wiseman sells a parts kit (no motor) http://www.locopainter.com/store/product.php?id=280 I'm sorely tempted to build one, but it would look out of place on the TN/ GA/ NC border, heck it would look out of place anywhere. Thanks for sharing your work reproducing these oddities.


Bill Nelson

Well-Known Member
Dec 15, 2008
2,599
326
78
Clarksville Tn
That cab forward is just plain wierd. i've considered getting the patrs to kitbash a normal HOn3 4-4-0 out of them, but fortunately found a FED 4-4-0 first. I recently also got a NWSL Spartain 4-4-0 in On3, and a massive pile of castings. it will be a massive project, so besides detailing it to the nines; I will want to paint it for the 1880 glory days, which should be an awesome challenge; since I'm more used to painting for dirt than shine.


zathros

-----SENIOR----
Administrator
Moderator
Apr 6, 2013
11,018
6,151
228
* I can not find a Elevation drawing yet! This is a elevation drawing I have made to show how it would look. The only measurement I know is the driver size of 69". I need a good drawing or a photo directly from the side.
frank

*** Click on drawing to see a larger size drawing.


View attachment 132012

If you could give me one dimension in that drawing, I could give you the rest. Even if it is the diameter of just one of the wheels. Mind you, all the dimensions would be based off of it, but they would be relative to that dimension. Once done, and changes could be done to the whole drawing through parametric scaling. Let me know. I'll do it for you. ;)


toptrain1

Well-Known Member
Jan 2, 2007
803
373
58
New Jersey
IMG_1538 s.JPG IMG_1554 s.JPG What I did do was this I had a perfect side view of this locomotive. I did know the spacing of the drivers. I used my scale print. I put in the photo, add the one measurement I had. Selected HO scale and printed a scale photo in HO scale which fit on a letter size page. I was able to take other measurements directly off of the print.


Gandolf50

Researcher of obscure between war vehicles...
Moderator
Jan 28, 2013
1,254
1,492
96
New Mexico USA
Only thing I found was ,of course, from the "Locomotive Engineer", on the locomotive for the Black Diamond Express, Camelback #668
locomotiveengine09hill_0831.jpg locomotiveengine09hill_0834 (1).jpg locomotiveengine09hill_0832.jpg


zathros

-----SENIOR----
Administrator
Moderator
Apr 6, 2013
11,018
6,151
228
Geez, you're making your own trains!! The bar is really set high with you guys!! :)
