1960 Plymouth Valiant build thread.

Mark Crowel

User of old school drafting tools; no CAD.
Jul 28, 2007
137
63
31
68
Southwest Michigan.

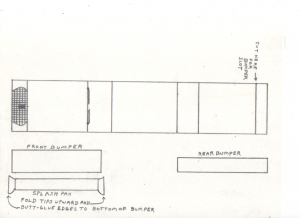

Final scans. I noticed that on the detail sheet above, I forgot to draw the horizontal lines on the grille. Here it is again, along with the patterns for the "blade" style bumpers, and the front splash pan. The edges of the front bumper extend about 1/16 inch beyond each side of the splash pan. For any questions about building my models, please feel free to send a private message.

Scan_20200829 (3).png

  • Like
Reactions: Revell-Fan

zathros

-----SENIOR ADMINISTRATOR----
Staff member
Administrator
Moderator
Apr 6, 2013
11,537
6,620
228
I welded the gas tank on my '73 back together. The reason was that it has a drain plug, and the replacement ones don't have that. I filled it with water (then drained it) before I welded it. It came out great, and cost me nothing. :)

  • Like
Reactions: Mark Crowel
