You're Welcome at the LHR Railroad

Discussion in 'HO Scale Model Trains' started by Rusty Spike, Oct 17, 2006.

  1. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    The plan is to document the home layout from start to probably-never-finished.

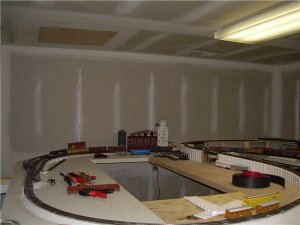

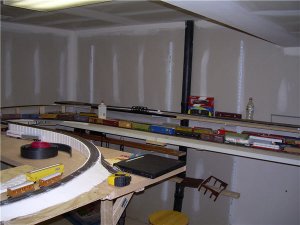

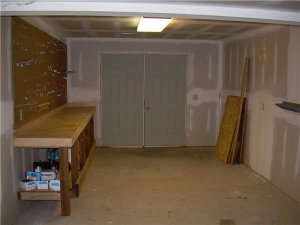

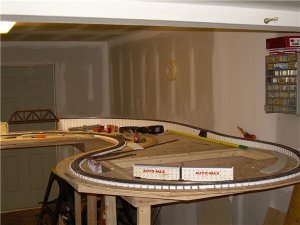

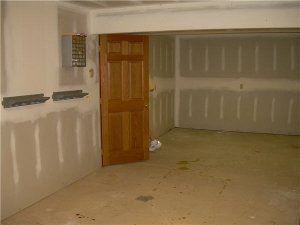

    I'll start out with a few pictures 'cause I think we like those most. I'll put a few words along the way to avoid a major dump in the beginning.

    Attached Files:

  2. green_elite_cab

    green_elite_cab Keep It Moving!

    Joined:
    Apr 4, 2005
    Messages:
    1,943
    Likes Received:
    0
    uh oh, thomas is missing in action!

    Nice work so far!
  3. Nazgul

    Nazgul Active Member

    Joined:
    Jan 23, 2006
    Messages:
    1,040
    Likes Received:
    0
    Rust Spike
    Nobody can say you haven't been getting your rolling stock ready!:thumb:
    That layout looks great! I'm hoping you have more pics that show how you got to this point. Could you post the track plan?
    I read your biography: father to 4 and husband to 1
    I like that. I also noticed that trains came after your family in your list of "hobbies"
    got your priorities right:thumb: Look forward to more pics.....and words
  4. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    Layout Goals:

    1. Have fun with the kids - planning, building, weathering, operating.
    2. HO scale semi-prototype of our local scene - UP with local yard with moderate switching and several industry jobs and freights that drop and add cuts of cars at the yard.
    3. Some fictional through trains of intermodal and coal unit trains
    4. Interchange and shared track with DM&E
    5. High quality scenery and detail but at a reasonable cost
    6. Derailment free operations

    Attached Files:

  5. CCT70

    CCT70 Member

    Joined:
    Jun 25, 2003
    Messages:
    543
    Likes Received:
    0
    He's busy "shunting" the hump eh? sign1

    Hey! I didn't see any beer.....:D

    Great train room, I'm envious.
  6. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    I have a ton of respect for Thomas, even though he's not very useful on this layout. It was my son's interest in Thomas that helped get me back into model railroading. I sold all my radio control car racing items (what do you call the stuff associated with your current addiction?) and we've been modeling for 4 years now - small section in a basement, then the whole basement, then moved to CA where we had a shelf layout and now back to MN where this room was the previous owner's boat building shop.

    I can't say my wife understands my intensity when it comes to a hobby, but today is 14 years we've stayed married! Heck, every moment in the train room is time I'm not annoying her in person - perhaps that part of the secret. ;-)
  7. CCT70

    CCT70 Member

    Joined:
    Jun 25, 2003
    Messages:
    543
    Likes Received:
    0
    Congratulations on your anniversary. By the way, I call my addictions "hobbies", my girlfriend calls them.... well, never mind, this is a family forum....

    At least she's starting to show interest in the model railroading and is getting involved. She loves doing scenery.
  8. planeshavings42

    planeshavings42 Member

    Joined:
    Apr 13, 2002
    Messages:
    317
    Likes Received:
    0
    WOW, Rusty Spike, you've done an aufull lot in 4 years, nice work. I couldn't help noticing in the 4th pict from the top, in the lower R/H corner, it appears to be a Laptop, do you intend to run your layout by computer? Had to ask, as I intend to when I get that far.
  9. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    Planeshavings - the laptop is for my real job - I was on the way from upstairs to the downstairs office and stopped off in the train room to snap the photos.

    In the long run I would like to have automated train running but it is a few years away.

    What benefits are you looking for by doing computer controlled operations?
  10. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    I've been running trains on the track for a week or so and have discovered significant issues despite my best efforts to put down smooth running track. Vertical easements, actually, the lack of them, hurt me in several spots. I had transitioned from 2% grades to flat before and had few issues without having to knock down that "edge". I have some 4% grades and that abrupt transition to flat throws couplers out of alignment and trains unhook.

    Also planned to have the mainline run around the room in a loop where it was visible most of the time. This wasn't working for me either as I really want to create the impression of a long train arriving in the yard area, doing its business and then leaving town not to be seen for some time again.

    The yard worked out better than I hoped. I really like the 3 way switch into the yard as the ground throws are in spots that make sense for routing the cars. I found that having every yard track exit the other end was not necessary and cost me some storage space.
  11. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    I've now re-drawn the track plan to address these issues.

    Main goals here:

    1. stage trains outside the train room
    2. have a double track mainline where none of the return trip is visible (it will be routed beneath the layout near the front edge for easy access).
    3. flawless train running on the main with very few turnouts and large turn radii
    4. 2% or less grade on all mainline
    5. operations - inbound freights with class I power drop off and pickup cuts from the local yard
    6. local yard work to tear down and build those cuts
    7. local road crew to service various industries that feed the yard (grain, flour, sand, canned veggies, scap metal, metal supply, veggie oils and corn sweetners)
    8. add some ficticious coal and intermodal trains that don't stop as they pass through town
  12. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0

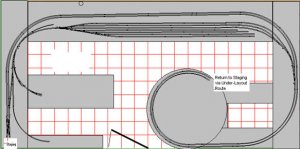

    Modified Track Plan

    Here's the track plan: square = 1 foot

    Attached Files:

  13. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    Welcome back after a few months . . .

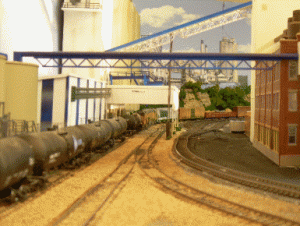

    I made a push in the last couple of months to get some scenery done. What you see is in the lower left corner of the track plan in the previous post. It's a mix of scratch built and other familiar structures. I've been working on better photography with help y'all here - some progress but better shots are ahead of me. Excuse the lack of ballast, etc. but you can get a feel of where I'm going . . .
  14. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    Welcome back after a few months . . .

    I made a push in the last couple of months to get some scenery done. What you see is in the lower left corner of the track plan in the previous post. It's a mix of scratch built and other familiar structures. I've been working on better photography with help y'all here - some progress but better shots are ahead of me. Excuse the lack of ballast, etc. but you can get a feel of where I'm going . . .

    Attached Files:

  15. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    Some rocks

    Well, light weight spackle and craft paint anyway . . .

    Attached Files:

  16. Spawn of Chaos

    Spawn of Chaos Member

    Joined:
    Jan 16, 2007
    Messages:
    307
    Likes Received:
    0
    Double post ftw.

    Nice layout! Good work all around! I like the plan, looks very solid and fun to work with. Good job!

    Oh, and:

    Good luck with that.
  17. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    Thanks SoC - no progress lately - work, work, work.
  18. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Excellent progress though...I'm impressed by your push to weather so much! :)
  19. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    :eek: Wow, looks cool, you are going to have a busy time switchin' all them wagons!!
  20. Rusty Spike

    Rusty Spike Member

    Joined:
    Dec 5, 2003
    Messages:
    155
    Likes Received:
    0
    The push to weather so much preceded my skill in doing so. ;-)

    My kids love to weather the cars so I let them have full and free creative license. My son is big into masking and painting patch panels on boxcars and covered hoppers. Never has so much paint been sprayed in such a small area. One of my daughters always points out the shiny new cars in the real trains we see and says "see dad, not all cars are weathered". She's 7 and all opinion.
