    Hello,
    Does anyone know a web site for ideals on how to wire up a layout? I can't even find a place to buy a book on the subject.
    All will be helpful
    Joe
  2. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    630
    Likes Received:
    0
  3. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    6,779
    Likes Received:
    0
    Joe - Let me check in my "archives" - I may just have a book for you.
    I'll e-mail you before Wednesday. Ok?? :D :D

    ~~ Mikey
  4. YakkoWarner

    YakkoWarner Member

    Joined:
    Mar 11, 2001
    Messages:
    298
    Likes Received:
    0
    try going here:
  5. pupparo

    pupparo Member

    Joined:
    Jul 13, 2001
    Messages:
    51
    Likes Received:
    0
    Once agian the members of the GAUGE has come thru.
    Thanks to all.
    Joe
  6. CSX6638

    CSX6638 Member

    Joined:
    Jul 24, 2002
    Messages:
    134
    Likes Received:
    0
    Atlas publishes a book " The Complete Atlas Wiring Book", Book #12, it sell for $5.95, it's a good place to start. You can order direct from Atlas or pick one up at your LHS.
    CSX6638
  7. Gavin Miller

    Gavin Miller Member

    Joined:
    Aug 4, 2002
    Messages:
    225
    Likes Received:
    0
    Joe,

    Here's my advice on wiring:-
    Keep it SIMPLE by keeping it NEAT!

    Don't be tempted to use any old bits of left-over wire you happen to have hanging around. Colour-code all your wiring (if that means buying new stuff - do it! It will be a LOT easier to trouble-shoot later on when you've forgotten which wire went where).

    And don't scrimp on wire by taking the shortest possible route - eg diagonal criss-crosses. Lay it out LOGICALLY - once again, it is far easier to trouble shoot later on.

    Avoid hanging wires which can get snagged. Lots of such wires lead to "bird's nest" wiring!

    Use terminal blocks liberally - they make it easier to isolate problems.

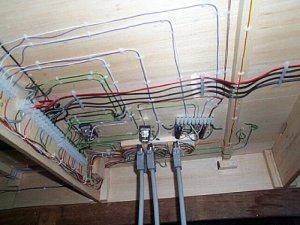

    Here is a photo of the wiring under one of my NTRAK modules to illustrate the point.

    The purple/white wire combinations all lead to switch machines. The green/black wire combinations are track feeders to the yard tracks.

    Gavin Miller

    Attached Files:

  8. stary

    stary Member

    Joined:
    Jul 23, 2002
    Messages:
    85
    Likes Received:
    0
    buy a copy of the Kalmbach book "Easy Model Railroad Wiring". It's exellent!!
