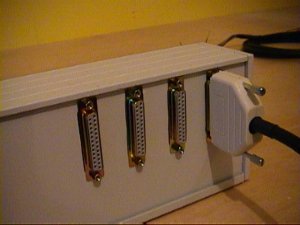

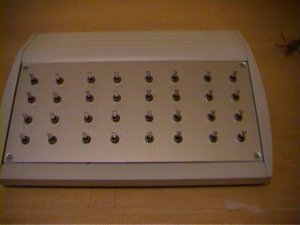

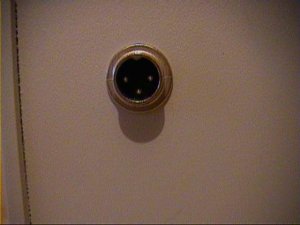

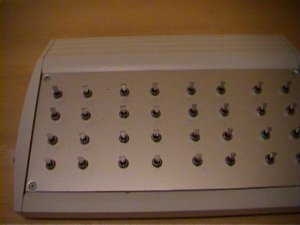

Hi heres a few pics of my point controll unit i was bored and just threw this to gether as you can see i hv used 21pin H/D Plugs for the power from the unit to the points motors and a 5 din plug for the power input this units give you 4 x 8 banks of switches for point or lights its user friendly and neat and tidy for the cables.mike


Attachments

  • points control box 1.jpg
    points control box 1.jpg
    25.8 KB · Views: 129
  • points control box 18.jpg
    points control box 18.jpg
    31.3 KB · Views: 130
  • train 23.jpg
    train 23.jpg
    31.4 KB · Views: 129
  • points control box 13.jpg
    points control box 13.jpg
    33.3 KB · Views: 128
  • points control box 3.jpg
    points control box 3.jpg
    25.4 KB · Views: 127

CalFlash

Member
And people say DCC turnout control is confusing and complicated!

Nice neat work but I would hesitate to use something like this to throw turnouts as finding which is which would be a PIA. Use for accessories (lights etc) seems fine and this would be a good solution. I prefer turnout controls on some sort of track diagram preferably near the actual trackage.
