    Today I started to scratch build the first building that really existed for my Downtown LA layout: the Wheeler Machinery Company. It was located on San Pedro St. near downtown LA. Here is a link to a photo of this structure, which was built in the late 1930s: http://www.wheelermachinery.com/wheeler_1950lg.jpg .

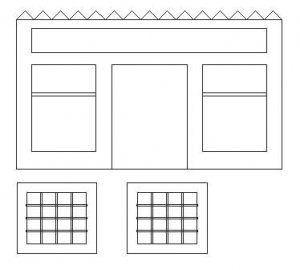

    First, I did a scale drawing of the front wall on my computer to act as a cutting template.


    To make a long story short, I managed to build the front wall this evening.


    More to come :wave:
  2. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Wow!! You're off to a GREAT start! :thumb:

    Val
  3. bigsteel

    bigsteel Call me Mr.Tinkertrain

    Joined:
    Dec 12, 2006
    Messages:
    1,380
    Likes Received:
    0
    WOW,your doin a great job man,i wish i had those scratch building talents.--josh
  4. joesho

    joesho Member

    Joined:
    Apr 30, 2006
    Messages:
    324
    Likes Received:
    0
    wow good job,seriosly :D
  5. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    Great work! Is that paper, or styrene?
  6. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    Now this is what I like about the Gauge. Lots of superb modelers that show me what is possible. That is terrific. Definitely post some pics of your progress!
  7. trainman4

    trainman4 Member

    Joined:
    Jun 25, 2006
    Messages:
    91
    Likes Received:
    0
    Wow

    it's a shame my talent is not scratch building.In fact I don't really have any talents.lol:thumb: :D :thumb: :wave: :thumb: announce1
  8. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    Thank you all for your very nice comments, I really appreciate it :wave: :wave: .

    Galen, it is styrene.

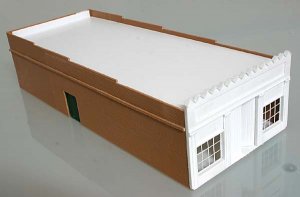

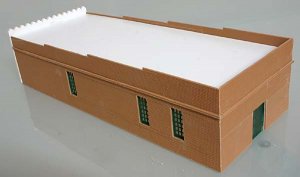

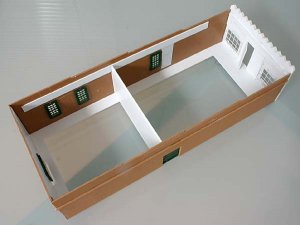

    Here is my update for today – I did the walls. They were quite easy to do, only a few doors and windows.

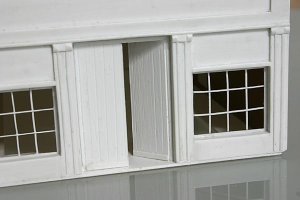

    The front door is made of a piece of .040 styrene. I scribed it with the tip of a knife to make it look like wood. Somebody left the door open :D .

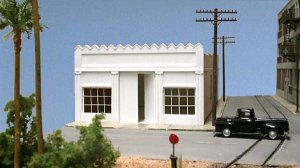

    The next pic shows where the building will be placed on my layout.


    That was enough scratch building for today. More to come tomorrow.
  9. trainman4

    trainman4 Member

    Joined:
    Jun 25, 2006
    Messages:
    91
    Likes Received:
    0
    great

    I hope you don't get a big head with all the positive post but you do real nice workannounce1 announce1
  10. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    WOW! This is absolutely wonderful! I didn't know you were modeling LA in the 1950's..I thought it was Chicago fore the longest time! :rolleyes: I love it! Can you build one for me? ;) (Or at least list the materials, and a reasonable scale drawing with measurement.. or IS that full HO scale?) In any case VERY good job!

    Also...who makes those switch stands? (red circular target) I need about 30 of 'em, so where did you get yours, and for how much?
  11. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    That is downright superb. Are those windows made from styrene strip glued together, or did you cut them out of a piece of sheet styrene?
  12. joesho

    joesho Member

    Joined:
    Apr 30, 2006
    Messages:
    324
    Likes Received:
    0
    wow,not to mention you do good work....and FAST!!!!
  13. ocalicreek

    ocalicreek Member

    Joined:
    May 4, 2005
    Messages:
    838
    Likes Received:
    0
    That's a very distinctive structure, for just being '4 walls'. Kinda like the plain brown boxcar - no such thing when based on a prototype. It will definately make a good impression (along with all the rest of your modeling) on any who see it. Fine work, and thanks again for sharing.
  14. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    trainman4, that won’t happen – I am my harshest critic. I am glad you like it.

    Miles, you are right, the story of my layout started in Chicago, but I was never content with the right side of my layout and could not find the right Chicago structures for it, so I nearly dismantled the whole layout. But then I found pictures of this ATSF downtown LA switching area on Bob Smaus’ website ( ATSF Switching the Patch ) and I knew, that’s it. So my layout took the trip from Chicago to LA – all the way :D . train97
    I dismantled the right side of my layout, rearranged the track, changed the ground cover on the left side and here we are. You could say, I’m doing some prototypical freelance modeling of downtown LA now :D . It is only a small shelf layout and I am going to have 12 structures on it, half of them freelance, the other half structures from LA (in HO, of course :) ). I might even replace some of the freelance buildings later on, if I find some more cool LA structures.

    The footprint of my Wheeler Co. is 5" x 12". I only did the drawing of the front wall – it is full HO scale. The other walls are quite easy to do and the height and width of the building are determined by the size of the front wall anyway. The length of the building is determined by the space available on my layout.


    Miles, if you want to build this structure, I could send you this drawing as a PDF file. You can have the drawings of the signs on the front and side walls as well, but I still have to do them.

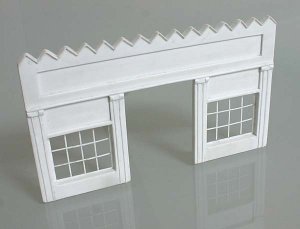

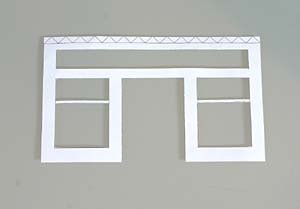

    I printed out the drawing of the front wall and used adhesive spray to glue it to a piece of .040 styrene. Now I could precisely cut along the lines. After cutting, the piece of styrene looked like that.


    Then I glued it to a sheet of .080 styrene. After the glue was dry, I cut the .080 styrene along the edge of the .040 piece, cut out the windows and the door and the zig-zag line of the roof. Then I added the windows and the trim.


    The switch stands are made by Central Valley, they are $ 1 ea. I got mine from Walthers: Walthers Model Railroad Mall -- product information page for 210-1604 .

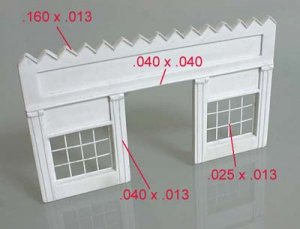

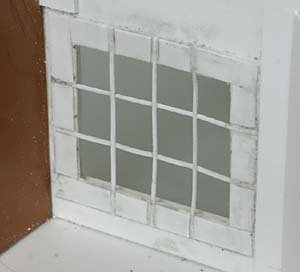

    Gary, I tried to cut the windows out of a piece of .013 styrene. I managed to do the first without any problems, but the second went totally wrong. After the third attempt failed, I had enough :curse: . I cut thin strips of .013 styrene, glued them to the backside of the frames and closed the gaps between the strips with some styrene.


    joesho, thank you. :wave:
  15. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    Galen, thank you for your nice words. To be honest, without this prototype picture I wouldn’t have dared to build a structure like that. Only one door and no windows in such a long wall? No, can’t be prototypical :D .
