What I Been Up To Lately:Passenger Station Diorama

Discussion in 'HO Scale Model Trains' started by TomPM, Jun 11, 2004.

  1. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

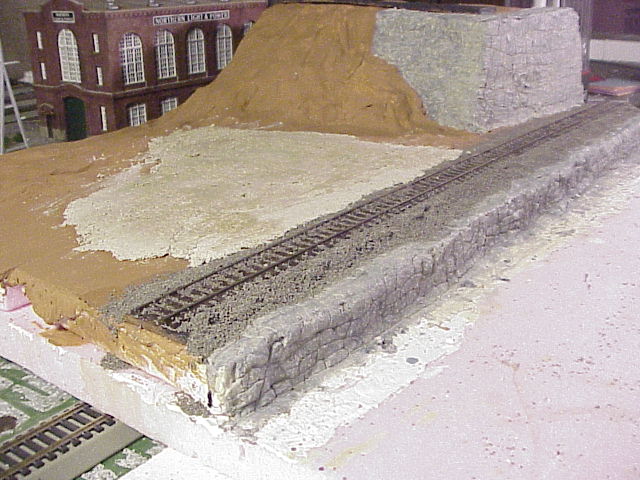

    When I went to permanently place the station on the diorama I realized I had a problem. The area for the station was not a s level as I thought. I used WS Mold-A-Scene to smooth out the area.

    [​IMG]

    Coming up later is adding the access road and the greening of the diorama.
  2. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Great work Tom... It is always noce to see what can be done with so-called "lower-end" buildings. It looks excellent! :)

    Did you brush paint the station, or is it done with an airbrush?

    Andrew
  3. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks Andrew for the compliment.

    I airbrushed the building walls (cream and green). The roof was done by "leopard spotting" with a brush. The base was painted by brush.

    Later today I will be posting the access road and greening progress and that should bring the diorama posting up to date.
  4. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    It has been a few days since I posted anything here Now to finish bringing this topic up to date to the point of where I’ve stopped work on the diorama. I need to get to the LHS to get some supplies on payday.

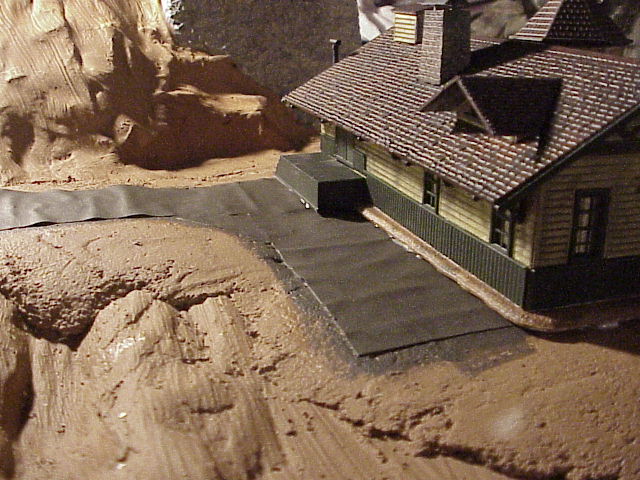

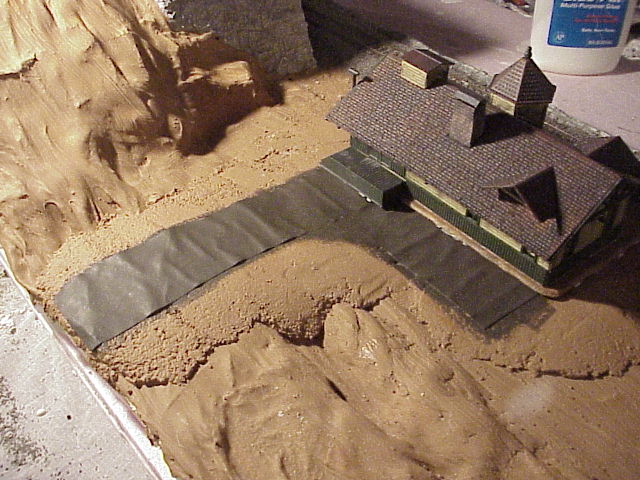

    I decided to try sandpaper to create the access road for the station. I cut the paper for a 16 feet wide road. I glued the paper down. When it was dry I painted it with Folk Art Dark Gray.

    After the paint was dried I glued down the station building.

    [​IMG]

    [​IMG]
  5. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

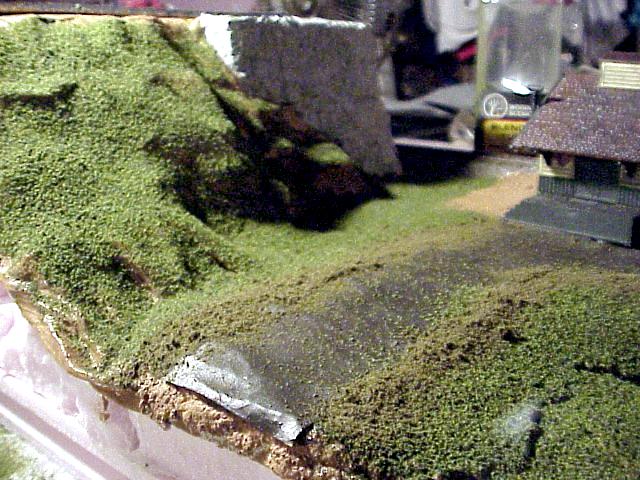

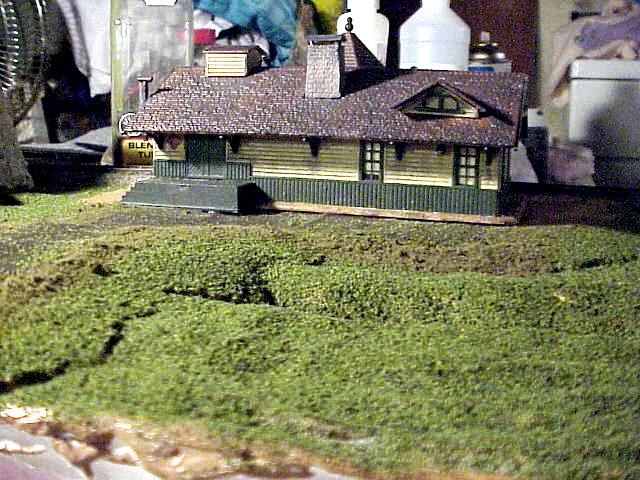

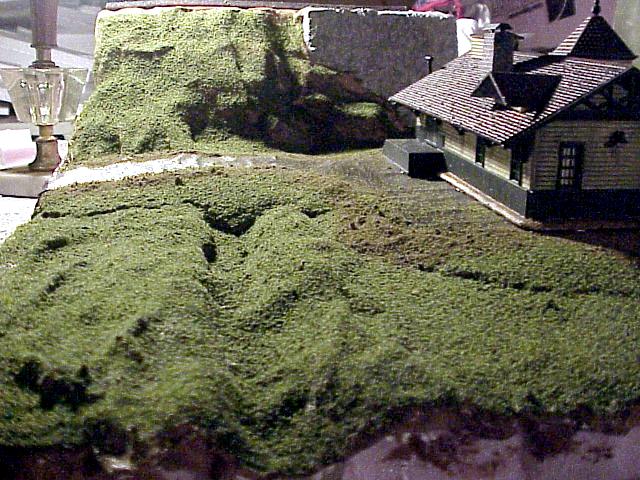

    Next I added the ground cover. I used WS blended turf. Along the roadway I used WS turf in Earth color to simulate something of a shoulder or dirt build up area.

    [​IMG]

    [​IMG]

    [​IMG]

    The areas that I did not place any ground cover areas I will use WS cinders on to simulate the loading area. Also I need to get some bushes and underbrush to add in different areas. Some of the other stuff I would like to do is to add a culvert or pipe in the ditch, and add trees after I make them.
  6. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Here is a shot I could not resist taking.

    [​IMG]

    More to come after I do something.
  7. RioGrande

    RioGrande Member

    Joined:
    Jun 10, 2004
    Messages:
    158
    Likes Received:
    0
    Tom,

    That Folk Art Dark Gray paint looks like it would work well for stream beds where the water is deep enough to be dark. It seems a bit too dark for roads, especially a lighltly used road that might be faded from age and neglect. You could alway air brush it to a lighter color for sun fading etc.
  8. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    RioGrande

    You are right. The more I look at the more I am not thrilled with it.

    BTW thanks for reminding me. I forgot to mention that I need to weather the roadway. I am not sold on using the sandpaper. I had read a few things about it and thought this would be a good spot to try it.

    Anybody know how to model a pothole patch?
  9. RioGrande

    RioGrande Member

    Joined:
    Jun 10, 2004
    Messages:
    158
    Likes Received:
    0
    I'm no expert, but I'd try drilling a few shallow holes, and then fill in with some kind of putty or spackle. That would give the patched look, then paint the patch with a dark gray color or whatever patches usually look like.
  10. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

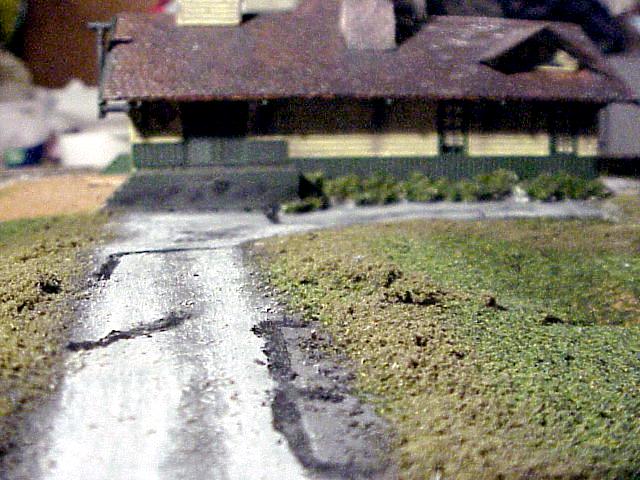

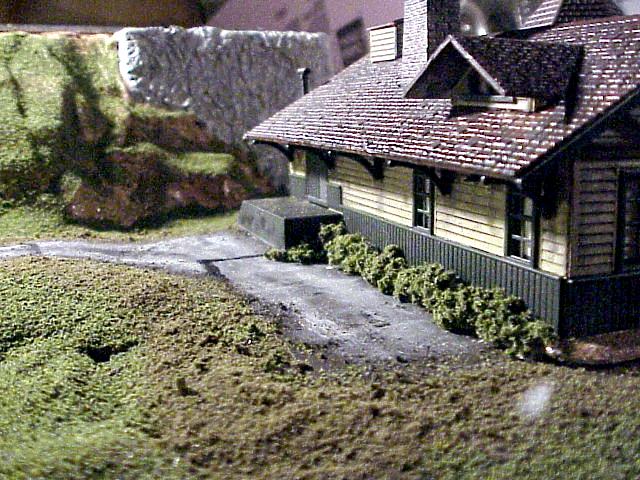

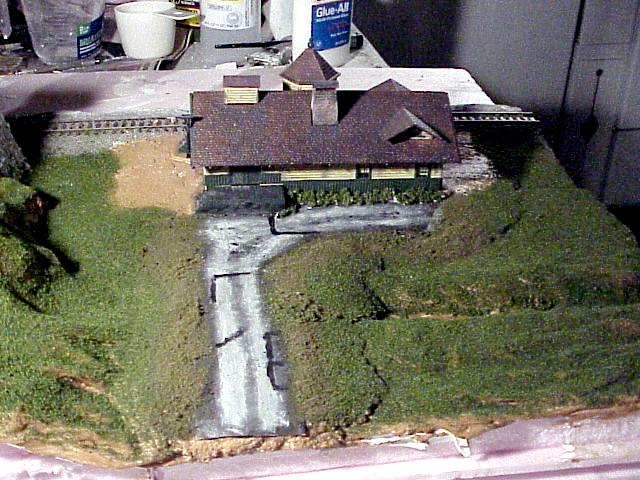

    I weathered the access road. I dry brushed Folk Art Charcoal Black over the road except for the edges. I then came back and dry brushed Folk Art Light Gray. Next I added some crack sealing at some joints with Folk Art Licorice. I also attached some bushes along the back station building.

    Here is how the progress looks now.

    [​IMG]

    [​IMG]

    [​IMG]
  11. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    :thumb: Great job Tom, may I sugest now to take some black or dark gray chalk powder and brush over the entire road, it makes it all blend together better, also a good way to make cracks in the road is to use a black sharpy pin (the skinny end) but don't overdue it. Looking really good. :thumb: :thumb: Jim
  12. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,227
    Likes Received:
    0
    Looking good Tom. :thumb: All ready now for the Grand Opening and for it's first arrival. :D

    But where's the Mayor to cut the ribbon, brass band, bunting, and dancing girls?? hehehehe :D :cool:
  13. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks guys!

    Jim thanks for the suggestions. I was thinking about the Sharpie. Now I just have to figure out what my daughter did with it after she marked up all her stuff for her girl scout camping trip last month.

    Woodie
    I'm not quite ready for that grand opening yet. I still need to get some cinders to put down around the station. I tried to get to the LHS tonight but when I got there they were closed. School is out so they started their summer hours.
  14. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Fantastic work Tom!!!!! I love it :wave: :thumb:
  15. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Chris thanks for the compliment!
  16. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Looking goooooooooood Tom!
  17. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks Tyson!

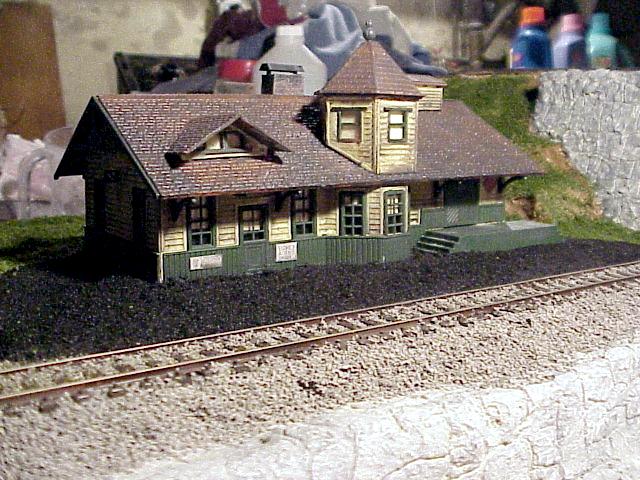

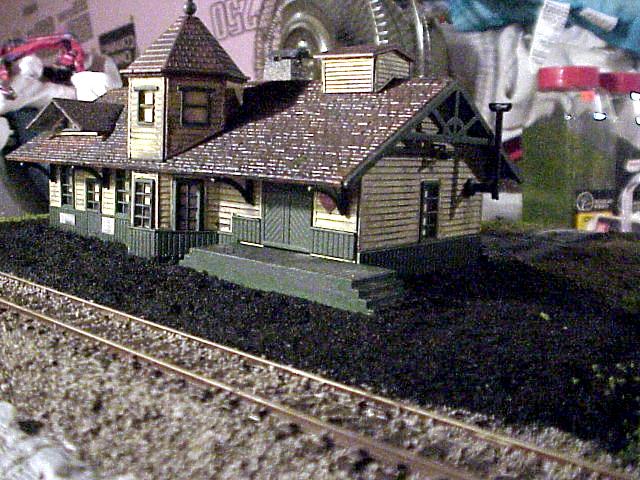

    Since I finally made it to the LHS I was able to work on the passenger station diorama some. I added WS fine cinders around the front and sides of the station. I also added a layer of WS medium green course turf to the green areas. Next up is trees and brush and some benches.

    [​IMG]

    [​IMG]

    [​IMG]
  18. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Coming right along Tom, really looking good. :)
  19. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Again thanks Jim!

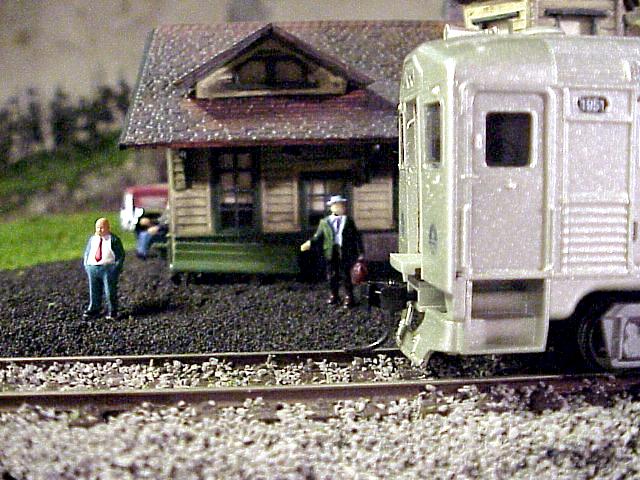

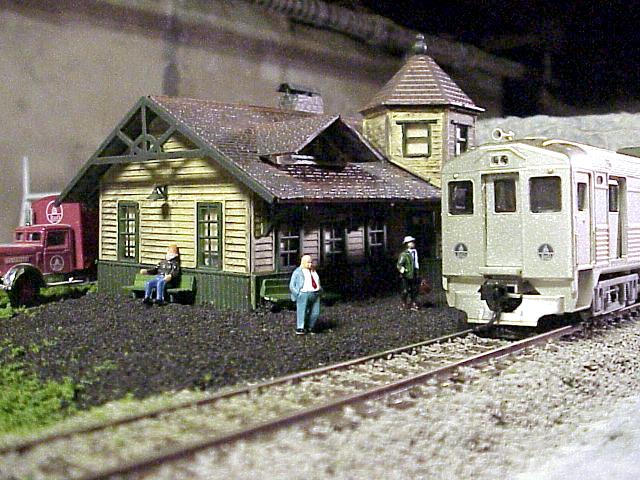

    I have been fiddling a little with diorama lately. I have not added anything permanent recently. I have been trying different set-ups with some details and here a few results.

    [​IMG]

    [​IMG]

    I hope to start making trees shortly and planting them along with underbrush.
  20. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Hi Tom,, what happed to your pics?? Am I the only one who cannot see them??
