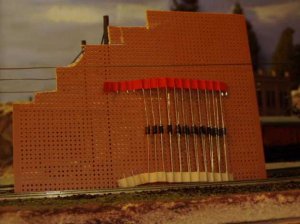

    This is the diode # that we use for direction light controll, cheap and cheerful:D

    Attached Files:

  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Here are the little beggers . Behind is the insulated board.

    Attached Files:

  3. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

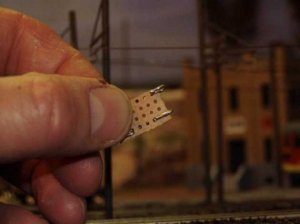

    This is the assenbled light direction controll. Make sure the white band is away from the bulb lead, then it will let power through when in that direction mode and stop power going through when in reverse mode. The other diode will do the opposite.

    Attached Files:

  4. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

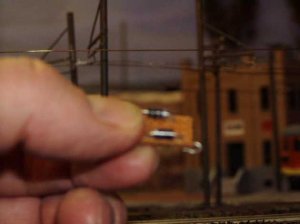

    and a pic of the back side;)

    Wiring.
    As you know you have two pickups on the motor we use one side for all avalible pick up off all wheels.
    The other side picks up power from the pantograph
    Lights.
    Two leads off each bulb.
    one of each takes power from the pantograph.
    the other leads must pass through the diode`s and then to the wheel pick up on the side of the motor.

    Attached Files:

  5. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

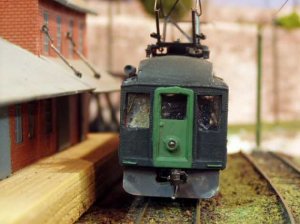

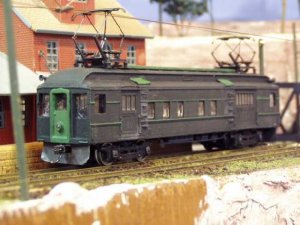

    Sitting in the yard after a good first test run. showing off her horn wiper on the window climbing rails on the side to the roof walk

    Attached Files:

  6. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Now I have to try my hand at weathering and then she will be given her roster #:D :D :D
    Hope you can understand it all.
    I will show you Glenns after he gets his hand fixed up.
    Cheers. and happy scratch building.

    Attached Files:

  7. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    That looks great Chris. Thanks for the step by step.
  8. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Looking good Chris. Deffinitly one to be proud of.
    Sorry to hear of Glens hand injury, hope he heals well.
  9. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    Chris, this was (and is) a very interesting thread with your step-by-step explanations. And the result is well worth the effort - a traction combine with a distinct 'face'. Great modeling! :) :) :)
    The funny thing is that this 'face' with a front door looked very familiar to me. :rolleyes: And then I found the Swiss 'sister' of your combine:
    Here in Switzerland in the late '40s the first hi-speed electrics, two truck passenger locos were built. The first series also had a door in the front side, complete with a bellows behind it. The idea was to join it with the passenger cars, so that the conductor could ride in the loco after checking the tickets of the passengers. (Already in the second series this front door was omitted.)

    Now doesn't she look a bit like your combine, although she's 'only' a locomotive? ;)

    Ron

    Attached Files:

  10. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Hi Ron,, and thanks for your kind comments, and that great pic, so glad you liked it.
    YES that is a look a like:D :D :D :D :D
    The doors on the heavy Traction also allowed the operators to pass from one to the other when they ran as a two or three set.
    Also The Traction roads of old often converted coaches to motorised equipment. It was a far cheaper way of refurbishing.
    Now that gives Chris:D :D :D :D A licence to mix and match when I build;)
    Here is an old pic..
    Sacramento Northern. with the similar front.;)
    Have you a shot of the red unit behind Ron????She looks intresting to my eye:p

    Attached Files:

  11. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    Hi Chris,

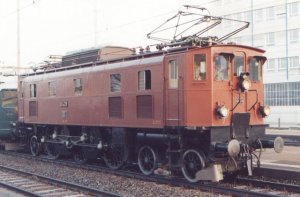

    gladly I send you a pic of the second engine, an 'Electro-Pacific' so to speak! She was built in the '30s.

    Her type designation Ae 3/6 II: A = Top speed 110 km/h (68 mph), e = electric, 3/6 = 3 of 6 axles powered, II = second series. Since she ran on a pass line here in my vicinity, she's got the nickname 'The Trimbach Cab-over-wheel lokey' :D :D :D

    (There were two more series, Ae 3/6 I and III, but with different power arrangements for the driving wheels. This one is by far the most attractive of the three. She is run now and then as a 'museum machine' by the Swiss Federal Railways SBB.)

    If you look closely you see the other one I posted before coupled behind her. Of course both photographs were taken at the same day when they pulled an electro-oldtimer excursion train.

    BTW, the green one is a Re 4/4 I: R (Rapid) = Top speed 125 km/h (78 mph), e = electric, 4/4 = four axles, all powered, and I = first series.

    Hope you enjoy this loco, too. She is one of my favorites - I just love engines with driving rods!

    Ron

    Attached Files:

  12. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thankyou for the picture Ron, She is beautiful;)
    You sure have a great history of Railway to model Ron.:D
  13. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

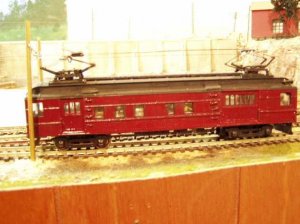

    Thought I would show you the new colour for this interurban:thumb:
