weathered gondala

Discussion in 'Photos & Videos' started by spitfire, Jan 11, 2004.

  1. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Ralph's post about Kings Port Steel got me inspired to finish this gondola since KPS is a supplier on my layout.

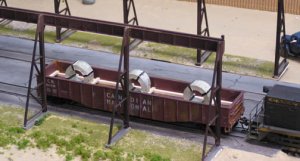

    Here's a view of it heading under the crane for unloading.

    Attached Files:

  2. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

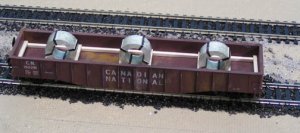

    A top view showing whatever you call those lumber supports (?). I've seen photos of this before and the lumber used is usually brand new, so that's what we have. I made nails with a fine tip marker at the ends of the boards although they don't really show up.

    I got a lot of the rust for this paint job by letting an SOS pad sit in a jar of water for a couple of weeks. It produces a very bright orangey rust which looks like "new" rust. I like the slight texture it imparts.

    Val

    Attached Files:

  3. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

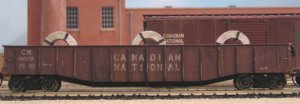

    Here's a closer view of one of the sides. i scratched off some of the lettering before weathering. In the background you can see another dirty old boxcar and behind that the Walthers Machine Shop kit.

    This was a fun little project that only took an hour or so. (Gotta do something while the chat is down!)

    Val
  4. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Oops - forgot the pic!

    Attached Files:

  5. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Excellent work Val.....As always!:thumb:
  6. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Finally a close-up on the lettering. I also lightly sanded with a very fine sandpaper called Crocus Cloth. It removes the paint from the rivets (which I figure would be the first to go) without leaving any abrasion marks.

    Attached Files:

  7. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    That's nicely done Val....chipping away at the lettering was a good touch. Thanks for the tip about Crocus Cloth. Seems to be the perfect tool for the job.
    Ralph
  8. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks Ed and Ralph. I should add that I also used an Xacto knife to scrape at the lettering. Another approach would be to lightly paint with the same colour as the car itself. I'm going to try that at some point too.

    Val
  9. Arlaghan

    Arlaghan Member

    Joined:
    Sep 9, 2003
    Messages:
    668
    Likes Received:
    0
    Very realistic, Val!

    I clicked on the little arrow that takes you straight to the recent post, so the first picture I saw was the last one you posted... I thought it was real! When I Scrolled up to see the rest of the thread I realized that it was not! WOW! :eek:
  10. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    Beautiful work, Val. The wood is called bracing or shoring, and it is used to keep the load from shifting. It is always new wood, but usually the cheapest grade obtainable. When the car gets to the other end, and is unloaded, the wood shoring will be tossed. They use new wood because it is cheaper to have a stack of new lumber to cut to length than it is to pay good wages for someone to scrounge through scraps to find useful pieces of lumber.
  11. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks for the info Russ. This gives me a modelling idea - a stack of discarded lumber beside the overhead crane.

    Alex - fooled ya huh? Cool! The goal of every modeller is to make things look as lifelike as possible.

    Thanks for the kind comments guys.

    Val
  12. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Very nice work Val! :thumb: :cool:
  13. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Great work, Val!:thumb: :thumb: :thumb:
  14. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Really nice work Val, we need other modlers to give us tips on weathering like that. Great job. :thumb: :thumb: :thumb:
  15. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks Tyson, Tom and Jim! I forgot to mention earlier that I also used the good old alcohol and india ink wash on the car as well.

    Val
  16. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Excellent work Val. It just looks soooo real. What did you make the rolls of steel out of?
  17. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
    nice job Val gons always seem to take the worst beating.
    here is a pic befor and after of the method told you about in chat other night.just soak car in soapy water for several days and scrub with old tooth brush.
  18. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Looks like a great technique Jim. Will have to try it on my next weathering job. Thanks!

    Robin, I am ashamed to say I bought them. They've been getting kind of weathered all by themselves sitting on my workbench for 6 months. Just used a Sharpie to "paint" the bands.

    Val
  19. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Cool!

    Very impressive work, Val. A big :thumb: for you. :)
  20. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Very nice work indeed Val.:thumb: :thumb:
    Shamus
