Walz Hardcore Cycles Mille Miglia papermodel

Discussion in 'Everything else' started by loudog49, Oct 20, 2008.

  1. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0
    Fellow Papermodelers,

    I've begun design on a custom chopper papermodel as a tribute to the awesome work of Marcus Walz. If you've followed the TV show Biker Build-off on Discovery Channel, you may have seen the episode where Marcus Walz appeared and built one of his great works of art, the Mille Miglia (1000 Miles) bike.

    Although I'm a general fan of custom chopper style motorcycles, I thought this one was extra special. I've been wanting to make one of my own since I could never afford to buy the real thing.

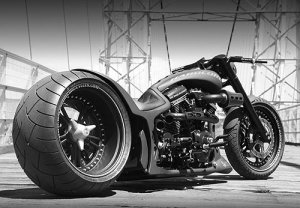

    I got the picture of the real bike below from the Walz hardcore cycles website (beware there are is some adult content so it may not be safe for work).

    http://www.walz-hardcore-cycles.com/

    I'm going pretty high detail on this one but hopefully I won't go too far and make it impossible to build. I'm pretty slow with my 3d modeling so it could be a while before I am ready to unfold. I'm also freehanding this one so it won't be exactly like the real bike (I'm also taking some artistic liberties). My plan is to one day release it as a free model.

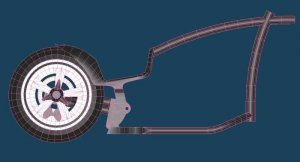

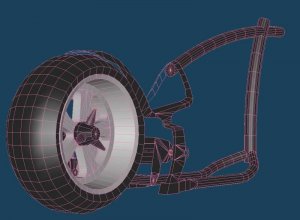

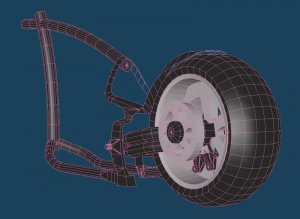

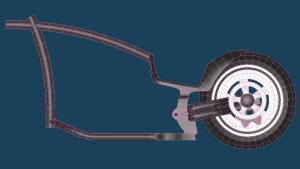

    In the meantime here's my first update (and more to come later. . .)

    Attached Files:

  2. gwssms

    gwssms Member

    Joined:
    Feb 7, 2004
    Messages:
    207
    Likes Received:
    0
    Wow, this is gonna be cool!
  3. zealousy

    zealousy Member

    Joined:
    Jul 17, 2008
    Messages:
    177
    Likes Received:
    0
    I'm sooo gonna wait for this one....I'm a sports bike fan personally but that bike up there looks wicked 8) your 3d model looks promising. Hope you keep a reasonable high detail on the model! Thanks for picking this up!
  4. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0
    I've been working on the engine as of late. Definitely the hardest part of the whole bike I think. I'm trying to get a level of detail similar to the Yamaha MT-01, if I can.

    -LD

    Attached Files:

  5. zealousy

    zealousy Member

    Joined:
    Jul 17, 2008
    Messages:
    177
    Likes Received:
    0
    One tough build coming up! Keep it up....
  6. JT Fox

    JT Fox Member

    Joined:
    Jan 28, 2008
    Messages:
    172
    Likes Received:
    0
    Great project.

    Good luck.

    Cheers JTF
  7. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0
    Thanks for the comments and encouragement. I'll try not to disappoint.:thumb:

    -LD
  8. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0
    Greeting all,

    No updates for a while becaues I took a timeout from this one to finish my Claudio's Bumblebee Robot build. I can't seem to concentrate on anything else until I finish it.

    Will return and finish this bike model afterwards. Stay tuned for updates.

    -LD
  9. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0

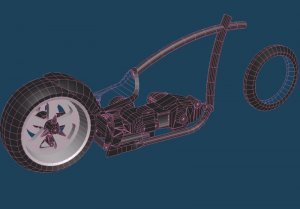

    After a long hiatus, I'm back on the project. I am trying to finish up the engine which I think deserves the most attention to detail so its taking me a while. There's going to be a heck of a lot of fins to glue.

    -LD

    Attached Files:

  10. ARMORMAN

    ARMORMAN Guest

    sweeet....
  11. zealousy

    zealousy Member

    Joined:
    Jul 17, 2008
    Messages:
    177
    Likes Received:
    0
  12. CK Styles

    CK Styles Senior Member

    Joined:
    Jul 11, 2007
    Messages:
    438
    Likes Received:
    0
    Looking very cool. Sorry if this was asked, but is the scale on-par with the Yamaha bikes? Can't wait to see this one built!
  13. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0
    Thanks CK. Its a good question. I think the MT-01 is about 15 inches in length. I'm sort of shooting for that kind of scale (so about 1:5 or a little larger). I think it would be a royal pain to try and build it to any smaller scale. So yeah, it will be pretty big (probably around 15-18 inches in length). I'll make it free to download so anyone can try and scale it down if they feel so inclined. :mrgreen:

    -LD
  14. zealousy

    zealousy Member

    Joined:
    Jul 17, 2008
    Messages:
    177
    Likes Received:
    0
    Would be great if it is big! I used very thin paper on the MT-01. I would've completely destroyed myself with thicker paper :O A bigger scale would save a LOT of pain.......please please please.......
  15. CK Styles

    CK Styles Senior Member

    Joined:
    Jul 11, 2007
    Messages:
    438
    Likes Received:
    0
    Very cool loudog. I am a big fan of the Yamaha bikes and really would love to see more on par with those. I can't wait to build this one. It is looking fantastic. I use around 80 lb paper to keep them sturdy. This promises to be fun!
  16. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0

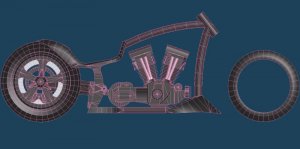

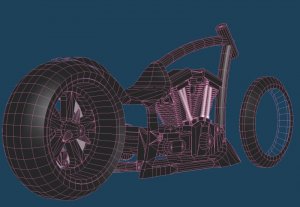

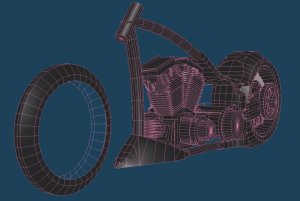

    Sorry for lack of updates. Just too hard to find time to sit down and make progress. Luckily I found a little time this weekend and added the front-bottom cowl. I was a little dissatisfied with the frame when I compared it with some reference photos I have. So I made some modifications to the frame--not sure how noticeable they are in these small photos. I've got to finish the whole engine and drive train and then start work on the front forks and wheel. Still lots of work before I can even think of unfolding... Thanks for your nice comments and patience--it keeps me going. :mrgreen:

    -LD

    Attached Files:

  17. hmas

    hmas Member

    Joined:
    Mar 22, 2007
    Messages:
    216
    Likes Received:
    0
    How did I miss this thread for so long?
    Images look good, will it scale upto 1:1 scale well:twisted: :p
    hey if you ever want to do a H-D FXRT model count me in as well.
    Tony
  18. ltla9000311

    ltla9000311 Member

    Joined:
    Aug 14, 2008
    Messages:
    295
    Likes Received:
    0
    loudog, nice to see an update! I know how things get in the way. Your progress looks good. I've never built a motorcycle, all those tubes on the frame! But I'd be willing to give this one a go when your done. Looking great so far!

    What are you using for your cad program?
  19. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0
    Haha, I am pretty amateur, so I can't guarantee it can scale up to 1:1. I think at that scale all my mistakes and artistic liberties would really be blown out of proportion. If you or someone wanted to build at that scale, I'd be REALLY interested to see the result. :mrgreen:

    I like Harleys (the Mille Miglia has a Screamin' Eagle motor), but I don't know if I'll continue with bikes after this one. I guess it depends on how it turns out in the end.

    -LD
  20. loudog49

    loudog49 Member

    Joined:
    Feb 4, 2008
    Messages:
    38
    Likes Received:
    0

    Well, thanks for the comment. This is my first bike so I'm sort of winging it as I go. I'm using Metasequoia which is the first 3d cad program I learned--so I'm kind of biased. I think I may try sketch-up for future models and see if its any easier than MS.

    -LD
