USS Tarawa LHA1 1/200

Discussion in 'Ship & Watercraft Models' started by barry, Jan 19, 2007.

  1. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0

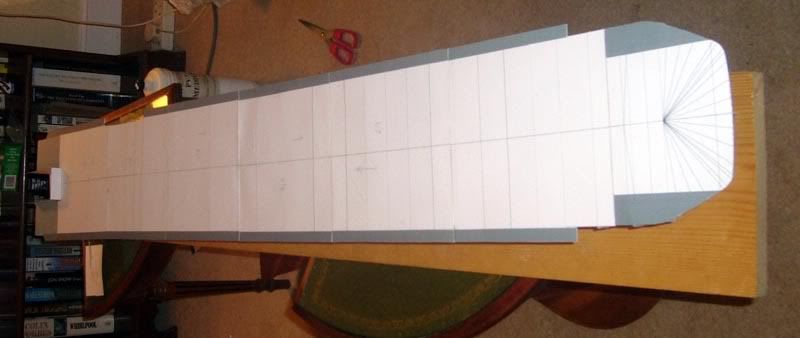

    gantry deck

    main purpose is to give a firm basis for the flying gantries above this one next comes the wall around the edges with added spacers enough to support the flight deck which comes after that. There will be a bit of a pause while I try and find some pics of the holes in the almost hidden top of the hanger and also exactly where to mount the lift to hide the interior. I shall do what John suggested and have a large helicopter on the lift for starters.

    It's good to have a couple of friends who make helpful suggestions you lose sight of silly things like me trying to work out how to fit the gantries on A4 in portrait then John sends me a pic of the flight deck and says by the way I had to put it into Landscape, how dumb can you get !

    Russell yea I sit here wondering how the hell to put the hull sides on let alone the flight deck.

    Kevin retired mate too much time on my hands

    Koolik , Bear thanks for stopping by

    [​IMG]

    [​IMG]
  2. Marko

    Marko New Member

    Joined:
    Jun 1, 2007
    Messages:
    11
    Likes Received:
    0
    hi there mate.
    ive finally taken some time to register on forum.
    nice progress here, i like it! my spee rests for now, i have too much work with those damned gearboxes, perhaps i manage to build it at evening a bit more.

    regards,
    Marko
  3. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0
    Wow, Barry! Gotta say, I keep starting to type a line, but all I come back to is WOW!

    Chris
  4. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    891
    Likes Received:
    1
    Barry:

    I remember a much earlier post of yours looking for drawings of this...

    I love your build of "Tarawa" so far. I follow all of your work with great interest!

    sincerely,

    Your Canadian fan,

    Jim
  5. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Chris and Jim thanks for stopping by as Jim Krauslis would say. Marko nice to see you here hope you will put up a few pics of Spee when you get started again.
  6. Bowdenja

    Bowdenja Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,677
    Likes Received:
    0
    !!!!!!!!!!!!!!!!!!!!

    barry!!!!!!!!!!!

    I just printed out a test of the whole deck with the weathering............................... :-o OMG!!!!!!!!!

    Pictures do not do justice to the size of this master piece you are designing and showing everybody!

    OK.............. When this goes on sale.......... the line forms behind ME!:grin:

    john
  7. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    More girders

    Not interesting but necessary the formers are thin and the addition of a rightangle stiffener strengthens the joint and gives a better gluing area. I prefer this method to laying the card over the top of the formers.

    [​IMG]


    [​IMG]
  8. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Great seeing you back at it, bazzer!

    And with photos!! No small feat, mate.:mrgreen:

    I'm really looking forward to seeing you at the point of adding John's highly detailed and artistic deck to the hull...I guarantee folks here will be blowed away...absolutely!

    Keep at it, mate!

    Cheers!
    Jim
  9. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Stern dock

    Needed a lot of L sections to pull this lot straight but it seems to have worked it may not look much but it's given me a bit of confidence again if was starting again I would have built it as 5 seperate pieces and in thicker cardboard.

    Sorry Jim but logic tells me that the next step after the after deck is glued down is the underwater sections otherwise I will make a right mess of John's flight deck turning it upside down.

    I have got to paint the starboard side of the lower hull with rust as well.

    [​IMG]

    [​IMG]

    [​IMG]
  10. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    OOppps! Guess I was thinking along the lines of a waterline model.:mrgreen:

    Looking great, bazzer!!

    Cheers!
    Jim
  11. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Hull up to hanger deck

    Last picture tonight. Waterline hull is finished as the Flight deck is treated as a very large deck house. Now sitting under the usual load of heavy books which will hopefully keep it free from warping

    The second picture is for John it's stood against a standard door

    [​IMG]

    [​IMG]
  12. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Wotcher, bazzer!

    That view against the door is VERY impressive! Once again, we see how huge this model actually is...HUGE!!

    Keep at it, mate! And thanks for posting update photos; you are making very rapid progress with her.

    Cheers!
    Jim
  13. Bowdenja

    Bowdenja Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,677
    Likes Received:
    0
    :thumb:Thanks Barry! I got a giggle out of that.

    The scoop is I told Barry that even though he has posted some great pictures, I did not feel you guys were getting the actual scale of this beastie!

    I know I did not until after I printed out the deck parts and glued them up.

    If this one doesn't get the "That is PAPER!" remark, nothing ever will!

    This thing is a testament to Barry's design skills!
  14. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    HUll side weathering

    Hi All need some help especially from my paint guru John.

    Does this look somewhere near right I'm trying to copy the pic of Tarawa

    My apologies if I have broken someones copyright

    [​IMG]


    [​IMG]
  15. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    891
    Likes Received:
    1
    Barry:
    I have been folllowing your Tarawa build thread with great interest.

    You are, IMHO, doing a great job.

    Any shade of "haze grey" ought to do: remember that these ships were constantly being repainted....To match the photo, tho, I'd add a bit of pure chromatic white to your PShop mix.

    Regards from Canada,
    Jim
  16. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Underwater hull start

    Hi All

    Just a test run had to stop I absentmindedly set slots in the aft keel spine upside down and I have lost a couple of bits as well. It's getting quite large now I suppose the next thing after plating will be a stand to hold it straight or maybe 2 stands. She beginning to come together now.

    [​IMG]

    [​IMG]

    [​IMG]
  17. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    funny shaped bit

    Hey Jim you know that funny shaped bit that makes the bow flare well it fits here. Just tacked on with bluetack.

    [​IMG][​IMG]
  18. Bowdenja

    Bowdenja Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,677
    Likes Received:
    0
    :thumb:barry!:thumb:

    The weathering looks GREAT! No worry on the copywright that was a US Navy photo that as long as you're not using the picture in a book or something you are OK.


    The hull pieces are going together fantastically! This come from good design!

    Keep the pics comming!

    john
  19. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Wotcher, bazzer!

    Looks to me like you have that hull plating for the bow dead on, mate! It lines up plumb with the former, just like you unfolded it to fit.

    The weathering looks great. I wouldn't have imagined you would see much weathering on an active US Navy ship, but the photo you posted shows a bit of rust along the waterline plate seams...and your part replicates those rust spots superbly.

    Keep at it mate, the hull is coming together quite nicely!

    Cheers!
    Jim
  20. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0
    Barry, you continue to impress! What a monster! Thanks for the update, the progress looks awesome!

    Chris
