USS Tarawa LHA1 1/200

That's great Barry.

Production line is a good term to use. You can feel like a slave laborer putting that many together.

When folks complement my 1/700 USS FRANKLIN, I tell them the 3 squadrons of planes on the flight deck were a completely different project than the ship itself. I'm sure you feel the same way.


barry

Active Member

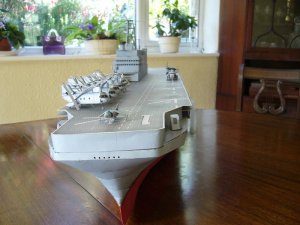

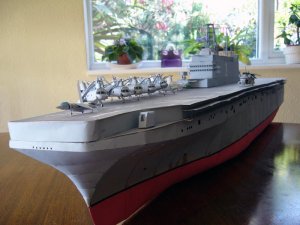

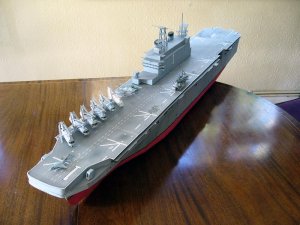

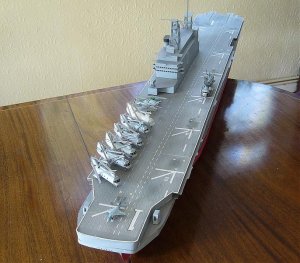

Do you think we need a bigger ship

This is about 30% of the airwings carried by Tarawa getting a bit crowded on deck. You right lads some days it gets a bit mindless building this many. Thanks for the kind words.


Attachments

  • P1020261.JPG
    86.3 KB · Views: 16
  • P1020262.JPG
    82.4 KB · Views: 15
  • P1020263.jpg
    195.1 KB · Views: 17
  • P1020264.JPG
    104 KB · Views: 15

Jim Krauzlis

Active Member
Wotcher, bazzer!

Quite an outstanding achievement, Barry, and more to come, I gather! Those choppers really came out brilliantly, adding quite a bit of interest to the overall project...I don't envy you taking all the time to make up so many little gems, but, trust me, it is well worth it from what I see. So what if it's slow going, it is truly showing admirable results.

As always, I look forward to your further updates as you continue in this amazing project. Every time I recall that this entire project is all scratch built, well, I just have to shake my head in amazement!

Cheers!
Jim


barry

Active Member

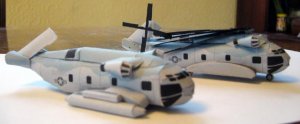

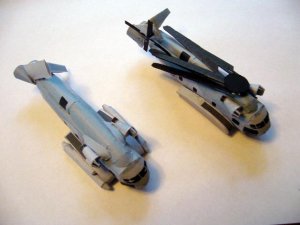

Upgraded CH 53

Engine nacelles are now in the right position, walking strip on the sponson is at the right end and the side pods have been added.


Attachments

  • P1020276.JPG
    45.3 KB · Views: 12
  • P1020277.JPG
    37.3 KB · Views: 7
  • P1020278.JPG
    49.7 KB · Views: 6

airbob

Member
Barry,
Simply amazing creation tho got there! A most magnificent fighting ship!
balloon6balloon6balloon6


Jim Krauzlis

Active Member
Wotcher, bazzer!

Outstanding job on the chopper, and the other parts of the air wing. Actually a wonderful little model project in themselves!

As always, it's a treat to see your progress on this build...keep at it, mate!

Cheers!
Jim


barry

Active Member

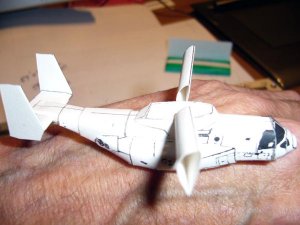

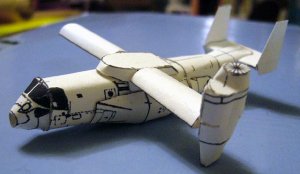

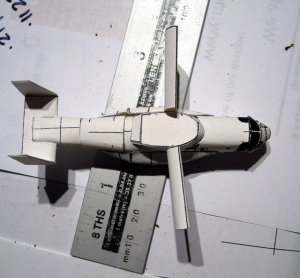

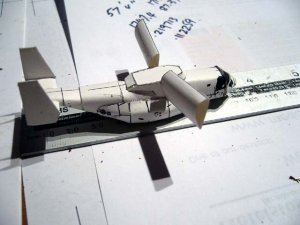

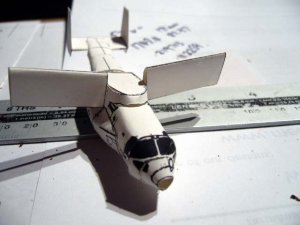

Osprey test landing

The Osprey is a sod to get right but you can look at the third attempt. Tried to fit too many formers in too small a space then got lost where they should fit. I kept one aft of the cockpit and threw the rest away and butt jointed it wanted to see what it looked like. Please ignore the standard of drawing on the parts. It's shape is enough to make it distinctive. Still a good clean up and it may look ok. Needs the obvious bits as well.

I guess if it is coloured white with some red bits on it we might just get away with explaining it's presence on the deck.

A belated thank you for the kind words !!!!


Attachments

  • P1020324.JPG
    50.1 KB · Views: 8
  • P1020328.JPG
    52.9 KB · Views: 6
  • P1020329.JPG
    47.5 KB · Views: 8
  • P1020330.JPG
    42.1 KB · Views: 10
  • P1020331.JPG
    71.2 KB · Views: 11

airbob

Member
Barry,
Those "teenies" are coming around really, really well mate! I love your pictures!....:thumb:

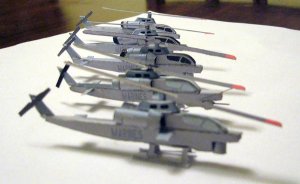

Nice lineup of choppers you have there Barry.

I can't imagine doing the Osprey at this scale, let alone test/scratch build. Well done! That's some difficult shapes to merge at that size. I can't imagine where the formers even go?


barry

Active Member

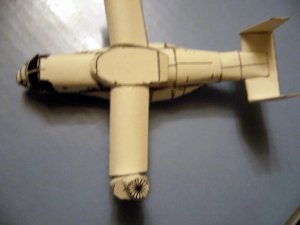

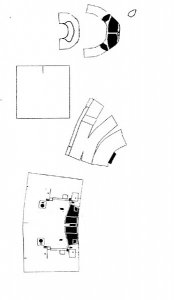

Engine pod

Spent most of today cleaning up the graphics my texturing still comes out like it was done with a charcoal stick.Kindly note the transition from the round nose of the pod to flat halfway down the engine cos it took me ages to do and at the end no one will ever notice it again.


Attachments

  • PIC_00127.jpg
    31.9 KB · Views: 9
  • P1020337.JPG
    55.1 KB · Views: 9
  • P1020338.JPG
    39.9 KB · Views: 8

barry

Active Member

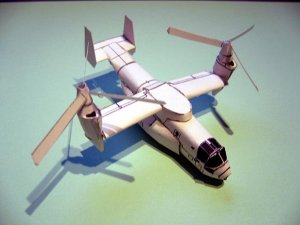

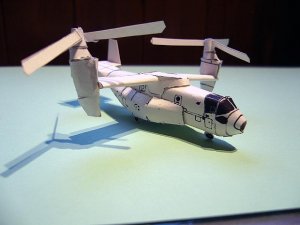

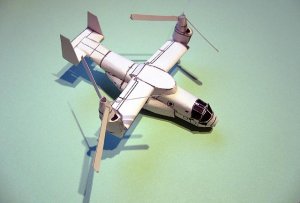

Osprey 2

Another rebuild of the Osprey still requires the prototype red markings to make it somewhere near authentic. The twist in the rotor blades will have to wait for a couple of days while the glue joints harden enough.


Attachments

  • P1020339.JPG
    52.6 KB · Views: 9
  • P1020340.JPG
    51.5 KB · Views: 6
  • P1020341.JPG
    51.8 KB · Views: 4

barry

Active Member
supports

One of those mindless jobs but they do help straighten the hull sides a puts up the parts count a bit.

Thanks Lex a bit belated


Attachments

  • P1020352.JPG
    84.6 KB · Views: 6
  • P1020357.JPG
    69.2 KB · Views: 5
Barry, I'm not real familiar with the Tarawa class. Is that a catwalk just below the flight deck? How did you make that?

Nice job on the Osprey by the way. Looks like you worked out the kinks rather nicely.


barry

Active Member
Hi Elb

yes the catwalk sits on top of a wire frame which is soldered standard 4 rail with the uprights extended and two extra rails added then bent into an "L" shape and the cantilever is glued to the bent over portion. I think there is a photograph earlier in the thread.


OhioMike

Member
I looked thru the thread for the most part and apparently missed it, did you enlarge a smaller model of this with Photoshop or did i miss-understand? Thanks.
Mike


barry

Active Member
Elb picture is #182 in this thread

Mike not sure of the question it was all designed using Metasequoia and scaled up in Pepakura.
