USS Spruance 1/200th

Discussion in 'Ship & Watercraft Models' started by barry, Jul 1, 2006.

  1. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    davits

    Thanks for all the pics they help a lot
  2. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Cleaning up the superstructure

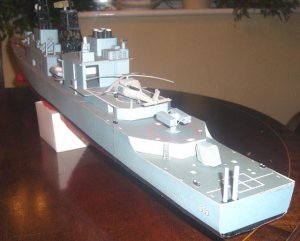

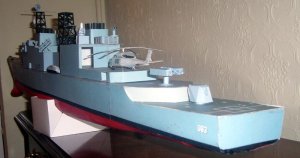

    Added the overlay to cover up my inability to produce perfect square boxes there are no joins on the real ship. I am reasonably pleased with the result, pity the flash is cruel about slightly off colours. While I was at it I filled in the aft deck walls. Nothing spectacular but it changes the appearance quite a lot it still needs all the vent pipes and conduits to break up the flat walls.

    [​IMG] [​IMG]
  3. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Bits and pieces

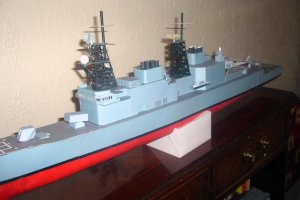

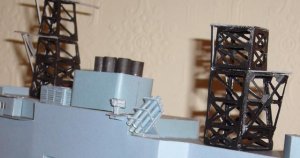

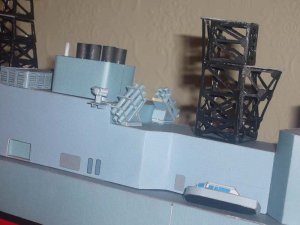

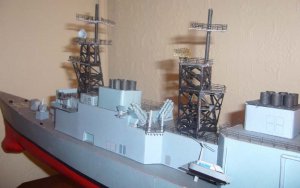

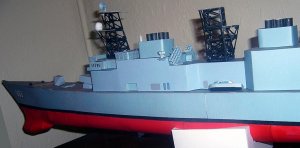

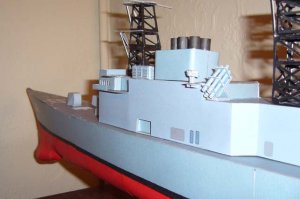

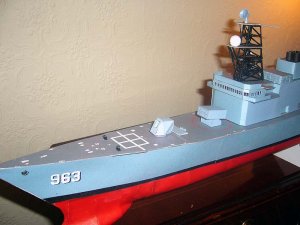

    Managed to almost fix the colour on the side walls of the deckhouses and added the missile tubes and fire control midships. After seeing Jim's pic of Spruance showing the fore gun turret I revamped the design and tried to take a picture of the model from the same angle I think it worked.

    by the way is anyone else having trouble with image shack pics or is it just me ?

    Attached Files:

  4. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0

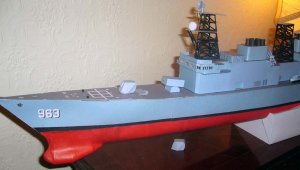

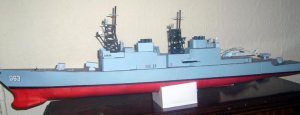

    Looking great, Barry! I especially like the first picture show the nice smooth line of the hull! Thanks!

    Chris
  5. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    radars

    Commonsense says I should use a nice plastic bead for the radome, bloody mindedness says make it out of cardboard I will decide after it has had another coat of paint or two. Inside it's coated in enough pva to make it bomb proof and stuffed with tissue paper, a bit more sanding is needed also.

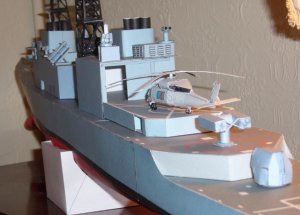

    Time to start on the deck gear now the ladders are allready driving me up the wall got a little pile of scrunched steps so far. The guns are a possibly a bit over simplified I think putting the folds in without scoring would add the missing curves apart from the two at the front.

    i gave the underwater hull another coat of paint after a light sanding it seems to have helped.

    Believe it or not the aft mast has had 4 coats of paint so far and the white still grins through.

    @Clashster

    Thank you for the kind words maybe later I will show you the cheat.

    regards

    Attached Files:

  6. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0
    Let's hope so! I need all the help I can get!!! :twisted:

    But seriously.... Again, love to see the pictures of your build. Looks great... I hope to get the nerve up for a big build like this (currently building GreMir's Novgorod - not too big or eating up all my time consuming! :grin: )
  7. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Radars

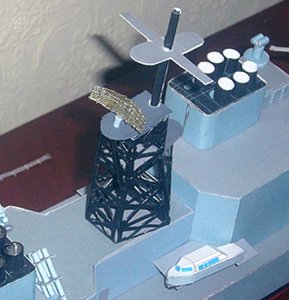

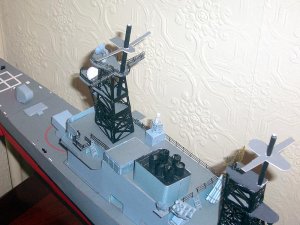

    My attempt at the main radar dish on the aft mast, no it isn't painted cos I shall probably make a total mess of it and the mesh will disappear or the whole lot will fall off. That would not be a bad thing I've glued the dish on upside down amazing what you see in a photograph.

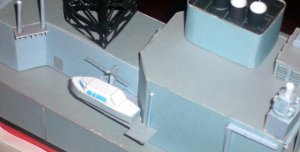

    the boats a bit of a barge at the moment and there is a ton of touching up to do.

    Attached Files:

  8. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    bits

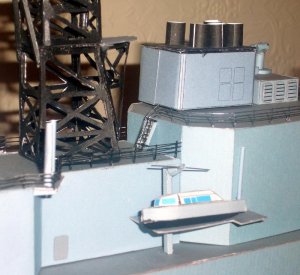

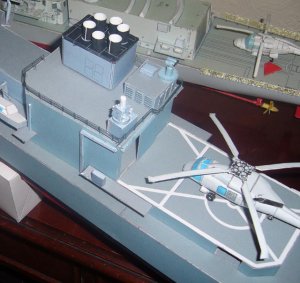

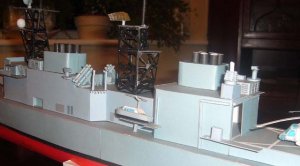

    Not much progress really but you can see the steps and some sort of weird pole array must be heavy in has enough cantilever brackets under it. I have added the funny boat derrick but I can't figure out where the winch drum is so I suppose it must be down at boat deck level. added some trunking but it still needs more bits to break up the surfaces

    Attached Files:

  9. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Wotcher, bazzer!

    Bit by bit, she's coming together rather fabulously!
    I think that double shaft object on the transom is an antennae array, but I don't know what type or why it is so large.
    Davit came out very well, as did all those little bits you added since the last post.

    Keep at it, mate!

    Cheers!
    Jim
  10. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    rails

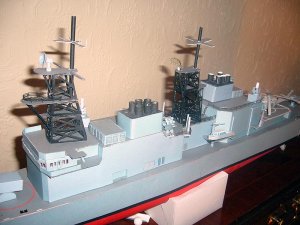

    Just for a change had some railing extra to what I need for Norfolk so I added a couple of strips to see if it improved the looks. I've decide to move her forward just a little bit in time so I can add a set of bins on the top side which is blank at the moment. Hands must have been feeling good when I soldered this lot.

    Attached Files:

  11. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0
    I like the look it adds, Barry! I put aside one of my builds because I couldn't produce any railings that I liked... So I ordered some. They weren't quite right, so back to the drawing board. Love to see some nice ones finished. Soldered them, huh? Guess I will have to get a soldering gun and some solder and give that a try! Thanks for the update!

    Chris
  12. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Well, I think it's pretty clear the railings worked very well, but I thought she looked superb to begin with, mate.:grin:

    I really like the way the phalanx gun came out, a very nice study in detail.

    Your hands are magic, bazzer.

    Cheers!
    Jim
  13. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    more rails

    Fingers are still working managing to knock out about 4 sets of rails a day at the moment:) not very exciting really. Tried a spare section on the foremast doesn't look too bulky

    Attached Files:

  14. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Wotcher, bazzer!:)

    While it might seem to you that it's a bit tedious to make the rails, it does make a big difference in how she looks...and it is certainly exciting to us to see any update on this beautiful lady.

    Keep at it, mate!

    Cheers!
    Jim
  15. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    Mast tops

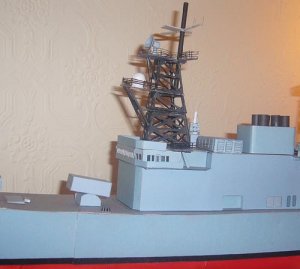

    Just adding rails, the upper platforms are coming off to do this job far too awkward on the masts, for me anyway. You really need to able to bend the wire around the platform in one go. They are pretty fragile fabrications.

    Attached Files:

  16. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Wotcher, bazzer!:)

    Bit by bit, railing by railing, your masterful creation gets better and better....

    Keep those updates coming, mate!

    Cheers!
    Jim
  17. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    American Navy Whalers

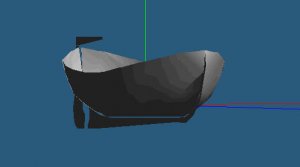

    Jim Krauslis kindly found me a load of references but I would like to ask the ex USN members has this caught the look of one I know it lacks the "pulpit" for the helmsman but other than that. I have been trying for weeks to get it right.

    Thanks in advance

    regards

    Attached Files:

  18. eibwarrior

    eibwarrior Member

    Joined:
    Dec 17, 2005
    Messages:
    588
    Likes Received:
    0
    Barry, still good work on those upper platforms. Those scratch-built rails can be tough. You to them well. I've got to take the plunge one day and give them a try.
  19. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    mast heads

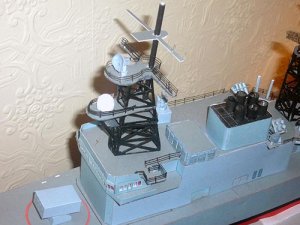

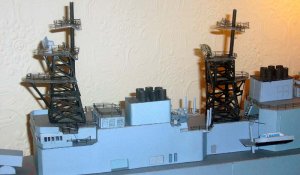

    Mast railings complete :)

    Attached Files:

  20. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Wotcher, bazzer!:)

    Well, you have again shown us why you are the master of the rails...they came out great!

    Still can't believe how big this one is, mate.

    Great job, as always!

    Cheers!
    Jim
