Update on the layout

Discussion in 'HO Scale Model Trains' started by Ray Marinaccio, Dec 3, 2004.

  1. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

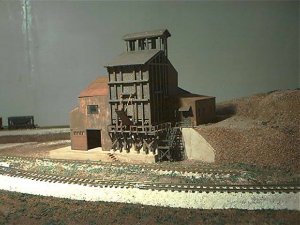

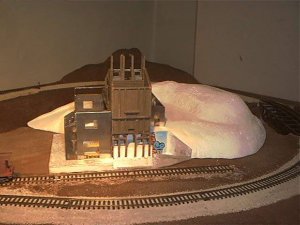

    I have been working on a mine scene on top pf the mountain.
    It will not only provide an industry in the area but also a view block to hide the return loop when viewed at track level.
    The mine building is being built from an incomplete AHM coal tower and some left over corrugated tin parts from a Suydam kit.

    Attached Files:

  2. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

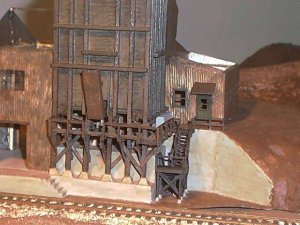

    I used wood to build the walkways and railings and Styrene to build the stairs case.

    Attached Files:

  3. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

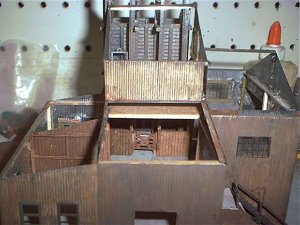

    Some interior walls and beams are installed so the building doesn't look empty.

    Attached Files:

  4. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Looks Great Ray. :thumb: :thumb: :thumb:
  5. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

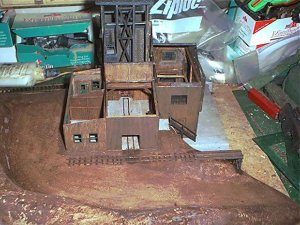

    I built a guide attachment for the milling machine to feed some N scale rail through and mill it down to .045" high.
    Brass ties were soldered at the ends and wood ties were glued in to make the 18" gauge track. The track inside the building was glued directly to the floor.
    A turntable was made from a brass washer and short pieces of rail.

    Attached Files:

  6. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

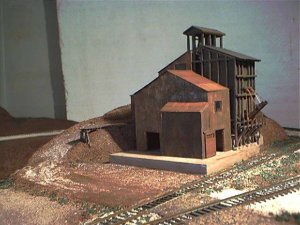

    I have the mine scene permanently mounted on the layout.

    Attached Files:

  7. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

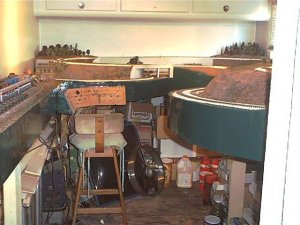

    I also have the fascia installed.

    Attached Files:

  8. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    That is looking really sweet Ray.
    Love your room. ;)
  9. screen

    screen Member

    Joined:
    Aug 18, 2005
    Messages:
    50
    Likes Received:
    0
    Real nice! Bet they can't wipe that smile off your face!
  10. Iron Goat

    Iron Goat Member

    Joined:
    Apr 10, 2004
    Messages:
    577
    Likes Received:
    0
    Awesome job, Ray.....

    Bob
  11. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    That's looking very good, Ray!

    I love that weathering job on your mine. And the ore chute even moves! Wow! :thumb: :thumb: :thumb:

    Ron
  12. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    That's a beaut of a mine Ray. Nicely weathered and rugged looking. Your fascia is looking good too, by the way. Nice finished look.
    Ralph
