Universall Carrier GPM

Discussion in 'Armory & Military' started by JaCkyL, Nov 24, 2015.

  1. Gandolf50

    Gandolf50 Researcher of obscure between war vehicles... Moderator

    Joined:
    Jan 28, 2013
    Messages:
    453
    Likes Received:
    456
    zathros likes this.
  2. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,522

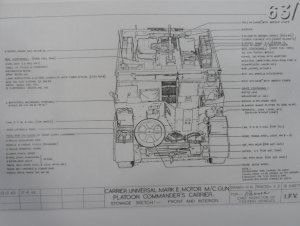

    Those are great drawings. A couple more, with a cut-a-way to get some "unseen" parts, such as the angle of the front plate would wrap it right up. One could be produced from this, though it might not be as accurate. Just a bit more info. These are the best reference drawings to date, Thanks Gandolfo!!
  3. Gandolf50

    Gandolf50 Researcher of obscure between war vehicles... Moderator

    Joined:
    Jan 28, 2013
    Messages:
    453
    Likes Received:
    456

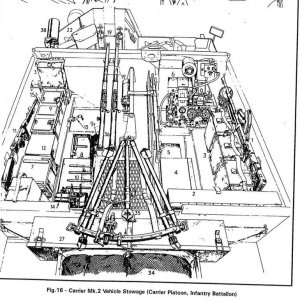

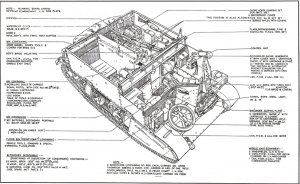

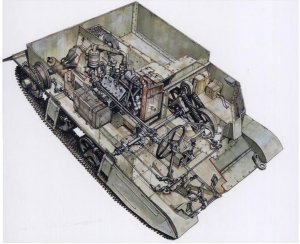

    oh well here...maybe these will help!

    Let me know I got lots of other stuff, just wish I had the operators and parts list handbooks...and like you said...3 views are just about non existent!
  4. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,522
    Dude, post what you got. Then when I get to it, it might workout. Be nice to have a free one on the forum! :)
