Union Pacific BIG BOY 4-8-8-4 1/25 Scale (Engine)

Discussion in 'Gallery & Designs' started by kooklik, Sep 2, 2009.

  1. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello there

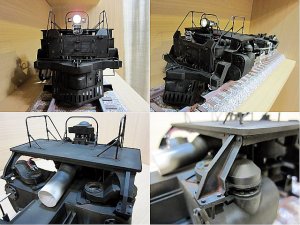

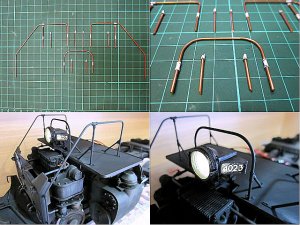

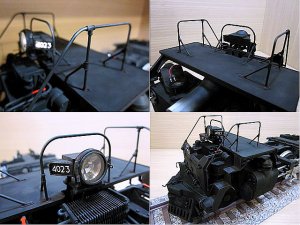

    The hand rails were completed. I bent 1.2 mm along to the template. All pieces were bonded by cyanoacrylic glue. The paper joints make the rail stronger.
    ----kooklik----

  2. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0

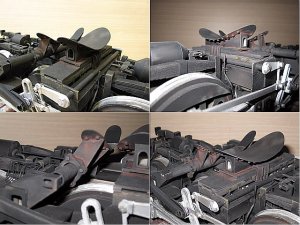

    Front Stairs


  3. Padre

    Padre Member

    Joined:
    Oct 4, 2009
    Messages:
    370
    Likes Received:
    18
    This is an outstanding piece of work and design!:thumb: Far beyond anything I can do. wall1
  4. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    :) thank you Padre

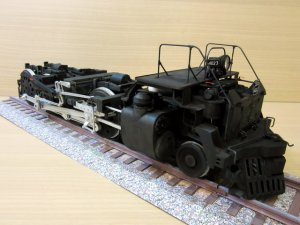

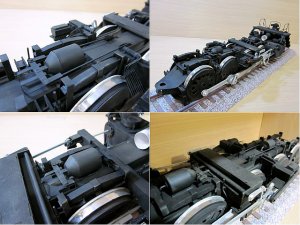

    Today I finished the brake cylinders.

  5. Ronson2k3

    Ronson2k3 Member

    Joined:
    Apr 2, 2008
    Messages:
    224
    Likes Received:
    0
    Looking spectacular.

    Yep I'm back.. Been away for a long time. Wanted to see how things are coming along on your big boy and get caught up on other threads as well.

    Nice to see your progressing nicely. It's been a pretty long go so far. You are quite dedicated and have much stamina :) I love the metal work and the lamps great job.

    Cheers
    Ron
  6. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello Ronson2k3

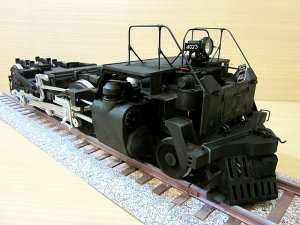

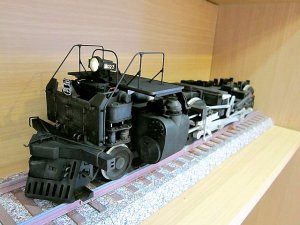

    Thanks for your following and many posts to my model. After 11 months for this section. It was much complex section than the tender. The completion of the front engine made me more confidence to do the other sections. But I need time to complete the instruction before the back engine.
    ----kooklik-----


  7. astralwanderer

    astralwanderer New Member

    Joined:
    Oct 13, 2007
    Messages:
    13
    Likes Received:
    0
    kooklik, again I am amazed by your attention to detail. I can't wait till this kit is available. Keep up the excellent work.
  8. rocketmonkey

    rocketmonkey New Member

    Joined:
    Aug 7, 2010
    Messages:
    11
    Likes Received:
    0
    That's some awesome modelling, chief! Looking forward to seeing the finished article! Respek
  9. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello astralwanderer and rocketmonkey

    Thanks for your kind words. :)

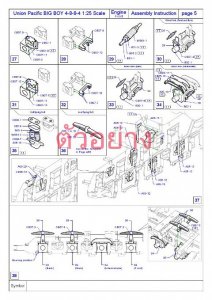

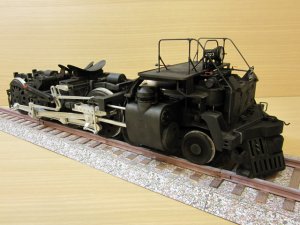

    The model building of this section has been done. I will miss my knife for several months. I'm working with the assembly instruction now. The ton of parts like this model needs carefully proof checking. Now Michael is doing this job from page to page. I've finished the page 4 yesterday.
    Cheers
    ----kooklik----
  10. oklacnw

    oklacnw Guest

    Gulp! it will be more than awsome!
  11. Ronson2k3

    Ronson2k3 Member

    Joined:
    Apr 2, 2008
    Messages:
    224
    Likes Received:
    0
    Just out of curiosity how many pages do you have for the various sections you have completed? Or how many pages of instructions for the whole engine have you done so far?
  12. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Front Engine Section
    Parts: 49 pages
    Instruction: 4 pages have done , 11-15 pages (estimated)

    Tender Section
    Parts: 54 pages
    Instruction: 12 pages

    Page Size: A4
  13. 4x4paper

    4x4paper Member

    Joined:
    Aug 24, 2006
    Messages:
    62
    Likes Received:
    0
    The instruction look as good as the model:mrgreen:
  14. chooch.42

    chooch.42 Member

    Joined:
    Jan 24, 2007
    Messages:
    230
    Likes Received:
    1
    Hello, again, Kooklik ! The choo-choo guy - still following and still marveling at your meticulous masterpiece ! Thanks for amazing us with what is possible with an abundance of thoughtful and thorough design work, and dedication to careful construction. Such a project - from concept through design and compilation to actual construction - is likely more than most of us would even attempt, on so large and complicated a model. Again, I salute you for your industry and craftsmanship. Bob C.
  15. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello all
    I miss thread as much as missing my model building desk.
    Long time no any posts here. I'm still working on the instruction and debug errors those found during the test build.
    Still only a half way I have some instruction pages to display.

  16. 4x4paper

    4x4paper Member

    Joined:
    Aug 24, 2006
    Messages:
    62
    Likes Received:
    0
    Very good very very good
  17. Ronson2k3

    Ronson2k3 Member

    Joined:
    Apr 2, 2008
    Messages:
    224
    Likes Received:
    0
    Impressive as always. Slow and steady wins the race man...
  18. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello all
    The page 8 have been finished today. Running slow but never stops. :)
    ----kooklik----
  19. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Hello all
    Update new page 9 and 10.

  20. kooklik

    kooklik Member

    Joined:
    Oct 29, 2006
    Messages:
    671
    Likes Received:
    0
    Page 11 and 12
    More parts more rendering time. I have to unselect some background parts for shorter rendering time. Some pictures I left my computer to do rendering for overnight. :)

    Attached Files:
