U.S.S. Simon lake

Discussion in 'Ship & Watercraft Models' started by Zathros, Sep 29, 2011.

  1. Zathros

    Zathros Guest

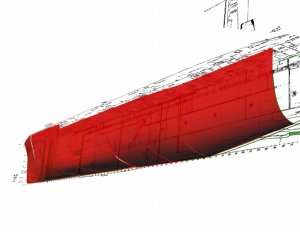

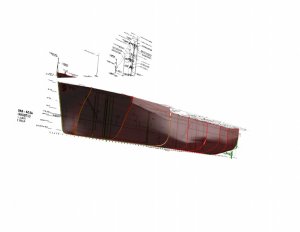

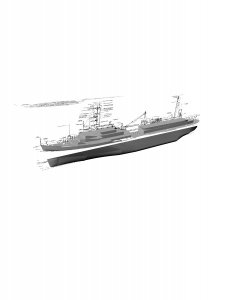

    I am helping a young person up in Alaska by designing this boat for him that his father served aboard. He started out with drawings, but did not have sufficient reference material. I decided to take on the project, so, we'll see how it pans out. It took hours to find the reference material, suitable enough to use as reference material, and I have spent 2 hrs. preparing and scaling the first 3rd needed to do the Hull in Adobe CS3. This is where I am after working way too late into the night. This attached drawing represents about 45 minutes worth of work on Rhino from start up. I hope to proceed at a better pace. It should end up a 1/20 scale, and be 32.2" inches long.

    Attached Files:

    • R2.jpg
      File size:
      63.7 KB
      Views:
      18
    • R3.jpg
      File size:
      93.5 KB
      Views:
      10
  2. Zathros

    Zathros Guest

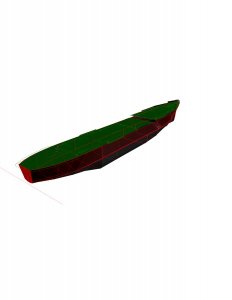

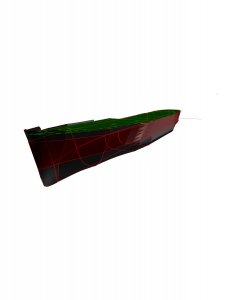

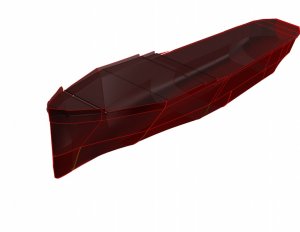

    Resolved some hull issues. Hoping to finalize the hull soon. Trying to be productive! :thumb:

    Attached Files:

    • R9.jpg
      File size:
      61.4 KB
      Views:
      15
    • R10.jpg
      File size:
      43.8 KB
      Views:
      13
  3. Zathros

    Zathros Guest

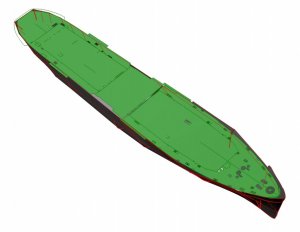

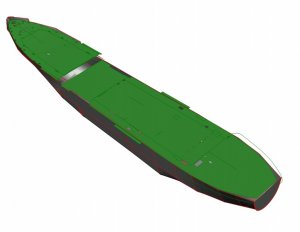

    Working on Deck details.

    Attached Files:

    • R11.jpg
      File size:
      70.8 KB
      Views:
      42
    • R12.jpg
      File size:
      62.4 KB
      Views:
      5
  4. Zathros

    Zathros Guest

    It wasn't till after I loaded the last 2 pictures I realized there was a mismatch between the deck and Hull. It is fixed now. :)

    Attached Files:

    • R13.jpg
      File size:
      27.7 KB
      Views:
      11
    • R14.jpg
      File size:
      27.4 KB
      Views:
      9
  5. Zathros

    Zathros Guest

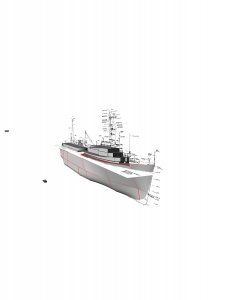

    Starting the Superstructure.

    Attached Files:

    • R15.jpg
      File size:
      29.3 KB
      Views:
      22
  6. peter taft

    peter taft Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    925
    Likes Received:
    0
    John, this is looking very VERY nice indeed... I'm coming round your house so you can show me how to work this magic :cool: If Only ! Carry on the great work, and i hope all went well for you yesterday. Take care.
  7. Zathros

    Zathros Guest

    Peter my dear friend, all is going quite well. SO much so, I shall keep hoping for the worse!! Time will tell, but supposedly, I am supposed to be in really bad pain right now and I am not, I hope that is a good sign! :)
  8. peter taft

    peter taft Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    925
    Likes Received:
    0
    Hey.... fingers crossed you go from strength to strength John, the BOSS is looking after you :thumb:
  9. Zathros

    Zathros Guest

    An incremental update.

    Attached Files:

    • R16.jpg
      File size:
      40 KB
      Views:
      75
  10. Zathros

    Zathros Guest

    Bits more.

    Attached Files:

    • R17.jpg
      File size:
      34.3 KB
      Views:
      7
    • R18.jpg
      File size:
      28.4 KB
      Views:
      17
  11. Zathros

    Zathros Guest

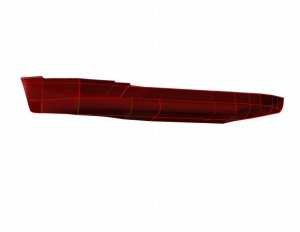

    Little more. Completely new Hull.

    Attached Files:

    • R22.jpg
      File size:
      23.6 KB
      Views:
      8
    • R23.jpg
      File size:
      25.2 KB
      Views:
      43
    • R24.jpg
      File size:
      30.1 KB
      Views:
      10
  12. Zathros

    Zathros Guest

    More bits. Plodding along! Because of the hand drawn blue prints, there is a guess on some parts. As actual dimensions aren't given, I have to copy off the blueprint, the machinist in me cringes!!

    Attached Files:

    • R27.jpg
      File size:
      33.8 KB
      Views:
      46
    • R28.jpg
      File size:
      29.1 KB
      Views:
      8
  13. Zathros

    Zathros Guest

    Some cranes and Booms, chaka laka!!

    Attached Files:

    • R31.jpg
      File size:
      23.5 KB
      Views:
      15
    • R32.jpg
      File size:
      25.5 KB
      Views:
      19
  14. peter taft

    peter taft Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    925
    Likes Received:
    0
    Coming along nicely John :thumb:
  15. paulhbell

    paulhbell Member

    Joined:
    Sep 23, 2009
    Messages:
    196
    Likes Received:
    4
    Looking good. Keep up the good work and put me down for one.
  16. Zathros

    Zathros Guest

    Just by posting in this thread means you are on the list! Due to recent events, my build threads will be here now. I have taken a temporary hiatus from building as the storm did much damage to my house and with Winter coming, I have to button the place back up. It is not dead yet though, not by far! :)
  17. morfydd

    morfydd New Member

    Joined:
    Nov 28, 2012
    Messages:
    4
    Likes Received:
    0
    Am very interested in this project ..wanting a model of the simon lake in 1/350th scale to go with the other modles of ships I have that I served on in my career in the navy
  18. Zathros

    Zathros Guest

    Sat on my hands on this for a long time. I am getting Rhino3D 5.0 next week. Maybe I'll have to take a gander at it again and see what can be done? :)
