    This is the second of my Thanksgiving vacation models. It's the U.S.S. Phobos by Paragon. I repainted it with more correct Starfleet lettering on the primary hull and warp engines.

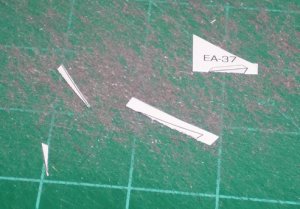

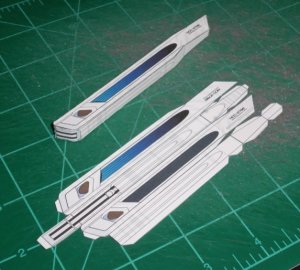

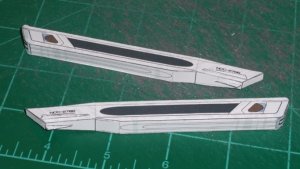

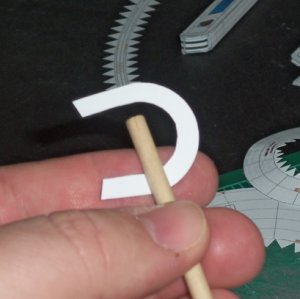

    First parts build were the warp engines. Simple score, cut, fold and glue. The small parts I scored and glued first and then cut to size. That makes them hold up better.

    Attached Files:

    • 1.jpg
      File size:
      111.3 KB
      Views:
      10
    • 2.JPG
      File size:
      175.1 KB
      Views:
      76
    • 3.jpg
      File size:
      88.1 KB
      Views:
      8
  2. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

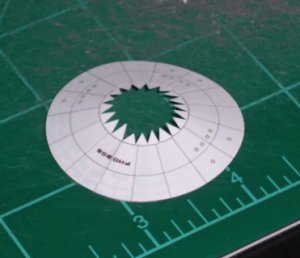

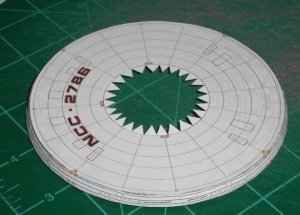

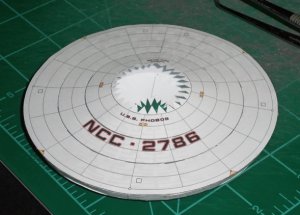

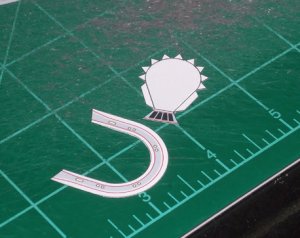

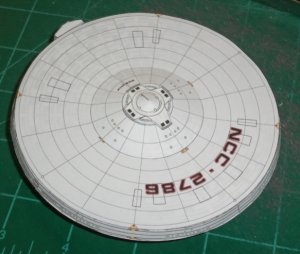

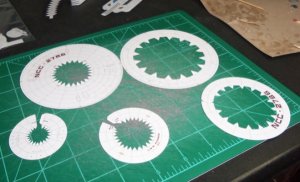

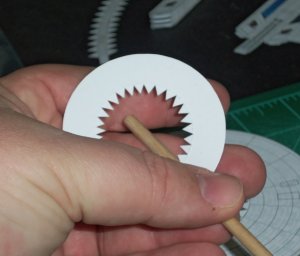

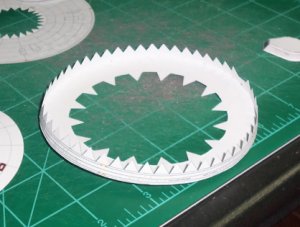

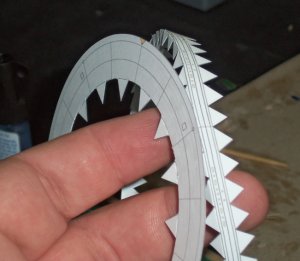

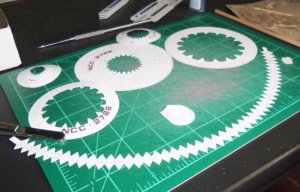

    Second part built was the primary hull. I trimed out the parts to mirror the tabs on Rawen's models. I don't like the interlocking tab design because, for me, it makes the seams harder to meet up and it doesn't give the circular parts on the top and bottom a solid base. I cut all the base tabs off for a more smooth fit. I cut all the tabs off the bridge because they are just too small and it looks better if it's edge glued. I added an impulse engine from my parts box because I wanted to cover up the dotted area where this goes. Besides, saucers that can separate are supposed to have their own impulse engines. Not sure if this class of ship can do that, but that's the reason.

    Attached Files:

    • 4.jpg
      File size:
      93.4 KB
      Views:
      7
    • 7.jpg
      File size:
      106.6 KB
      Views:
      11
    • 8.JPG
      File size:
      182.7 KB
      Views:
      6
    • 9.JPG
      File size:
      119.4 KB
      Views:
      75
    • 10.JPG
      File size:
      179.8 KB
      Views:
      8
    • 11.JPG
      File size:
      187.6 KB
      Views:
      8
    • 12.JPG
      File size:
      182.1 KB
      Views:
      12
    • 13.JPG
      File size:
      89.8 KB
      Views:
      78
    • 14.jpg
      File size:
      88.3 KB
      Views:
      10
    • 15.JPG
      File size:
      152.8 KB
      Views:
      79
  3. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

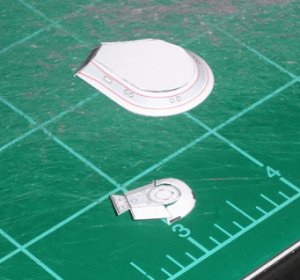

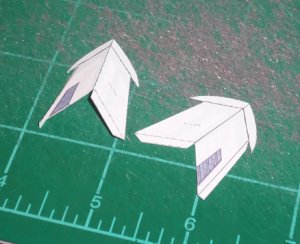

    Finished up the bridge. The pylons were next. They didn't come out square so I must be missing something in how they are assembled. But, they are passable.

    Attached Files:

    • 16.JPG
      File size:
      113.1 KB
      Views:
      78
    • 17.JPG
      File size:
      101.5 KB
      Views:
      73
    • 18.JPG
      File size:
      149.1 KB
      Views:
      74
    • 19.JPG
      File size:
      121.4 KB
      Views:
      75
  4. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

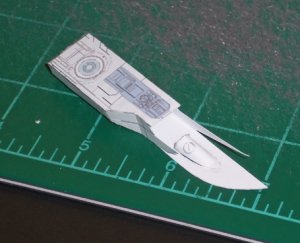

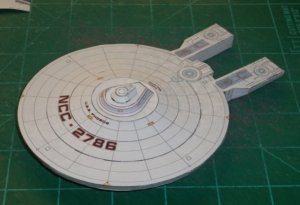

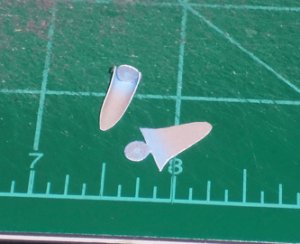

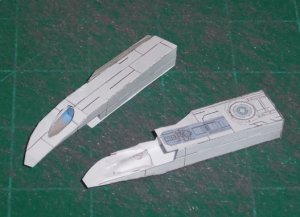

    These twin hulls/impulse engines took some time. Once I got the basic shape figured out they came together, but the tiny navigational deflectors caused some problems. The don't fit the holes in the hull and when I glued them in there were big gaps. So I glued some small strips on each side to close the holes. If I built another I'd cut them out so they'd glue flat to the hole and color in the white left over.

    Attached Files:

    • 20.JPG
      File size:
      82.9 KB
      Views:
      70
    • 21.JPG
      File size:
      139.8 KB
      Views:
      74
    • 22.JPG
      File size:
      170 KB
      Views:
      12
    • 23.jpg
      File size:
      79.3 KB
      Views:
      12
  5. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

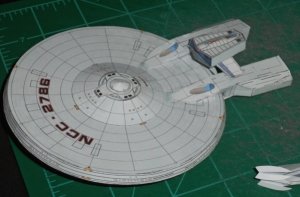

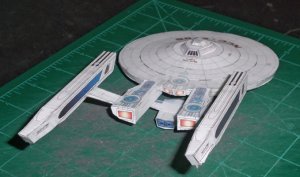

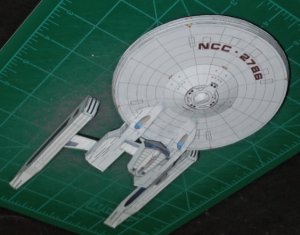

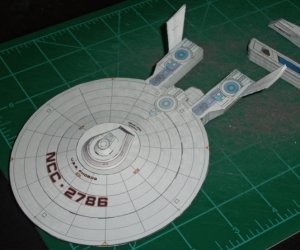

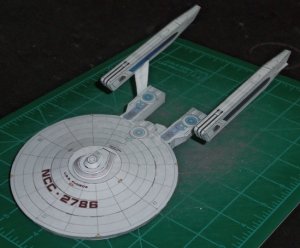

    Finally, added the torpedo launcher on the bottom, pylons and warp engines. Since this design has several thin parts, I coated most of the seams with a thin layer of super glue for strength and stability, especially the warp engines and the edges of the pylons.

    That's it. Another proud edition to the fleet!

    Attached Files:

    • 24.jpg
      File size:
      99.9 KB
      Views:
      12
    • 25.jpg
      File size:
      108.9 KB
      Views:
      8
    • 26.JPG
      File size:
      188.8 KB
      Views:
      12
    • 27.jpg
      File size:
      78.3 KB
      Views:
      10
    • 28.JPG
      File size:
      141.4 KB
      Views:
      9
  6. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,253
    You have done a GREAT JOB on this model.
    It looks really good!
    I am certain that Paragon will be happy to see it.
  7. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,889
    Likes Received:
    3,535
    Excellent job!
  8. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219
    WOW! You have done an excellent job on this model!
    This has always been one of my favorite of Paragon's models
    and you have done an excellent job on it
  9. vulcan8630

    vulcan8630 Member

    Joined:
    Jul 28, 2009
    Messages:
    134
    Likes Received:
    5
    Wow, your technique and building skills are just growing! Amazing model and GREAT build!
  10. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    Fantastic! KUDOS!
  11. blueyeppoon

    blueyeppoon Member

    Joined:
    Jun 21, 2010
    Messages:
    80
    Likes Received:
    7
    fantastic so far I haven't the skills to get one of his models done
    But instructions like this will help
