Tunnel portals are costly

Discussion in 'Scratchin' & Bashin'' started by Bill Pontin, Oct 26, 2003.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

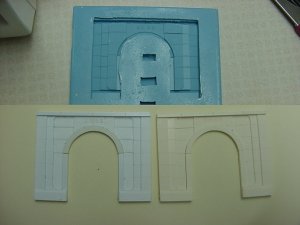

    Needed three tunnel portals for my new N Trak module. Those available did not quite fit the bill. I needed them to be on a slight radius and clearances would be tight. The double portals looked too wide and the singles too narrow. Here I built one using styrene on the order of Woodland Scenics concrete one. Made to a better width for my purpose. I then, naturally, made a rubber mold of that and cast up the three I needed. Not visable in the picture is the year "1948" cast into the portal lintel. Cold stamped the styrene to provide the negative. They look great and I found that it looks better cast with "Durham's Rock Hard" putty than the plastic resin.

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

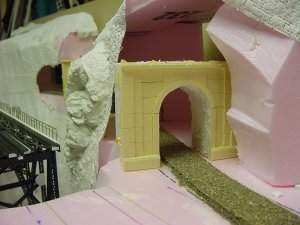

    One side set temporarily in place, still completing the mountain and adding the plaster cast rock work.

    Attached Files:

  3. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Cooooool! I like it! That's a great idea. Will you be selling any?
  4. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
    nice work Bill can you get casting plaster in your local sets up fast fine grain ez to work once it is set up.
  5. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Purrty nifty! :)
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Where there is a need there is always a way. Nicely done Bill
  7. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Hats Off!

    Beautiful work, Bill! I also would love to see an eventual update. :)
