    Hello, I am constructing a trestle bridge circa 1920-1930.
    Can someone please tell me if a wooden trestle with a steel plate girder central section would be feasible for 1920-30 USA ?
    Does anyone have any photos of this type of combination steel girder / wooden trestle bridge ?

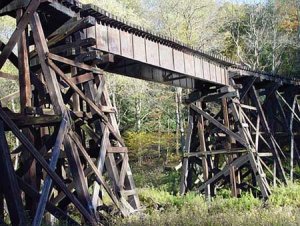

    I found one picture of what I want. See attached. Anyone know of other similar pics ?

    Thanks very much for any help.

    Attached Files:

  2. nachoman

    nachoman Guest

    the central span is definitely made of steel, and probably a replacement for an original wooden truss. Great looking bridge to model.

    kevin
  3. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
  4. fran1942

    fran1942 Member

    Joined:
    Apr 16, 2005
    Messages:
    41
    Likes Received:
    0
    thanks guys. Please tell me would a bridge like this with a steel centre span be feasible for 1920-30 USA ?

    Also, were centre spans of this design ever made of wood, or are they always metal ?

    Thank you kindly.
  5. Doc Holliday

    Doc Holliday Member

    Joined:
    Oct 28, 2002
    Messages:
    630
    Likes Received:
    0
    From my research, most timber trestle weren't made to clear-span distances like bridges. I've seen lots of pics similar to that above, but don't know if the plate girders are original or replacements. I say go for it. Don't forget to post some pics when you're done.
    Doc
  6. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,443
    Likes Received:
    0

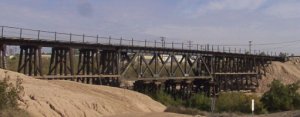

    here is one of the SP main line near holtvill CA was used from the 1920's till line closed in the 70' or 80's so i was told by local:)

    Attached Files:

  7. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,443
    Likes Received:
    0
    here is another pic of the bent work

    Attached Files:

  8. fran1942

    fran1942 Member

    Joined:
    Apr 16, 2005
    Messages:
    41
    Likes Received:
    0
    thank you kindly Jim, nice reference pics. They have helped me with my project.

    Cheers.
    Phil
  9. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,443
    Likes Received:
    0
    Phil pm me
