    Saturday saw me with my carpenters hat on:rolleyes:
    Problem was, how to move a 16 foot , 5 piece model lay out,, useing one van, also being able to store the structure with minimum space.;)

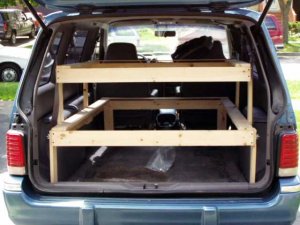

    Well here it is. This will take two sections on lower level ,,,, 48 inches by 34 inches.
    The middle level takes two sections,,, 48 inches by 30 inches.
    And the top level takes the last section 48 inches by 30 inches.

    Thought it might give some folk an idea on "how to" .
    That`s when you want to start doing a few shows .:D

    Attached Files:

  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    ;)

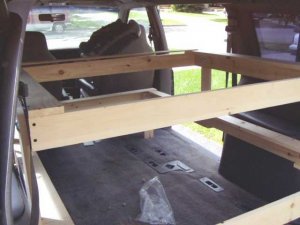

    Attached Files:

  3. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

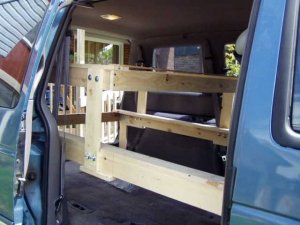

    View from side door

    Attached Files:

  4. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

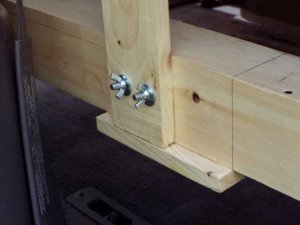

    All pieces are bolted together except for the main frame:)

    Attached Files:

  5. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

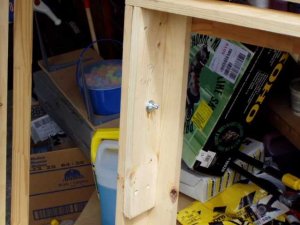

    Make seperate bolt holes to stow the legs away.:p

    Attached Files:

  6. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

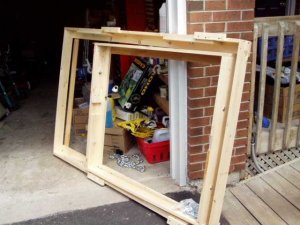

    And here she is already to store in a small space ;)
    Hope it can give you some ideas.
    Now we can Transport the Traction in Action Layout in one easy go.:cool:

    Attached Files:

  7. Blake

    Blake Member

    Joined:
    Jul 19, 2002
    Messages:
    454
    Likes Received:
    0
    That's all fine and good but where do YOU sit!!!:D :D :D
  8. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Nice piece of engineering there, Chris!
    :cool: :cool: :cool: :cool:

    btw...I'm glad I'm not the only one who has a garage that looks that way!:D :eek: :p :D
