Transfer Dock for my dual gauge track

Discussion in 'Robin At His Best' started by Matthyro, Feb 3, 2005.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    I need a platform so goods and materials can be transferred between regular and narrow gauge trains. Regular gauge is N scale and narrow gauge is Nn3
    I started by making the roof trusses and they are GASP!!! made of wood, not cardboard. I got a new Ryobi bandsaw that was on sale at HD. It does a fantastic job of cutting wood in sizes I need. The trusses are made out of 9inch by 12 inch posts, 6 inch by 9 inch support and 2 inch by 10 inch cross beams. The 2 inch thick pine is so thin light shines through it just like paper. This saw will come in handy for many projects.

    Attached Files:

    • cd.jpg
      File size:
      62.5 KB
      Views:
      511
  2. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    Very nice! Are you branching out and going into custom lumber orders?
  3. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    No need for transfer...! We had a guy talking about German standard and narrow gauge railways at our local club last month. The Germans had come up with little narrow gauge flat-car type wagons that took the entire standard gauge car right on top. Things looked like they were going to tip over...!

    Andrew
  4. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0

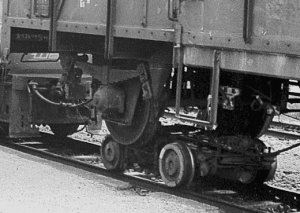

    Andrew, do you mean something like that? These little disonnected cars carry one Standarg gauge axle each. In German they are called 'Rollbock'. Now this would be a challenge for a scratchbuilder in N/Nn3! :eek:

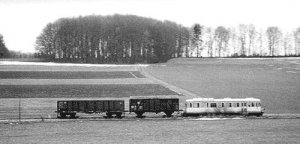

    The second pic shows a train, two freight cars behind a NG railrcar - really a wobbly affair when the track isn't first class.

    However - I prefer Robin's approach with a transfer shed. There are much more operational possibilities, needing different transfer installations: For LCL freight, for cattle, for coal, for liquids (oil etc.), for lumber... Robin - I think you'll have some more projects to do in the next time!

    And we'll be glad to look over your shoulders... :thumb: :thumb: :thumb:

    Ron

    Attached Files:

  5. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks for the photo Ron, That opens up a whole world of possibilities.
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

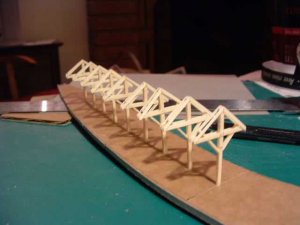

    The trusses in place ready for the rest of the rafters. The platform is cut to fit the space available.

    Attached Files:

    • tt5.jpg
      File size:
      27.6 KB
      Views:
      376
  7. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Great! :wave: Another awesome project. :eek:
    Can't wait to see the rest :thumb: :thumb:
  8. sams

    sams Member

    Joined:
    Dec 17, 2004
    Messages:
    96
    Likes Received:
    0
    looking nice mattyro!
    can't wait to see more progress pics.

    ron,
    thats a cool "gizmo".
    now you've got me thinking...
    how to model that in N/Nn3 ;)
    thx for the pics :)
  9. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,221
    Likes Received:
    0
    Hoooo Haahhh that looks good! but be careful, Robin, you start with the scale lumber, and next it's scale nails, and LPBs with hammers, and....Oh! the humanity!!!! :D :D
    :thumb: :thumb: :thumb:
  10. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Great Robin!! If you do with wood what you've done with cardboard, we're in for a real treat! :thumb:

    Val
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks folks. I will only use wood where I need strength. Cardboard will still be my main material. I wish my lumber was good enough to sell Tyson but don't want to get into that rat race like I did with a local craft store where orders came in faster than I could produce and ended up with sawdust city.

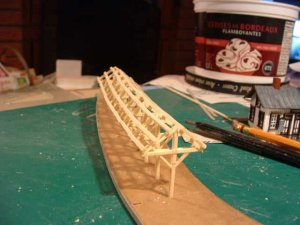

    Next step here was to add stringers.

    Attached Files:

    • cd2.jpg
      File size:
      35 KB
      Views:
      327
  12. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    Question, shouldn't the roof follow the same curve as the platform?
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    I want the roof to protect the center of the platform so that's why it doesn't match Tyson. The platform starts narrow and the edge of the roof is on the same line as the platform. The platform gets wider as you move along it and I could have followed the edge but didn't this time. Just to be different I guess.
  14. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    Works for me, I was just wondering was all. :)
  15. Muddy Creek

    Muddy Creek Member

    Joined:
    Aug 3, 2004
    Messages:
    268
    Likes Received:
    0
    Nice work. Inspired by your bandsaw work, I looked across the room at my small bandsaw for stained glass & wondered if there is a wood blade that fits it. Happy to find one offered by the manufacturer. This will certainly help in my work.

    Wayne
  16. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

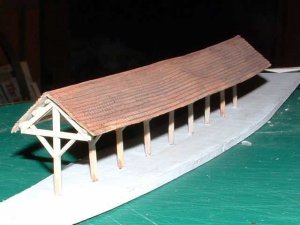

    Well it has been a while and finally the roofers showed up to do the shingling. Each shingle is 10 X 10 inches in N scale. The finshed look is as if this roof has been there for years and has devloped some sways as it aged.

    Attached Files:

    • cd3.jpg
      File size:
      32.1 KB
      Views:
      190
  17. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Wow!!! And I thought HO shingles were itty-bitty. That's fantastic Robin!!! :thumb:

    Val
