Train Station Kitbash (N Scale)

Discussion in 'Scratchin' & Bashin'' started by Drew1125, May 26, 2003.

  1. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    A couple of my daughters got me these two Model Power kits this past X-mas, & since I don't have a layout that they would fit on, I've decided to build a diorama of a small city train station...

    Here's the kits still in the box...

    Attached Files:

  2. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

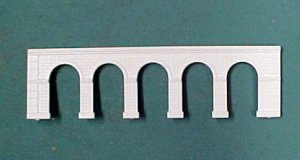

    When I opened the box for the "hospital" kit, I found these neat little archways that were supposed to form the lower story of the kit...I thought these would work nicely as a kind od open-air pavilion that passengers would pss through on their way to the boarding platforms...

    Attached Files:

  3. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

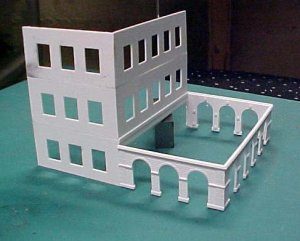

    Here's the beginings of the main structure & the pavilion...

    Attached Files:

  4. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

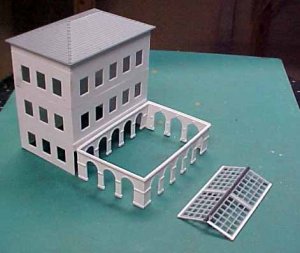

    I found some factory windows from an HO kit, & used them, & some angle & strip top make a large skylight for the pavilion...

    Attached Files:

  5. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

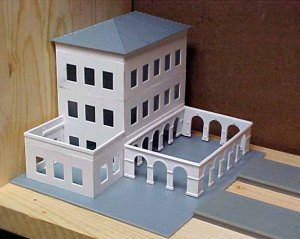

    Since only 2 sides of the structure will be visible on the diorama, I was able to use some of the extra walls to build an annex on the side of the main building...

    Attached Files:

  6. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

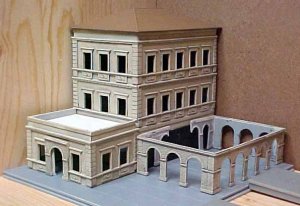

    I added the trim from the kit, & painted everything the same color, then gave everything a wash of India Ink & alcohol...I also sabotaged the inside wall of the pavilion to make an arched door fior the annex...I'll have to figure out a way to hide that later.

    Attached Files:

  7. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

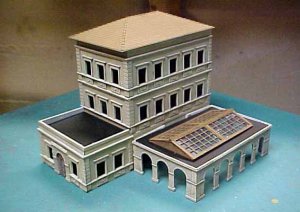

    Well,
    here's where I'm at at this point...

    Attached Files:

  8. Catt

    Catt Guest

    Lookin' good :D
  9. Matt Probst

    Matt Probst Member

    Joined:
    Mar 15, 2002
    Messages:
    379
    Likes Received:
    0
    Excellent "bash" Charlie..I enjoyed seeing it as it all came together.

    Matt--Hershey, Pa.
  10. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Thanks guys!
    There's still lots to do on this one!
  11. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    It's amazing how you can turn some cheap kits into a neat "craftsman" type building! :cool:
  12. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Great kitbash Charlie. Interesting to see how you put this all together.
  13. davidstrains

    davidstrains Active Member

    Joined:
    Aug 29, 2002
    Messages:
    1,061
    Likes Received:
    0
    neat bash, charlie
  14. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Wow!

    ...Not finished yet, and already a superb structure. Nice work, Charlie! I can't wait for more of this project!:)
  15. jkristia

    jkristia Member

    Joined:
    Aug 1, 2002
    Messages:
    433
    Likes Received:
    0
    Great loking building. What color did you use for the walls?

    Jesper
  16. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Charlie,

    All I can say is that this takes imagination and talent. Great piece of work.

    Don
  17. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Thanks everyone! :)
    Don,
    I've got plenty of imagination, but the talent...? I don't know...I'd like to think we havwe a pool of talent here at The Gauge, & we all share in that...I've seen some of your work, Don, & there are skills & talents there that I could learn quite a bit from! :)
    Jesper,
    The walls of the structure were spray painted with gray primer, then brushed with thinned Polly Scale Aged White The black wash of India Ink & acohol then darkened it to a nice terra-cotta type color. The sloped roof on the main structure was primed with the gray, painterd Polly Scale Rust, & also received the black wash.

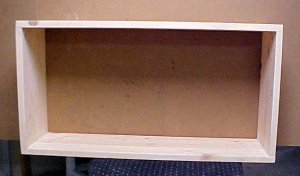

    I'm making a shadowbox that will hold the diorama...I cut this from a piece of 1x16 pine board. Inside dimentions are 28x14x7 3/4 inches. I'll finish it with some stain & varnish, & the piece of masonite shown will be cut & painted as a backdrop.

    Attached Files:

  18. philip

    philip Guest

    Charlie, Lookin real nice!

    philip :)
  19. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

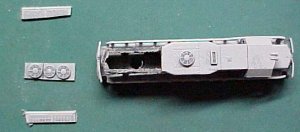

    Well, I got the razor saw out, & cut some fans & grills off an old diesel shell...

    Attached Files:

  20. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

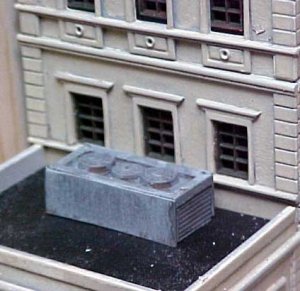

    ...& along with some bits of styrene, I used them to make this rooftop A/C unit...

    Attached Files:
