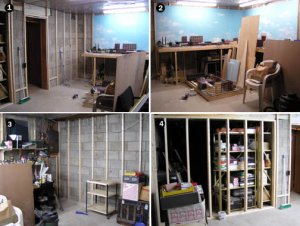

    Now that I have finalized my trackplan, I can really start the layout in earnest.
    Step one was to complete the strapping around the walls and then it's backdrop and benchwork.

    I was lucky enough to get help from my mom's handyman. I did the sawing and he did the drilling. I had done the first of the strapping myself, but what it takes me a day to do, he can do in 1/2 an hour!!!

    Tomorrow, he's going to lend me his nail gun, and I will put up the masonite backdrop. The photos are numbered and basically continue in a 360° panorama.

    Val

    Attached Files:

  2. Charles Mark

    Charles Mark Member

    Joined:
    Dec 5, 2002
    Messages:
    63
    Likes Received:
    0
    What did you use for your background [sky/clouds]? I am ready to buy masonite for my N scale. I think I will need approx. 21'. I am wondering how tall to have the masonite [24" or full size 48". I'm not sure if I want to try painting or buying ready made. I'm not sure how I will secure it either [probably just screw into wallboard]
  3. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Hi Charles

    My background is painted masonite. The clouds are stencilled as per Gavin Miller's excellent instructions, which you can findhere

    Val
  4. Eddie Landreth

    Eddie Landreth Member

    Joined:
    Mar 9, 2003
    Messages:
    115
    Likes Received:
    0
    Looks great, Val. You've got a great space to work in there with good lighting as well. Looking forward to seeing it progress.
  5. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,228
    Likes Received:
    0
    Looking good Val. :) :thumb:

    But a word of advice. See that doorway? Don't get too over exuberant with the wall panelling and mistake the doorway for where wall is supposed to go. You won't be able to find your way out, and you might get stuck in there forever!! hehehehehe :eek:
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Pleased to see you are getting help Val. I know some of said we would come and help too.
    As long as you don't ask us to find space for all the stuff that is stored and has to be moved somewhere else. Good progress so far.
  7. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    898
    Likes Received:
    0
    Real cool Val! Yer on yer way now. ;)

    TrainClown :)
  8. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks folks! Woody, what do you mean "a door"? Why would I ever need to leave my train room?

    Robin, I thought I'd do all the heavy lifting before you guys got here!! :rolleyes:

    Val
  9. theBear

    theBear Member

    Joined:
    Oct 1, 2004
    Messages:
    207
    Likes Received:
    0
    Val,

    Looks like you are a lot further along than I am. It is good to see things progress.

    Great space [​IMG] to have and it looks like you are doing it up in fine fashion [​IMG].

    Maybe after the holidays I'll get to the hammer, saw, and nails end of things.
  10. SAL Comet

    SAL Comet Member

    Joined:
    May 13, 2004
    Messages:
    428
    Likes Received:
    0
    That's a nice space Val, can we see your track plan?
  11. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

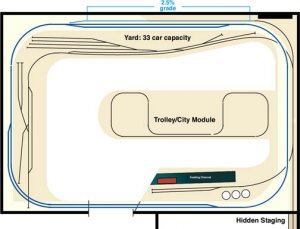

    Sure! Here it is. The blue track is elevated 2.5". From staging on the lower right, a train can take the left turnout into the yard, or it can continue up the grade to join the upper track. The trolley track on the city module is separately wired and powered. The main layout will be DCC, the trolley will be DC.

    The layout is based on Toronto in 1954 - 56 and features heavy industries such as Massey Fergusson and Inglis on the left, and oil shipping, scrap yards and possibly a cement plant on the lower right.

    Now I can just see you guys picturing all the track I could add to the peninsula :D :D but, sorry, there ain't gonna be any street trackage - and that's final!!! As cool as that is, Toronto never had any in the downtown area I'm modelling.

    For those who know the city, left is the west end, and bottom right is the east end (if you straighted everything out). Of course that would put the city in the lake (!), so it would actually be behind the yard.

    I might do a little minor tweaking here and there but basically this is it!

    Val

    Attached Files:

  12. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    The room is looking good Val!
  13. Charles Mark

    Charles Mark Member

    Joined:
    Dec 5, 2002
    Messages:
    63
    Likes Received:
    0
    I have my masonite cut to 24" high and when mounted to wall will be 21 -23' long [N scale] What type of paint did you use for sky and clouds [latex or oil?] Did you use a roller or brush for the sky? Thanks
  14. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Charles, I used latex paint. First a coat of primer and then a coat of Pratt & Lambert "Alaskan Blue", both applied with a roller for a smooth finish. Finally I spray-painted the clouds as per Gavin Miller's stencil method.

    Val
  15. hudsonelectric

    hudsonelectric Member

    Joined:
    Feb 14, 2004
    Messages:
    236
    Likes Received:
    0
    Val...

    We're going in a similar direction. After the holidays I have to finish my RR room and get ready for the benchwork in the Spring. Looking good! Keep us posted on the progress!!

    Russ
  16. Charles Mark

    Charles Mark Member

    Joined:
    Dec 5, 2002
    Messages:
    63
    Likes Received:
    0
    Thanks for the info Val. Nice work all around on your layout so far. I didn't see the dimensions on your plan. It looks large.
  17. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Charles, you didn't see them because I forgot to include them!!! The room is 12' x 16'.

    Val
  18. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

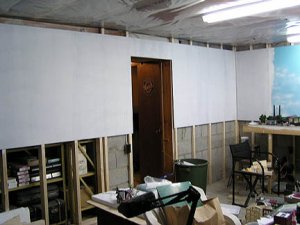

    More progress over the weekend. I got the backdrop up and it has a coat of primer. I wanted to have curved corners, but since I am using full width masonite I found that I cannot get the curves I want. The radius would have to be so big as to seriously cut into the layout, so unfortunately no curves.
    Now I am off to get some 1x4's, and when I get back I can paint the backdrop sky blue. Hope to start on the benchwork this evening.

    Attached Files:

    • bd.jpg
      File size:
      30.9 KB
      Views:
      194
  19. Doc Holliday

    Doc Holliday Member

    Joined:
    Oct 28, 2002
    Messages:
    630
    Likes Received:
    0
    WAY COOL! :thumb: Keep the pics coming.
    Doc
  20. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

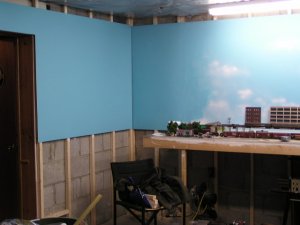

    You asked for it Doc! I've painted all the backdrop blue now. Here's a shot from the same corner as the previous one. You can see I am going to have to do some blending of the clouds that I did much earlier. If it doesn't work I can always paint the whole thing blue and start over.

    Val
