Traction/ Trolley Site

Discussion in 'Traction Thoroughfare' started by CN1, Mar 12, 2005.

  1. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    :thumb: Thanks CN1, I have that one bookmarked.
    He does grand work, I actualy emailed Fred concerning his great Trolly L/O. :wave:

    I am sure a lot of folk have not seen this ;)
  3. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Me too Chris. When I was trying to get the Urban Scene Scale Modellers Club going I emailed him to ask if I could use some of his photos in the gallery. His work is fantastic!!

    Val
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    A very interesting link CN1. Great modelling.
  5. ross31r

    ross31r Member

    Joined:
    Jul 6, 2004
    Messages:
    329
    Likes Received:
    0
    wasnt that featured in Model Railroader a while back?
  6. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

    Yes it was, I think have a copy somewhere,,er,, safe :p ;)
  7. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
  8. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
  9. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    ;) Thanks again CN1, how is your project coming along?
    I am stuck for a while untill the leaky basement is sorted. :D
  10. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Hi Chris.

    I got a few project to finish up before I start on the Traction.
    The Rocco Electric is waiting for me at the hobby shop. My name’s on it, so I’m safe… :thumb:

    I'm almost done Installing Catenaries on the main. Haven't figure out if I will install wires, and if so what kind. :confused: I need access to a few manual switches, and I'm not sure if the "wire" would create "access" problems.

    In the meantime I got myself a new diesel: RS-18 :thumb:

    Happy Easter :wave: :wave:
  11. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    ;) Good Stuff :thumb:
    If you are using Pans then switching to sideings under wire is a breezzzzzz ;)
    If you are using a trolly pole Then you have to obtain frogs to allow the pole to shift to the siding wire at the criticle pull off point.
    If you would like me to post you some overhead wire, let me know how many feet. If you, need over fifty feet :D :D :D :cool: You can order it from a US supplier.
    Looking forward to some pics of your progress. :thumb:
  12. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Excuse my ignorance, but what's a Pans?

    I'm concern that i won't be able to reach the switches (manual turnouts) under all those wires!
  13. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Pans = Pantagraphs :thumb:

    I understand your concern now.

    What I did was use an old method of throwing switches mechanically I will find some pics, back in a jiff.
  14. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

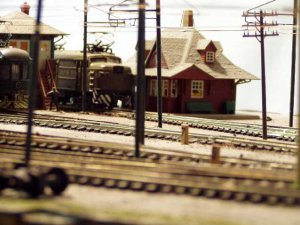

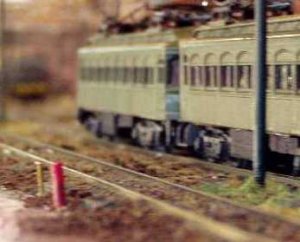

    In these shots you will see my old L/O and the big yard, I had a lot of switches to operate here, I did not want electric throws so I used this old method.

    Attached Files:

  15. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

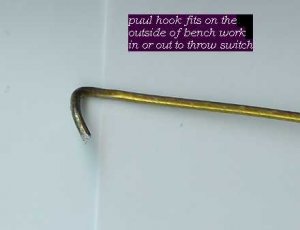

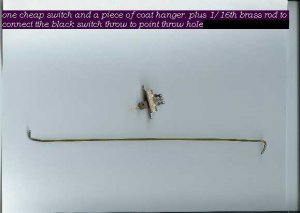

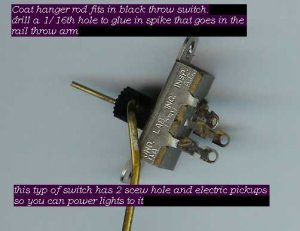

    Here are some self explained pictures of a cheap way to throw your yard turnouts.
    Hope this helps CN1 :thumb:
    Keeps your hand from under the wire. :wave:

    Attached Files:

  16. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Excellent pictures Chris :thumb:

    Yes, good idea :thumb: , but (there's alwasy a "but" right?)
    some turnouts are located on a viaduc! :confused:

    DH'O! :oops:
  17. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

    Attached Files:

  18. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Yes, thank you Chris :thumb: :wave:
  19. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

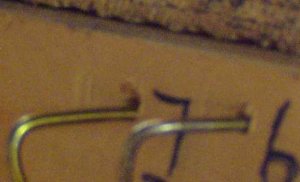

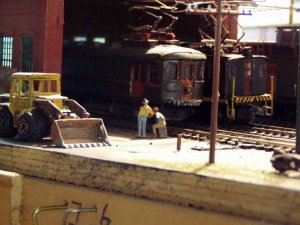

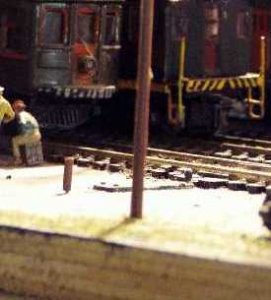

    Glad to help here is a close up I just notice the big yard had one fitted.
    :wave:
    You will have to chisel a small channel out to put the wire down to bench level.

    Attached Files:

  20. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Chris,

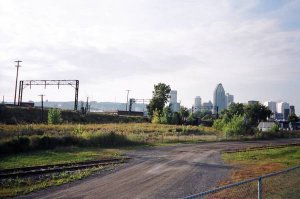

    This is what I use as the prototype for the catenaries.
    Simple and easy, so far :D

    Attached Files:
