Track planning junkies

Discussion in 'HO Scale Model Trains' started by coachC, Jan 30, 2008.

  1. coachC

    coachC Member

    Joined:
    Feb 6, 2006
    Messages:
    70
    Likes Received:
    0
    I was wondering if any of you track planning software junkies could turn Kent J. Johnson's Turtle Creek Central into a 4.5 x 6.5 foot layout... seen here...


    Amazon.com: Basic Model Railroad Track Plans: Small Starter Layouts You Can Build (Model Railroader Books): Books: Kent J. Johnson

    page 43

    click look inside book and type in "turtle creek". It is the only part of the book available for viewing.

    I would like to see the 45 degree crossing removed and that middle section just becoming a spur. I would also like to see a passing siding on the right hand side, and a two track spur on the bottom left.

    I've tried my hand at the software stuff and I just can't get it. I just thought this might give someone a small challenge for fun.
  2. Colton_modeler

    Colton_modeler Member

    Joined:
    Jan 12, 2006
    Messages:
    238
    Likes Received:
    0
    As much as I'd enjoy helping you out with this, I just don't have the time right now, but I'd like to throw a related question out there as well - any of you other 'track planning junkies' draw your plans in AutoCAD instead of one of the track-planning softwares?
  3. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Hey coach, i'll play but I don't have an account there. Can you do a save as on the picture and e-mail it to me?

    Loren
  4. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0

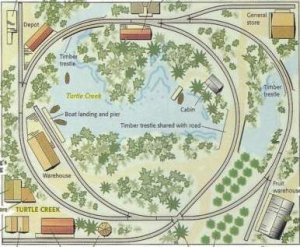

    Do you mean this plan?

    [​IMG]

    Attached Files:

    • tcs.jpg
      File size:
      28.6 KB
      Views:
      145
  5. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0

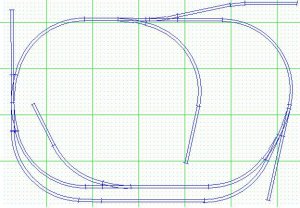

    Turtle Creek Southern, expanded to 4.5 x 6.5, with a passing siding on the south side and no crossing.

    Attached Files:

  6. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0

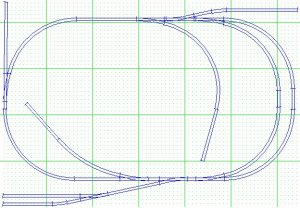

    OK, revised with the siding where you wanted it:

    Attached Files:

  7. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0
    OK, with the siding in the lower right added...

    Attached Files:

  8. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    You have been busy Squidbait.

    Loren
  9. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0
    Thanks, but nah... about an hour of fooling around with XtrkCAD.... would have done it sooner, but I wanted to keep the radii at a constant 18".
  10. coachC

    coachC Member

    Joined:
    Feb 6, 2006
    Messages:
    70
    Likes Received:
    0
    Squid,

    Those are great. I really like the second one. I meant to call it the Turtle Creek Southern instead of Central in my first post. When I finally build a layout I just might use that second plan if you don't mind.
  11. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0
    Coach,

    Glad to help. That extra 6" in the width makes a lot of difference!

    All those plans use Peco small radius turnouts, like the original plan... just so's you know!
  12. Santa Fe Jack

    Santa Fe Jack Member

    Joined:
    Jul 20, 2006
    Messages:
    254
    Likes Received:
    0
    In designing my layout, I originally tried using Atlas RightTrack, but only for a basic prototyping, as it was too limited on the selection of turnouts.

    I can't afford AutoCAD, but did the final (as-built) drawings in Corel DRAW. I will be using these as base drawings for adding electrical stuff.


    You can see the difference in the software in the first two images at the website in my sig.
  13. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    I do but that's because I've usd AutoCad now for 10+ years as a drafter for a civil engineer, a structural engineer, and an architect. I use AutoCad for everything. Sheesh, I use it SOOOO much that a lot of times I find myself trying to use AutoCad commands in the real world... like the UNDO command!:mrgreen:
  14. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0
    Nope, for two reasons - time and money.

    XtrkCAD is free (!!!) and while it has a steeper learning curve than say RTS, isn't nearly as complex as AC. So you're up and planning much faster.

    While XtrkCad is only 2D, personally I think 3D is a nice luxury, (and a bit gimmick in MRR CAD) but a bit over-rated, and certainly not a necessity for good track planning.
  15. NSSD80MAC

    NSSD80MAC Member

    Joined:
    Nov 28, 2005
    Messages:
    35
    Likes Received:
    0
    LOL, Train Nut... I too am a drafter and would love to use the Undo Command in the real world.

    Dan
  16. Squidbait

    Squidbait Recovering ALCO-holic

    Joined:
    Jan 27, 2007
    Messages:
    1,257
    Likes Received:
    0
    Kinda like The Retroactive Abortion Society? sign1
