Track laying

Discussion in 'FAQs' started by Woodie, Sep 6, 2004.

  1. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,227
    Likes Received:
    0
    Guys,

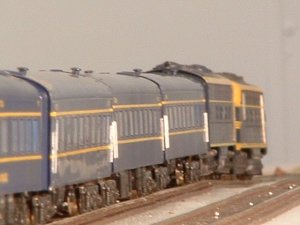

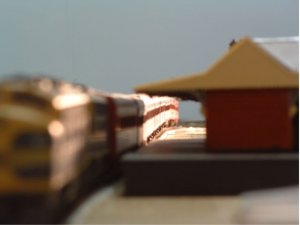

    To the eye? It looks perfectly straight, flat and no ................. bumps. I used a level and long steel ruler to ensure it was straight and flat and it's on roadbed, and flat chipboard base with a solid support. But look what telephoto will do to it!! (Just forget the photo quality. Not enough light to get a good depth of field using a high F stop.)

    AAAAAAARRRRRGHHH!!!!!! Should I be fired as Chieft Tracklayer of the Garahbara Railroad Co??? :eek:

    Attached Files:

  2. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,227
    Likes Received:
    0

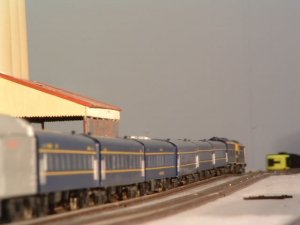

    And here it is not so zoomed in, but still zoomed. (and still wonky lookin' track) Again, forget the pic quality, but the concept is there. That's what I'm after, really, is that long, straight, dusty, desert heat haze look for Garahbara. But that track work is a bit wonky!!! hmmm...... I ain't glued it down yet, just track pins. And it took me hours to get it that level and straight!! Is straight level track a no-no??? :eek:

    Attached Files:

  3. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,227
    Likes Received:
    0

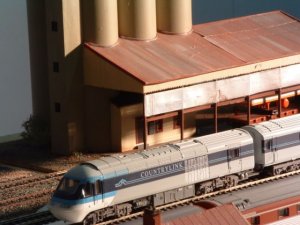

    ..... and just to show that I'm not a rotten picture taker......

    It don't look so bumpy, side on!! :thumb:

    Attached Files:

    • XPT.jpg
      File size:
      51.7 KB
      Views:
      462
  4. McFortner

    McFortner Member

    Joined:
    Sep 9, 2002
    Messages:
    433
    Likes Received:
    0
    I personally would not worry. Have you seen how the prototype looks? Wiggles, bumps, ridges, sways, and so forth. I'd say you captured the real thing quite well.
    Heck, maybe even better! :thumb:

    Michael
  5. rksstl

    rksstl Member

    Joined:
    May 24, 2003
    Messages:
    306
    Likes Received:
    0

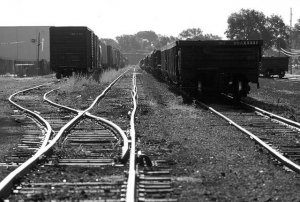

    Looks good to me. I don't know if I've ever seen straight and level track in the real world. Heres an example got this from The Web Yard. Almost thought it was track I laid. :D

    Attached Files:

  6. Gavin171

    Gavin171 New Member

    Joined:
    Aug 29, 2004
    Messages:
    20
    Likes Received:
    0
    Wonky donkey

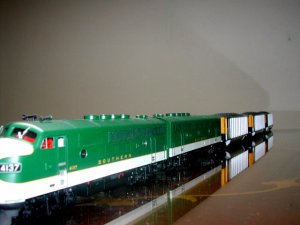

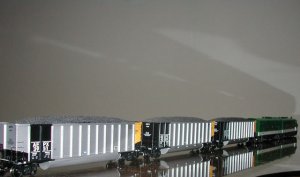

    took these pick's on a glass coffee table with a cheap'o digi camera after seeing your pictures i tryed to get the right angle, the trains are HO and measure about 3ft in length if its not your camera lens that's at fault it may be moisture or heat to wood or track, like the others have said what looks more natural.

    Attached Files:

  7. Fred_M

    Fred_M Guest

    Humps and dips like that (second pix) will cause random decoupling if you are using Kadee couples. Fred
  8. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    How does the chipboard look if you lay a straight edge on it now? I'll bet it's to blame. It's very unstable. All those chips expand and contract in different directions. Blue foam is very temperature/humidity stable and not likely to do this. Track, cork roadbed, liquid nails and such are also stable. I have a portable with no gaps cut in the track that survives swings from Indiana's summer highs of around 100 F and 90% humidity to winters 0 F and near 0 humidity without a problem. If you can get the foam over there, I would start over :(
  9. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Woodie,
    Looks like you have found the right tool for checking for level track! :D :D
    And to think......I was going to invest in a laser, and micrometer depth gauge! :eek: :eek: :D :D

    There are many telephoto shots, that show up the imperfections of prototype construction. If you're not having tracking, or coupler problems, you shouldn't have to make any serious changes to your roadbed.
    Pete
  10. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    It seems a shame that you spent all that money on the new digs and then skimped on the benchwork. I, myself, would never use chip board. Awfull stuff. Nothing but problems no matter what you make out of it. I would say, pull it all up and get yourself some real plywood.

    Just my thoughts.

    TrainClown ;)
  11. Gavin171

    Gavin171 New Member

    Joined:
    Aug 29, 2004
    Messages:
    20
    Likes Received:
    0
    just a thought, tele photo and zoom will cause a concertina effect and really exaggerate imperfections even though it looks straight to the human eye. the proplem you will have is when adding liquid glues for anything chipboard will ballon up as it absorbs the moisture.
  12. davidstrains

    davidstrains Active Member

    Joined:
    Aug 29, 2002
    Messages:
    1,061
    Likes Received:
    0
    It might not be as bad as your camera is making it look. From here it seems to be a bump every place that you have inserted a track nail. You might try loosening each nail and check again with your level and camera. If the track nail is the problem then you cure that when you glue the track down and remove the nails. :) :)

    Show us the results :wave:
  13. kf4jqd

    kf4jqd Active Member

    Joined:
    Jan 14, 2001
    Messages:
    1,213
    Likes Received:
    0
    Hey Woody!

    Long time no talk! :( Not to worry. I have some of the same problems with my layout. Just think, you have the same problems as the real railroads. Some are worst because they wont or don't spend the time or money to fix the track! :(

    Andy
  14. farmer ron

    farmer ron Member

    Joined:
    Jan 18, 2002
    Messages:
    388
    Likes Received:
    0
    Woodie, for looks and appearance value I give you 100 percent looks like you have managed to model the real thing.. on the other side of the coin for good reliable model running sorry its a zero...I would recomend that you stop production now or you will have nothing but flustration later on..the stuff that you are using is very prone to moisture.. that material suckes up moisture right out of the air and when it does that it swells up in a very random patern, exactly what you have now, and it will only get worse.. I agree with train clown, get it pulled off the layout and get some good plywood..Ron..
  15. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Woodie, I agree with Trainclown and Ron - rip up that chipboard and replace with plywood before you proceed any further. I know it sounds like a major hassle, but it's a one-time hassle, whereas uneven track is forever.

    Val
  16. siderod

    siderod Member

    Joined:
    Jan 30, 2004
    Messages:
    336
    Likes Received:
    0
    I concur with the above....rip that crap up and get some plywood.....i use 1/2 inch G1S supported all around the edges. No middle support (on a 3x6 layout) and i got no problems!
  17. Tileguy

    Tileguy Member

    Joined:
    Apr 28, 2003
    Messages:
    810
    Likes Received:
    0
    Hi didly dee,a plywood bed for me :D

    Being a contractor(specifically a tile contractor) OSB Bites!!!Particle Board is Worse!!!
    Good ol fashioned AC plywood will make you look like a highly paid surveyor ;)

    Note-smooth side up.....:)
