The On30 conspiracy

Discussion in 'On30 Forum' started by sumpter250, Aug 26, 2002.

  1. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    I thought I'd open this thread for the "O scale narrow-minded", like me, who are, or aren't, "assimilated". :D :D :D

    I currently have several projects going: The On30 2-8-2; Stretching the Bachmann On30 caboose from 20' to 28';and a 16" X 4' On30 diorama. There's also the intention to build an On30 2-6-6-2, and the 2' X12' On30 lumber switchback.

    I have chosen, for my own reasons, to raise the couplers from the "bachmann" height, a scale 1'- 3", to the height of three foot gauge couplers. 2'- 3"( the dummy coupler on the front of the Bachmann 2-6-0 is at that height). I have also chosen a 6" X 9" X 6' tie, spaced 15" to 18" apart, and code 100 rail. I'm going to use the scale dimensions of the HOn3 NMRA standards gauge to make an On30 gauge to insure clearances,etc. I also intend using Kadee #5 couplers on all rolling stock.

    At some point in time, the NMRA will probably establish standards for On30, and, at that time, I'll make adjustments to conform. In the meantime, I'll do up a pair of idler flats with dual couplers at one end, for compatability.
    After all is said and done, there is really only two "standards" that can't vary: the gauge; and the minimum clearances. The rest is up to individual choice.
    Offerred for your consideration, discussion encouraged. :)
    Pete
  2. Catt

    Catt Guest

    Pete,where's the pictures? Did I miss them?
  3. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Pete where the h*ll are the pictures!!!! :D :p :D :( :D BTW are you talking O code 100 or HO code 100?
  4. Catt

    Catt Guest

    Tyson,code 100 is code 100 no matter what scale its the same height.The difference is the scale .HO scale code 100 is 8 3/4" tall but that same rail in O scale is 4 3/4" tall.(if there were a code 100 N scale track it would be 16" tall. :eek: )
  5. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Catt what I was asking is he using O scale 100 or HO scale 100. I htink I would use HO track as it would look lighter and therefore more to scale for narrow gauge????
  6. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Pictures, we don't need no stinking pictures:D :D :D


    Only one picture, it was posted on Catt's "engine house" thread.
    I'm waiting for Athearn to send a new drive gear for the Genesis 2-8-2 chassis, before any more work on the On30 2-8-2. I'll post the caboose when the construction is done, or maybe a shot in primer.
    There's a trestle on the diorama, so maybe I'll be far enough along for the "locos on bridges" contest.
    Pete
  7. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0

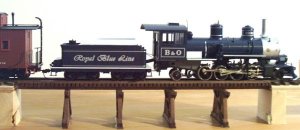

    OK, a quick shot of the 2-8-2 on the trestle,

    Attached Files:

  8. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Got the new main driver from Athearn, and installed it. Now I can play with this loco some more.
  9. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Here's a new shot of the 2-8-2. Added some detail, and provided a little different background, so maybe some of the changes can be seen.

    Attached Files:

  10. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0

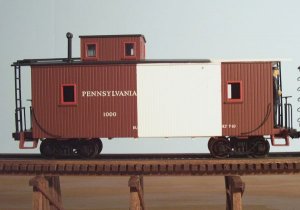

    Thius shot shows the lengthening of the Bachmann On30 caboose. I still need to build the extended roof walk, and the undercarriage.

    Attached Files:

  11. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Uh Pete, they DO look great but don't you need some water in that river????:D :p :D
  12. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Tyson,

    Drought.

    :D :D :D :D
    Pete
  13. Catt

    Catt Guest

    Been thinking of altering my passenger cars (Bachmann Jackson&Sharp's) to look more like the SR&RL cars.I only have to stretch them 10'.
  14. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Catt,
    If the passenger equipment you're talking about is the basic Bachmann 35' cars, you could make two cars out of three. 10' is "four windows".
    Pete
  15. Catt

    Catt Guest

    Thats basically the plan Pete.:D
  16. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Catt,
    Good plan! Or,,two coaches and two combines = two longer coaches, and a baggage car?
    Pictures as soon as you can????? :D :D :D
    Pete
  17. TinGoat

    TinGoat Ignorant know it all

    Joined:
    Aug 29, 2002
    Messages:
    535
    Likes Received:
    0
  18. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
  19. Catt

    Catt Guest

    Maybe sometime next year Pete.It won't be anytime soon.
  20. Catt

    Catt Guest

    There are no set Module standards as such for On30 because there is no such modular organization like NTRAK for On30 yet. Each modular group has their own standards so far.On30 IMHO needs a set of modular standards.
