The M.A.T. goes mushroom

Discussion in 'N / Z Scale Model Trains' started by Matthyro, Jan 15, 2004.

  1. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    In each case I just need a dummy line to go across a 24" section.

    It is a simple crossing, Mainline CVR bisected by NArrow gauge "non-powered" rail.
  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Tyson, remember it was from the posts in narrow gauge and logging that it was folks like you that inspired me to do my logging area in Nn3 instead of the usual N gauge I was going to use.
    Along with track laying I started on the 65 foot turntable. The first photo shows the rough cut through the pink foam.

    Attached Files:

    • tt1.jpg
      File size:
      24.5 KB
      Views:
      158
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

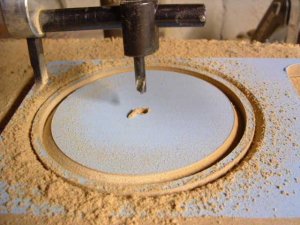

    Next I started cutting the pit wall out of 1/2 inch board using my circle cutter on the drill press.

    Attached Files:

    • tt2.jpg
      File size:
      42.5 KB
      Views:
      158
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

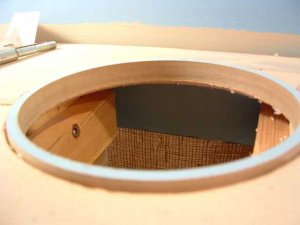

    The pit wall pressed into place.

    Attached Files:

    • tt3.jpg
      File size:
      25.9 KB
      Views:
      161
  5. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

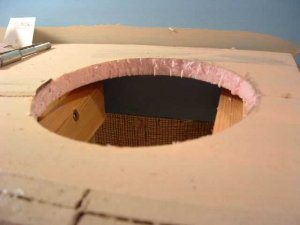

    Here the sub floor of the pit is fitted.
    This is as far as I have got today.

    Attached Files:

    • tt4.jpg
      File size:
      26.9 KB
      Views:
      156
  6. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    You just keep amazing me! Scratchbuilding your own turntable, and in N-scale no less!
    WOW!
  7. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0
    Robin this is something that interest me very much are you building it from a set of plan or a website link?? Or is it something you are designing? Thanks Pat
  8. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0
    Damm wish I had that talent looking good Robin :thumb: :thumb: :thumb: :thumb: :thumb: Rich
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

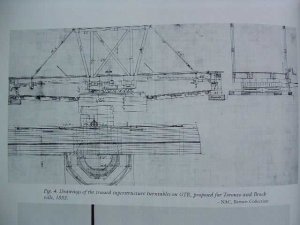

    Pat, I am using this photo as a guide. No other plans. Just cut and fit.

    Attached Files:

  10. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0
    Robin I thank you for the response and can only hope that you post "alot" of progress pics as I cant see how to make one out of that picture. Pat
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

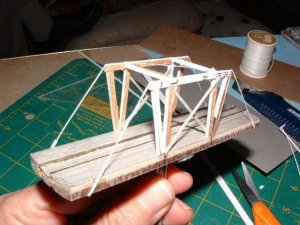

    balanced-beam

    The turntable is one of those balanced-beam types that were used in the late 1800s. I thought it would be appropriate for Nn3 logging.
    Materials used:
    A srtip of masonite for the base,
    Cerealboard.
    Corrugated cardboard 1/16th thick from an M&Ms box.
    A sheet of copy paper.
    Button thread
    White glue
    5 min epoxy.
    A section of Z gauge track.
    The epoxy is used to hold the bolt top to the masonite.

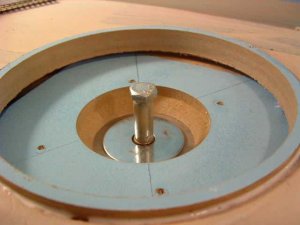

    Here it is ready for painting.

    Attached Files:

    • bb.jpg
      File size:
      42.6 KB
      Views:
      233
  12. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

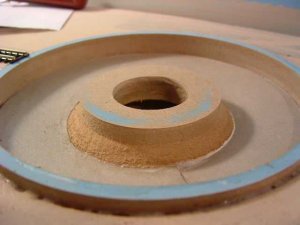

    Got the pit floor in place today. It slopes down from the perimeter to the centre. I cut it out of cerealboard with a slightly greater circumfrence than the pit wall. Then I cut out the circle to fit the centre support.

    Attached Files:

    • pf.jpg
      File size:
      26.5 KB
      Views:
      199
  13. 3phase

    3phase Member

    Joined:
    Nov 13, 2004
    Messages:
    107
    Likes Received:
    0
    is this layout N or Z scale?
  14. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    3phase, the answer is YES!

    Actually I have visited the MAT, it is an amazing N Scale layout.
    Robin has done an amazing job with it.
  15. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    3phase, as Will says my layout is N scale but the logging area is narrow gauge so we N gaugers use z scale track for natrrow gauge and it is known as Nn3
  16. SD90

    SD90 Active Member

    Joined:
    May 23, 2003
    Messages:
    1,161
    Likes Received:
    0
    Amazing work Robin! I can't wait for more pictures!
  17. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

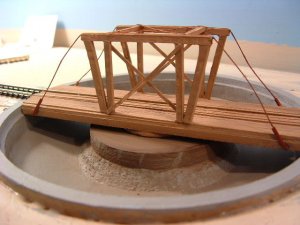

    When I put the two pieces together I noticed we had to call the riggers in to tighen up the turnbuckels.

    Attached Files:

    • bb1.jpg
      File size:
      55.4 KB
      Views:
      133
  18. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Great work Robin!!!! I think Kellogg's owes you a trip around the world - or at the very least a lifetime supply of cereal for all the creative uses you've put their packaging to!!!
