Texas & Carolina

Discussion in 'Track Planning' started by scubadude, Oct 21, 2007.

  1. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0

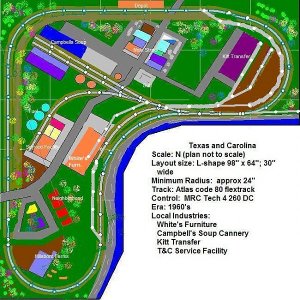

    Ok boys and girls, after over a year of researching and planning I think I finally have reached a decision for my N scale trackplan. It is basically a plan I found on one of the old threads called the Riverway, I think originally in an old MRR issue. After multiple attempts at designing my own, it's best for my first effort to be a proven plan with a few of my own additions.

    The plan is not to scale, I will adapt the plan to my benchwork - an L-shape 98'' across the back, 65'' down the left side and 30'' wide all around.

    I need to keep it simple, with block wiring on the spurs using DC cab control, running no more than 2 engines at any one time.

    I need help to finalize this plan. Hopefully someone out there can help me with elevation changes. I would like for the plan to include a tunnel and bridge, but don't know the best place for it.

    I am open to all suggestions, don't hold back, I know you won't sign1

    Attached Files:

  2. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,579
    Likes Received:
    0
    First off, can you reach that corner?

    Loren
  3. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,591
    Likes Received:
    0
    Hey, I really like it. I am usually partial to point-to-point layouts, but your loop is disguised well. And I very much like your choice of the Texas & Carolina. Very nice.
  4. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    The benchwork is pulled away from the walls in the spare bedroom, so I can get to all sides with no worries.....:thumb:
  5. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    Thanks Gary, I like it too. I tried designing my own, but found it frustrating, so I stole this one fair and squaresign1
  6. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,579
    Likes Received:
    0
    Richard,that is a good trackplan, but from an operations standpoint, I would move the passing track to the front, that way you can also use it as a runaround track. That will shorten the sidings a tad, but I think operations will be better.

    Loren
  7. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    Stupid Question #1 - Do you mean move the passing track to the inside of the loop or do you mean move it entirely to the front of the layout??:confused:
  8. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,579
    Likes Received:
    0
    I would move it to the inside of the mainline track in front. That way it will serve triple duty as a runaround track, yard lead and passing track. That would also leave your mainline well defined. I hope I explained this right, if not I can redraw it for you.

    Loren
  9. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,579
    Likes Received:
    0

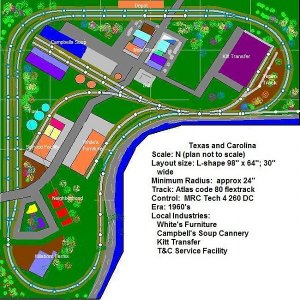

    Richard, my skills at paint are not to good, but this is my idea. The yellow line I added. And then you would not need the other track in back.
    Loren

    Attached Files:

  10. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    I'm sure you have explained it right. I am severely challenged at this whole thing. I cannot change this trackplan as I only have Paint to play with. So if you're willing, I'm begging for all help...
  11. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    Gotcha, Loren..Thanks, I like that idea. I'll see if I can get it drawn in...
  12. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,591
    Likes Received:
    0
    I like Loren's idea also. It will put all the operations right there on the front of the layout so uncoupling and switching is accessible from the same side. Good catch, Loren!
  13. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,579
    Likes Received:
    0
    Ah schucks,twas nothin. I'll see if i can redo it i xtrk.

    Loren
  14. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0

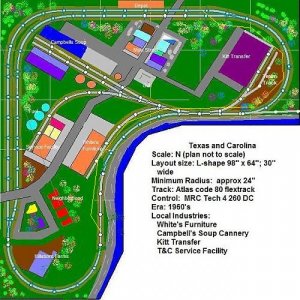

    Forgive the crudeness, but how about this? Remember, nothing's to scale and I am making real time adjustments on the bench as I go, this is a general plan...

    Attached Files:

  15. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    Wow, I didn't even know I HAD a runaround track, yard lead and passing track!!!!sign1sign1sign1
  16. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,579
    Likes Received:
    0
    That is it ! All you have to do is take the turnout off the mainline that leads to the yard-industry, and move it to the runaround track. The idea is, if your switching in the yard, you won't pull out and block the main.

    Loren
  17. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    balloon6I LIKE IT!!
    Thanks, Loren...
    Now on to a bridge and tunnel...any ideas??? Anyone??? Buehler??.....
  18. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,579
    Likes Received:
    0
    Sorry for the double post.
    Richard, you have picked a good track plan:thumb:. There is a lot of room for growth later on. For instance, you could put a siding down the back for a station and have a commuter. And the way it would be now, you can run 2 trains like you want, or you can run a train and switch the yard and industries at the same time. The more i look at it the more i like it.

    Loren
  19. inqzitr

    inqzitr Member

    Joined:
    Oct 20, 2007
    Messages:
    37
    Likes Received:
    0
    What about a come and go design? Do you have access to the back portion of the layout? You could use this for holding and staging, and would add a lot to the operational nature of the layout.
  20. scubadude

    scubadude Member

    Joined:
    Sep 5, 2006
    Messages:
    308
    Likes Received:
    0
    Thanks for the idea inqzitr. I am thinking about adding a staging track somewhere....
