tatra railcar build

Discussion in 'Armory & Military' started by NULLMOON, Jan 12, 2008.

  1. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0

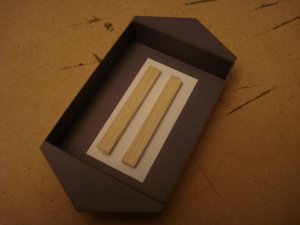

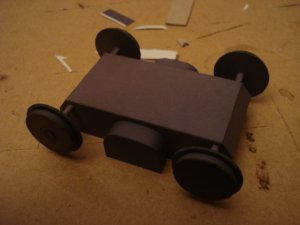

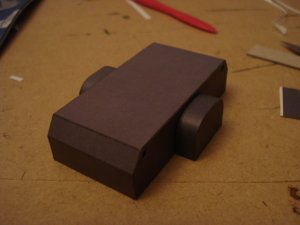

    i thoght i would start a build thread that for once may acully get finished this is gpms tatra railcar which i picked up from the closing spi shop this is the new 3 variation kit not the older single version there is not 3 kits here just 3 different bodys the origonal polish a german un-armed and the great looking Czech version this is were i am at so far the wheels/chassis and engine box complete

    Attached Files:

  2. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0
    Cool !!!
    I'm waiting to see the progress
  3. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0

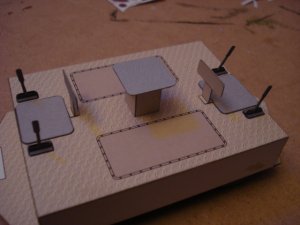

    gubbins! everthing done but the foot pedals there are lots of big holes in this vehicle doors,hatches etc so care has to be taken over the interior as its all very visable it has two drivers positions for either direction the center seat is for the gunner/observer/radio operator depending on the variant

    Attached Files:

  4. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0
    Problems!

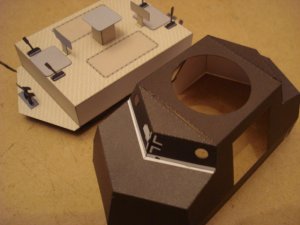

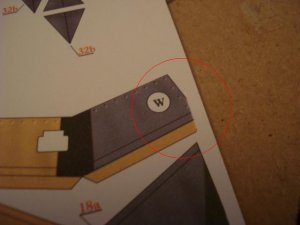

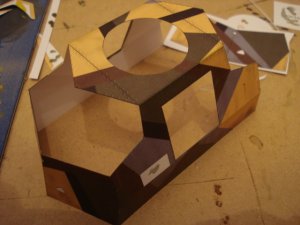

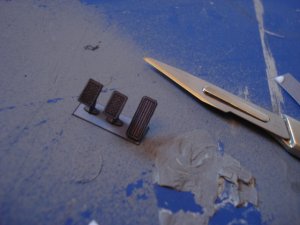

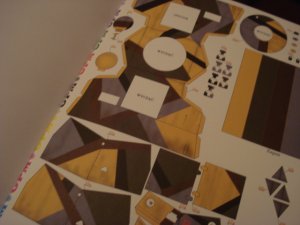

    i began work on the outher shell and completed the foot pedals onlly to find.......there is a misprint on the Czech version with the whole corner missing this is not a real loss as im going to now build the german variant(the re-paints are much better than the origonal polish ) but its anoying after painting all those edges:curse: it something gpm needs to address

    Attached Files:

  5. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0

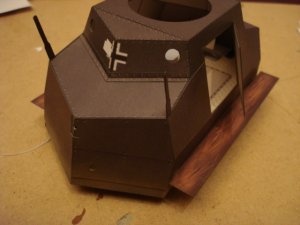

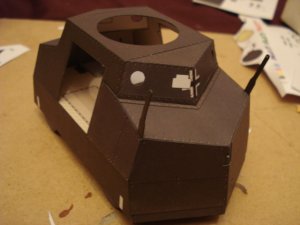

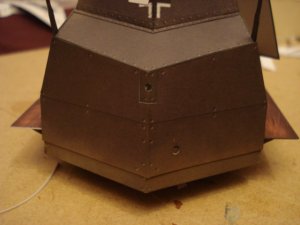

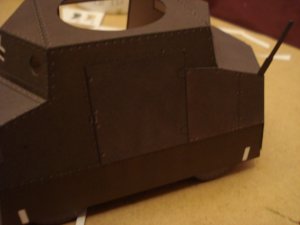

    this is the german "shell" this variant lacks a gun but has a radio and extra armor this kit goes together very well no misfits at all the only thing that i had to work around was that several detail went under the extra armour plate so i glues an extra layer of card to the reverse of these parts and left gaps for the small parts(hinges,ariel poles)on the real version these parts are all under the plate the model has a very subtle weathering paintjob so i added a lighter rust/dirt tone on the lower parts of the vehicle i could also have done with making the running bords a bit thicker they look a bit flimsy to hold the weight of a german soldier:mrgreen:

    Attached Files:

  6. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0

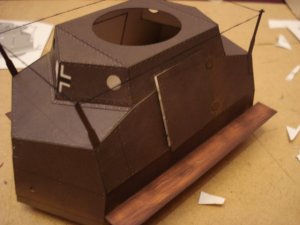

    last update for this morning added thread for the ariel bit more weathering..apolagies to anyone with a slow internet conection theres alot of photos here:oops:

    Attached Files:

  7. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0
    Thoose wires are also on the polish kit? I've seen the other Tatra drasines build and they don't have the "instalation"
  8. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,543
    Likes Received:
    0
    That's some very nice looking, clean work, Nullmoon!:thumb:

    Really nice job so far! Patiently waiting for more!:twisted:

    Russell
  9. gippolot

    gippolot Member

    Joined:
    Sep 18, 2006
    Messages:
    218
    Likes Received:
    0
    Great looking work Nullmoon.

    Please keep it coming. :thumb:

    Andrew
  10. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0

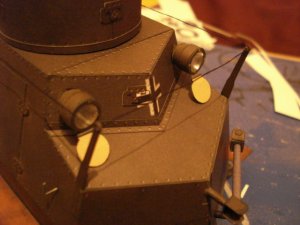

    headlamps and a few more hull details the headlamps took 3 hours to buildhamrso this is a small update its starting to look like a real vehicle now

    dragos..as far as i know the wires were only on the german conversion of the tatra they removed the guns and installed a radio it was seen as a failure when it was introduced it had a underpowered engine and had problems with traction it was concived as a scout vehicle the germans decided much better use could be made of it with a radio to relay information back to its parent train rather than having to escape from a confrontation and return information itself

    Attached Files:

  11. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0

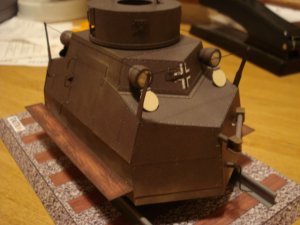

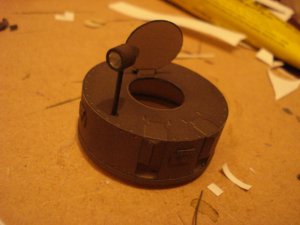

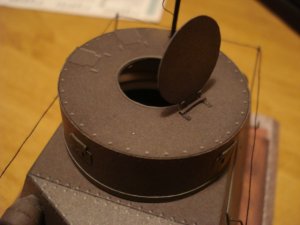

    completed turrent and a few smaller hull details and the final completed model +base:mrgreen:

    Attached Files:

  12. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0
    this thread hasnt generated much interest the tatra being one of those obscure little vehicles nobodys heard of so i hope ive done something to give it a bit of attentionaussieoverall its a real easy kit and a worthy buy the only problem that surfaced was a corner missing from one of the parts on the Czech variant due to misprinting i dont think it would have gone to far to expect gpm to issue this kit with the possiblity of making 3 seperate models

    Attached Files:

  13. looker

    looker Member

    Joined:
    Jun 24, 2007
    Messages:
    30
    Likes Received:
    0
  14. cgutzmer

    cgutzmer Guest

    WOW! That has some great clean lines. Very nice work you have there :D

    Thanks for sharing and looking forward to more!

    *edit* like the thread work! Did you paint the thread after it was attached? Looking at the top light specifically. :)
    Chris
  15. dansls1

    dansls1 Member

    Joined:
    May 7, 2007
    Messages:
    652
    Likes Received:
    0
    Looks really nice!
  16. NULLMOON

    NULLMOON Member

    Joined:
    Nov 5, 2006
    Messages:
    596
    Likes Received:
    0

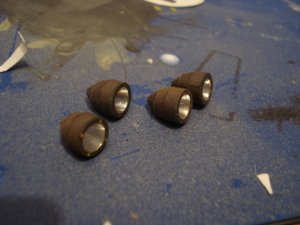

    top light is 10lb fishing line it wont corner unless it was really tight so i used polyester thread for the rest of the "rigging" as its not fluffy like cotton thread but still goes around corners sharply painting makes thread look clumpy so i used a sepia color i only painted the fishing line post assembly the lights are a tin foil cone with a silica ball as a lightbulb(silica ball from the little bags that come in things and say "do not eat"...........:p) its an idea i spotted in another build thread i really dont like "fake" glass:mrgreen:
  17. JackFrost

    JackFrost Member

    Joined:
    Jun 8, 2007
    Messages:
    78
    Likes Received:
    0
    Nice build NullMoon , clean and sharp:mrgreen: love the way the lamps turned out
  18. cjwalas

    cjwalas Member

    Joined:
    Nov 29, 2006
    Messages:
    354
    Likes Received:
    0
    Very nice build! I did the earlier version, but as you mentioned, the newer options look better. Well done!
    Chris
  19. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0
    A very unusual vehicle and a great build I enjoy following it.
  20. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    847
    Likes Received:
    214
    Those lamps really did it!!
    Really great work!!
