Resource Steam locomotive wheel connecting/driving rods.

Discussion in 'Railroading' started by Bob43, Aug 27, 2016.

  1. Bob43

    Bob43 Model Designer Extrodinaire Cornerstone Member

    Joined:
    May 4, 2007
    Messages:
    278
    Likes Received:
    14
    Steam locomotive wheel connecting/driving rods.

    Wheel train: As far as the connecting rods of the driving wheels are concerned, are the 2 sides of steam locomotives a) mirror images, or b) one side rotated 180°, or c) rotated 90° (to hinder locking)?
    Or, in other words, when the main connecting rod of one side is at its lowest position, the position of the connecting rod on the other side is a) also in lowest posiotn, or b) highest position, or c) halfway between the 2?
  2. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    Hi Bob! I also had your doubt when approached a steam locomotive build (it is not a cardmodel but the question is the same... btw the model is still a work in progress!) and, according to various drawings and after having asked to train experts I concluded that the wheels are rotated 90° on the two sides. Now I don't remember which one is ahead and which is behind (left/right), I must find my scribbles... I'll check as soon as I'll be home again and let you know.
  3. draccus

    draccus New Member

    Joined:
    Jul 17, 2016
    Messages:
    13
    Likes Received:
    16
    Hi Bob43

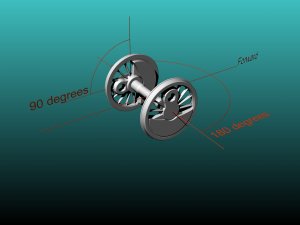

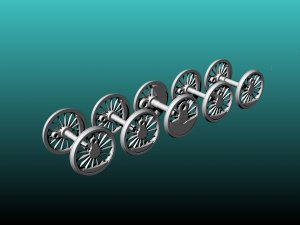

    This is only for two sided engines steam locomotives. All wheels are the same each side but rotated horizontal by the center axle by 180* and 90* vertically. This photo will reveal Your doubt driveset.jpg driveset1.jpg
    zathros and Tonino like this.
  4. Bob43

    Bob43 Model Designer Extrodinaire Cornerstone Member

    Joined:
    May 4, 2007
    Messages:
    278
    Likes Received:
    14
    Thank you both - that's solved my question. Can't imagine that it makes any difference whether one side is 90° BEFORE or AFTER the other side; the effect is the same.
  5. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    Yes, @draccus your images are the best explanation to this old question. Thanks for posting. This scheme is a very useful reference and I'll keep it handy when I'll put my hands on my Pacific again. The question whether the left side should be 90° forward or backward compared to the right side is probably insignificant. I don't know if different locos had different placement of right/left angles or, instead, the arrangement showed above is universal. I'll refer to this scheme anyway and I'm sure it will be fine.
  6. Bob43

    Bob43 Model Designer Extrodinaire Cornerstone Member

    Joined:
    May 4, 2007
    Messages:
    278
    Likes Received:
    14
    Tonino: I like your avatar. Can you tell me what tram/locomotive it is?
    Bob
  7. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    Yes, I'm glad you asked it.... It's a nice story about an old train that we all in San Marino love very much.
    I made a build thread here about the cardmodel you see in my avatar and here is the full story behind it!
    Hope you can enjoy both ;)
  8. Bob43

    Bob43 Model Designer Extrodinaire Cornerstone Member

    Joined:
    May 4, 2007
    Messages:
    278
    Likes Received:
    14
    Tonino: Lovely model, but where can I download it to build?
    Bob
  9. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    I'm sorry Bob: the model is not available yet. As I explain in the post it was realized to celebrate the 80° anniversary of San Marino-Rimini Railway opening and the intention was to put it on the market shortly after my test build. Unfortunately the things went another way (too long to explain) and the project is now in stand-by (not really abandoned but waiting for some input from the people who commissioned it). Now I'm trying to obtain the rights to publish it by myself (it would be a shame to let it in a drawer forever) but I don't know if I will succeed... Stay tuned! If there will be good news this is the place where they will be announced.
    zathros likes this.
  10. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,704
    Likes Received:
    3,532
    Bob, your train drive is awesome!! ;)
  11. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,704
    Likes Received:
    3,532

    Isn't that along the tire is only flat one one side? It seems right to me, but I don't know diddly about trains? The wheels will be in their relevant positions regardless of initial position? Just asking. ;)
  12. Markus Schweizer

    Markus Schweizer Member

    Joined:
    Sep 4, 2008
    Messages:
    37
    Likes Received:
    12
    Hello,

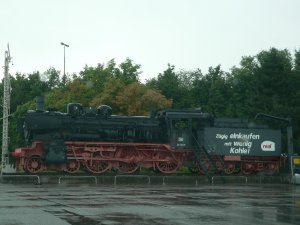

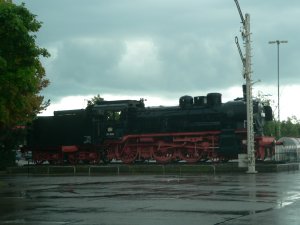

    if it helps: here are some photos of a real steam engine (German 38 3650) where You can see the position of the wheels from both sides.
    The locomotive is placed at a parking area of a supermarket.

    P1130290_.jpg P1130292_.jpg
    Chris74 and Tonino like this.
  13. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,704
    Likes Received:
    3,532
    Well appreciated Markus. :)
