Star Trek TOS:- "The Trouble With Tribbles" K-7 Diorama - micro build log

Discussion in 'Science Fiction & Fantasy' started by linweseregon, Apr 15, 2014.

  1. linweseregon

    linweseregon Well-Known Member

    Joined:
    Nov 24, 2013
    Messages:
    275
    Likes Received:
    512
    I'm going to skip the blow-by-blow account of the building of the USS Enterprise and the Gr'Oth - build logs for Constitution and D7 class ships are presented in other posts.Once again I'm using Glen Jupp's version of the Enterprise and I'm using Spaceagent-9's design for the Gr'Oth. The design for Deep Space K-7 that I settled on is D-Whale's. The instructions are very comprehensive and it's been a straightforward build so far. My thanks to all three designers :).

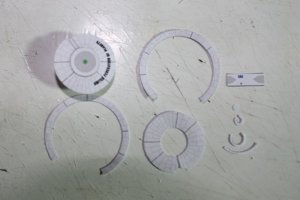

    Starting with the upper module of the central column, the parts are as shown:-
    I didn't have a great deal of contrast between the shade of the disc and the shade of card I was printing on, so I had to do a lot of re-trimming and dry-fitting to achieve a good fit. I also omitted the three small, internal supports as they're not really necessary at my scale.

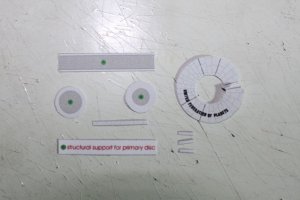

    Continuing to build the upper module required these additional parts:-
    The dome on the bottom of the cylinder at the side was particularly intricate, but the blunt end of my modelling knife provided a perfect base for shaping these tiny pieces.

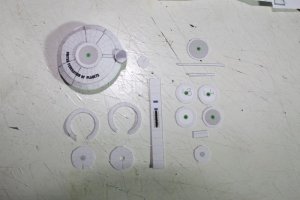

    The next stage is the lower module of the central column:-
    I've been building the Gr'Oth while waiting for glue to dry on the station - I've built so many D7s now that I can practically do it blindfolded ;). I'm also going to use a previously built Enterprise since I now have three at this scale!
  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,516
    Likes Received:
    2,454
    It looks like you are off to a good start on this one!
    linweseregon likes this.
  3. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,047
    Likes Received:
    3,685
    I knew you would do it! :)
    linweseregon likes this.
  4. linweseregon

    linweseregon Well-Known Member

    Joined:
    Nov 24, 2013
    Messages:
    275
    Likes Received:
    512

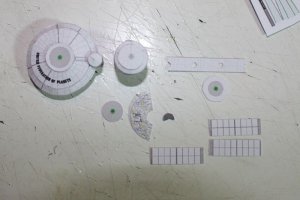

    The cone on top of the central column and the arms for the other three modules came next:-
    These were wrapped around a needle to curve them into tubes - even a cocktail stick was far too big! I then started on the outer modules:-

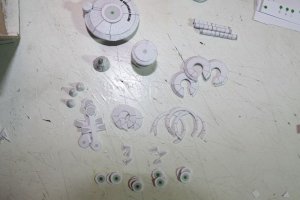

    This is probably the lower limit of the size I could build the station - the tips of the cones were just able to be wrapped around the point of a cocktail stick. More module parts then had to be cut:-
    Koloth's (aka The Squire of Gothos) ship is also coming along nicely.
    zathros, Revell-Fan and Rhaven Blaack like this.
  5. linweseregon

    linweseregon Well-Known Member

    Joined:
    Nov 24, 2013
    Messages:
    275
    Likes Received:
    512

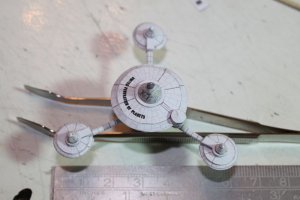

    Put everything together and the result is a Deep Space K-7 measuring 2 1/2" (63mm) in width:-
    zathros, D-WHALE, Cforrest900 and 2 others like this.
  6. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806
    How will you ever make all those millions of tribbles that small?:confused:
    ASC Mclaren likes this.
  7. D-WHALE

    D-WHALE Utopia Planitia Engineer

    Joined:
    Aug 25, 2007
    Messages:
    594
    Likes Received:
    257
  8. linweseregon

    linweseregon Well-Known Member

    Joined:
    Nov 24, 2013
    Messages:
    275
    Likes Received:
    512
    @bgt01 lmao :D. I used my ACME Shrink-O-Matic and put them all in the Gr'Oth ;)

    @D-WHALE Thank-you Marco :) - looks like I'll need to hit the cone tips with my red pen!

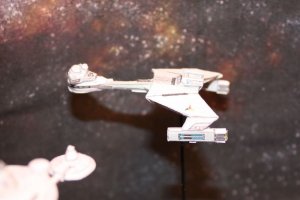

    I've shown close-ups of the Enterprise elsewhere, so here's a close-up of the Gr'Oth:-

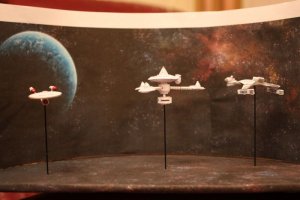

    I cut up a cardboard box and pasted a starscape to an edge. I then curved one of the sides and pasted some more starscape (with a planet! :eek:) to the curve. The space station was mounted (fairly) centrally with the Enterprise and Gr'Oth circling on opposite sides. There are no lights this time I'm afraid - there just isn't room inside K-7 and the amount of fibre optics needed would make it look like a demented jellyfish ;)
