SPEED BUILD Class 20 Diesel

Discussion in 'Railroading' started by David H, Jan 3, 2008.

  1. David H

    David H Member

    Joined:
    Nov 2, 2005
    Messages:
    523
    Likes Received:
    0
    Today rather than write a book review and do a job application I propose to see if I can build Ray Morris' British Rail Class 20 Type 1 Diesel Locomotive IN A DAY .

    I visited the National Railway Museum in York on New Years Day, both work and fun! I am a lucky man! I know little of railways and locomotives but I would like to change that.

    The card model is available here:

    http://www.trspartan.freeserve.co.uk/card_models.htm

    It's a nice looking little loco, looks like it hauled coal for most o its life. A Bo Bo I believe? Scale is 00, which means little to me. I would like to explore O gauge / scale in the future as these make a good sized engine. I suppose 00 is half that so about 1:88?

    Kick off was about 10:30 AM GMT.

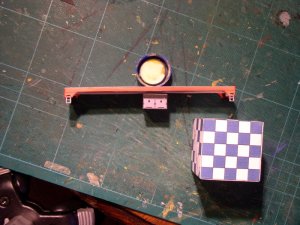

    Chassis underway. I added some thicker card strips to beef it up a little, otherwise just score and cut. I backed the steps and cut them out.

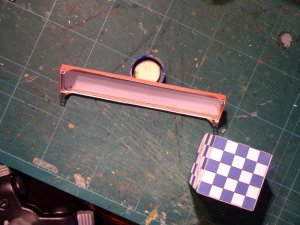

    Finished the chassis and prepared the central equipment box. Contains braking system and stuff I suppose?

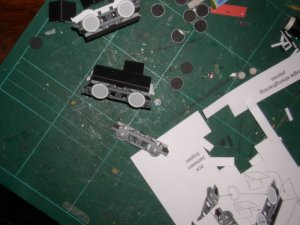

    Bogies are under way. Again a certain amount of card doubling and cutting out white areas. Ray's construction is neat and efficient. Only praise.

    D
  2. David H

    David H Member

    Joined:
    Nov 2, 2005
    Messages:
    523
    Likes Received:
    0
    Well I managed it.

    In general it went together very easily. I deffinately rushed a bit too much and have ended up with a few rough areas. Down to me rather than Ray's design.

    I think the doors which are recessed and the cab could be done a lot better. For a start I would print the doors on thinner stock as the 120gsm card was just too thick. The lower edge of the cab could be reinforced with a continuous strip of thin card as is the area below the door is too thin.

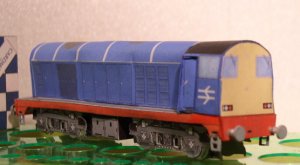

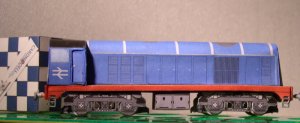

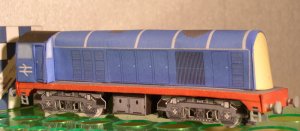

    Some pictures.

    Library - 5163.jpg

    Library - 5167.jpg

    Library - 5169.jpg

    Quite like ship building I enjoyed myself. I think I will be building some narrow gauge next. Any one know if there is a Double Fairlie kit available?
