SPACE: 1999 MARK IX HAWK

Discussion in 'Science Fiction & Fantasy' started by bgt01, Jan 19, 2015.

  1. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806
    Thanks so much to @zathros and @Revell-Fan for all the kind words, and to all the folks who've made such nice comments in all my builds. It's really nice to be part of something positive and fun in our "dark and gritty" world. This model has been a real challenge and I'm determined to finish her up right. Helping with my brother's new project (a 1965 Chevy Biscayne) has taken me away from the build desk, but I see the Hawk sitting there every day and I've got vacation time coming so she's going to see some love. My early New Year's resolution is to finish up some languishing builds (ST Phase II Oribital Office :hammerhead:) before starting the new ridiculously detailed projects in the pipeline. However, since @Revell-Fan said such nice things, I might have bring one of his incredible projects to the front. It feels like I've waited 500 years to start it! ;) More to come, soon. Thanks again, everyone. You guys ROCK!
    Tonino and DanBKing like this.
  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    @bgt01 I would love to build this version of this model!!!
    Are you going to releasing this kit any time soon???
  3. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806
    Thanks @Rhaven Blaack . Glad to have you back on the boards. I'd be happy to post my redone parts if possible. This is based off JayBats original model and I sent him an email about sharing my work but have had no response. I redid a lot but figured I need to do that. Unless you higher-ups say it's okay then I'll share for sure. Real life has kept me away from the desk but I have vacation coming so I hope to get some more done. I'm in the slow, fiddly bits part. :hammerhead:
  4. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    @bgt01 With all of the work that you have done with reworking the parts, you have created a whole new model that is based on Jaybats model. So with that being said, I would say go ahead and (once you are finished) release the model (that you have created as a whole).
    Like I said, I would love to add it to my collection.
    bgt01 likes this.
  5. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806
    Heard from JayBats and he says "no problem" with releasing my revised files. Now all I have to do is FINISH THE THING!!!!! :blueface:
    DanBKing, Rhaven Blaack and Tonino like this.
  6. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    I am glad that you were able to get Jaybats OK. Although, with the changes that you have made, you have completely designed a whole new model (using Jaybats model as a guide). You have done a PHENOMENAL JOB on this project!!!
    I am looking forward to your model. I will be adding it to my list!
  7. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    YEE-HAAAA!!!!!! :Bravo::bowdown::Bravo::bowdown::Bravo:

    Thank you, Jay & bgt!!!
  8. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

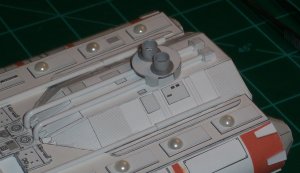

    LOWER THRUSTER

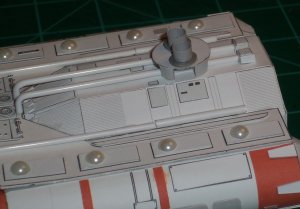

    More progress on the bottom of the Hawk. I scratch built the lower rear thruster on the bottom of the rear fuselage. I did the artwork in Illustrator, printed out the disc and glued it to 2mm chipboard. I edge-colored the chipboard with silver Sharpie. The four “legs” were cut out of scrap gray from earlier parts. They are trapezoid shaped with the wide ends attached to the disc. I made the legs a little tall, then trimmed them until the part fit right over the piping. I glued a second disc to 2mm chipboard and cut out the bottom of the thruster cylinders. I colored the edges silver. I cut 5mm strips of gray card stock and made the thruster cylinders.

    Attached Files:

    • q1.JPG
      File size:
      455.6 KB
      Views:
      9
    • q2.JPG
      File size:
      492.1 KB
      Views:
      10
  9. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

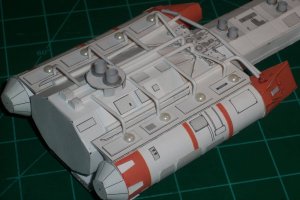

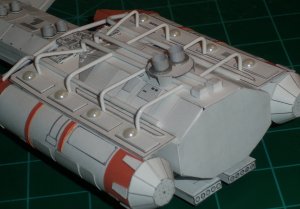

    LOWER FRAMEWORK

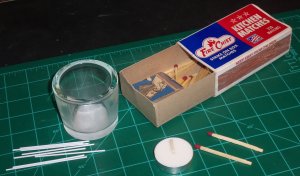

    Here you see my high-tech styrene bending tools. The tea candles are cheap, and with the candle holder I’m using it makes a nice set distance between the candle and the styrene.

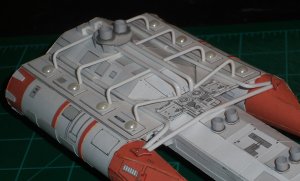

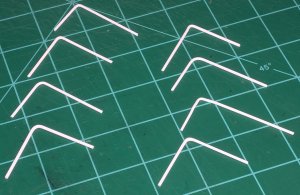

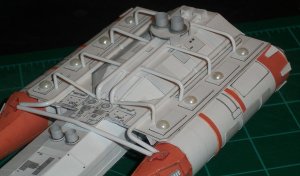

    The lower framework is just 8 styrene rods bent at an angle. The neatness of the bend depends on how fast you bend it once the styrene softens. I’m still getting a handle on it and some rods had to be reheated and rebent. Six rods are at 90-degree angles. The two toward the front are at a steeper angle. I made all the rods longer than I needed, then used my X-acto to trim a little at a time until each fit like I wanted. A little Super Glue gel on each end and everything is locked in place. Looking at my reference photos of the big Hawk model, I think the rod I used is a little too thick. However, I can live with it.

    Attached Files:

    • q3.JPG
      File size:
      690.2 KB
      Views:
      25
    • q4.JPG
      File size:
      631 KB
      Views:
      25
    • q5.JPG
      File size:
      724 KB
      Views:
      25
    • q6.JPG
      File size:
      614.3 KB
      Views:
      25
    • q7.JPG
      File size:
      612.9 KB
      Views:
      26
    • q8.JPG
      File size:
      713.1 KB
      Views:
      26
  10. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,665
    Likes Received:
    1,082
    Your detailing on this model is superb. Very clean and tidy.
    Really nice work.
    bgt01 likes this.
  11. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    Awesome! :)
    bgt01 likes this.
  12. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    I see that you are putting in some mixed media material. I like the added effects and detail. These parts really make the model pop and stand out!
    I was wondering if you are going to make paper versions of those parts for the updated kit?
    bgt01 likes this.
  13. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806
    I'll try to come up with some kind of paper equivalent for the mixed media parts, but I'm not a model designer so we'll see how well that turns out. I never expected this to turn into a "kit" so I didn't plan on anything like that, so I'll have to reverse-engineer some stuff. I do plan on providing the info for the mixed media parts I used.
    Rhaven Blaack likes this.
  14. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    Like I said, you are doing a FANTASTIC JOB!
    I have faith in you and your skills. I know that you can pull it off. Not only that, but I am certain that there are many designers here who can help with making those parts. Just reach out to them.
  15. bigpetr

    bigpetr Designer/Master Modeler

    Joined:
    Jan 27, 2016
    Messages:
    375
    Likes Received:
    331
    Beautiful. Details you are putting in are realy nice. For me, this model have that "punch":)
    bgt01 likes this.
  16. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

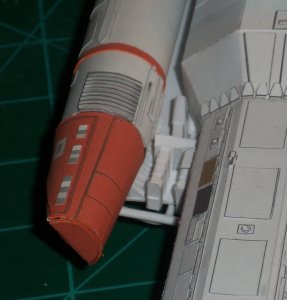

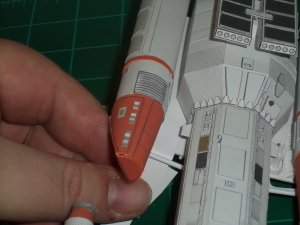

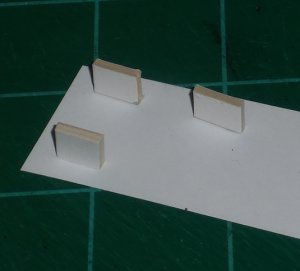

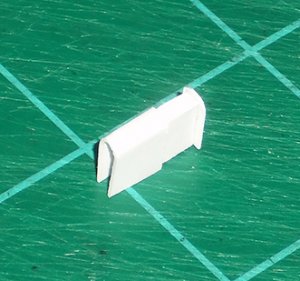

    STARBOARD GREEBLE

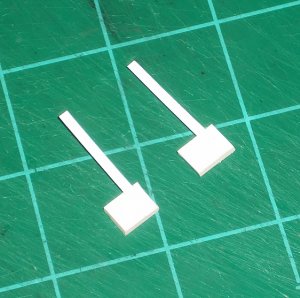

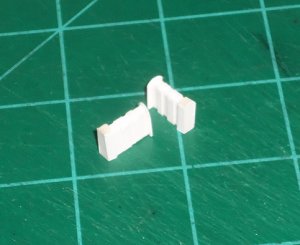

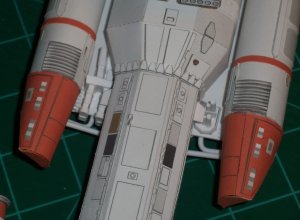

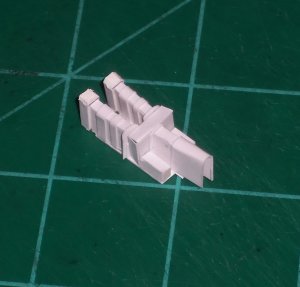

    Inch by inch, progress is happening. I’d been avoiding this part because I wasn’t sure how to make it because it’s a complex piece on the studio model. Since my model is a much smaller scale, I decided to do what the real model builders would do and create a basic copy of the big part. The whole thing was done by looking at pics of the part and just cutting pieces of 2mm mounting board and 67 lb. white cover, adding card stock on edges and for detail.

    To make sure this big part would fit in that tight space, I cut a piece of scrap card until it fit between the booster and fuselage. I glued the parts to this base and slid the whole thing in place.

    Of all the work I’ve done on this model, this is by far my least favorite. It’s not a very detailed or accurate copy of the original part. I only have a few good pics of this area and even then gauging size and detail is a bit of guesswork. Couple that to my amateur skills and it’s only going to be so good. Luckily, this and the piece on the port side aren’t parts that get a lot of attention. Unfortunately, I’m going to run into more of this when I get to the greebles around the main engine.

    As it stands, I take measurements of the scratch-built parts I do and some form of these will be included when I release my files of this kit.

    Attached Files:

    • r1.JPG
      File size:
      165.9 KB
      Views:
      14
    • r2.JPG
      File size:
      323.6 KB
      Views:
      15
    • r3.JPG
      File size:
      181.7 KB
      Views:
      14
    • r4.JPG
      File size:
      148.8 KB
      Views:
      14
    • r5.JPG
      File size:
      809.3 KB
      Views:
      15
    • r6.JPG
      File size:
      1.1 MB
      Views:
      14
    • r7.JPG
      File size:
      1.5 MB
      Views:
      15
    • r8.JPG
      File size:
      2.8 MB
      Views:
      16
  17. Tonino

    Tonino Member

    Joined:
    Apr 15, 2004
    Messages:
    657
    Likes Received:
    1,097
    It seems very good to me! Nothing less than the overall quality of this fantastic build.
    I would like to have just half of your "amateur skills" !!!
    thumbsup
    bgt01 likes this.
  18. bigpetr

    bigpetr Designer/Master Modeler

    Joined:
    Jan 27, 2016
    Messages:
    375
    Likes Received:
    331
    Another details, greatthumbsup
    bgt01 likes this.
  19. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,523
    I am a great believer in mixed media. Sometimes, it can really take the model to where it needs to be, and paper just doesn't cut it. :)
    bgt01 and bigpetr like this.
  20. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    This is a FANTASTIC BUILD!
    The amount of detail that you are putting into this model is REALLY GOOD!!!
