Snap Switches

Discussion in 'HO Scale Model Trains' started by racer25j, Jan 23, 2007.

  1. racer25j

    racer25j Member

    Joined:
    Jan 16, 2007
    Messages:
    47
    Likes Received:
    0
    Forgive me if this is a stupid question but I need a little info on the atlas remote snap switch. What is required to make it work besides of the switch assy and a power supply from say for instance, the accessory terminal of a power supply?

    Thanks in advance.

    Jeff
  2. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    Jeff, is this what you bought?http://www.atlasrr.com/Images/Track/Trackphotos/52.JPG
    If so, there is also a momentary contact push button that you need. If not, let us know and we will figure out what you need.

    And, there is no stupid questions if you get the right answer.:D

    Loren
  3. racer25j

    racer25j Member

    Joined:
    Jan 16, 2007
    Messages:
    47
    Likes Received:
    0
    I ordered up a few of these left and rights for a layout I will try to attempt.

    [​IMG]
  4. Thoroughbreed

    Thoroughbreed Member

    Joined:
    Aug 4, 2006
    Messages:
    419
    Likes Received:
    0
    Youve got everything you need other than a power supply. You can daisy chain the momentery switches together to share power from one source.:thumb:
  5. racer25j

    racer25j Member

    Joined:
    Jan 16, 2007
    Messages:
    47
    Likes Received:
    0
    Great, that's what I had thought. Does anyone know of a site that shows a simple wiring diagram that links two or more to one supply? I plan on using my bachman controller accessory terminals for power but I wasn't sure how I was going to hook them up.
  6. Thoroughbreed

    Thoroughbreed Member

    Joined:
    Aug 4, 2006
    Messages:
    419
    Likes Received:
    0
    I beleive this is what your looking for? I'm no artist, but its close.
    [​IMG]
  7. racer25j

    racer25j Member

    Joined:
    Jan 16, 2007
    Messages:
    47
    Likes Received:
    0
    Thanks alot! I'll play around with them tomorrow night and see what happens.
  8. EngineerKyle

    EngineerKyle Member

    Joined:
    Oct 3, 2005
    Messages:
    469
    Likes Received:
    0
    Breed got it right. That's exactly how I wire mine. I've got a row of momentary switches 2 feet long! One thing, take the time to line up the postitions of the momentary switches so they all go the same way for a certain route... It's really worth it to be able to glance at the switches and see that, because they are all to the right, say... you know your are on the mainline.
  9. sidetracked

    sidetracked Member

    Joined:
    Dec 5, 2006
    Messages:
    103
    Likes Received:
    0

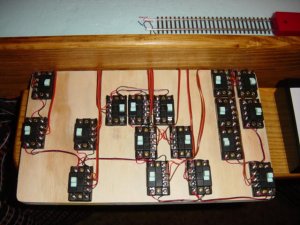

    racer,,,, also the same as I'm using,,, mine are only set up temperary to make sure everything works right so when i do it the final time the wires wont show, but here is a pic,,,, I mounted them in a position kind of realitive to the switch if that makes sense,,, and then wired them all to where if the switch button is up the switch is straight thru or if it is down it is thrown,,, for me it makes it easy to glance at it and tell,,,, not saying i dont mess up once in a while but it seems to work pretty good,,,,,,,, good luck,,,,,,,,,,,,,,,,,,, st

    Attached Files:

  10. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    787
    Likes Received:
    0
    switch switch

    Jeff, if you have never used these before, that momentary switch is MOMENTARY. NEVER hold it down or you'll burn the coils and ruin the remote part of it.

    Lunn
  11. Omaha Road Man

    Omaha Road Man New Member

    Joined:
    Jan 21, 2007
    Messages:
    12
    Likes Received:
    0
    Another question, when doing track planning I'm assuming this type of switch is equivalant to an Atlas #3? It doesn't say on the package.
  12. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    NO. There is no direct equivalent.

    The Snap Switch diverging route is designed as part of a 18" radius circle. All (well, most) number switches (turnouts) have a diverging route that is straight. There are "radii equivalents" for them, but they do not form a true arc (part of a circle) like the Snap Switches.

    The closest is usually described as a #4, or a #4 1/2, but as I said above, that is not strictly true.

    If you are doing track planning with software, like Atlas RTS, there should be a library of parts that will have the right dimensions.

    Andrew
  13. racer25j

    racer25j Member

    Joined:
    Jan 16, 2007
    Messages:
    47
    Likes Received:
    0
    Does momentarily pressing the switch change the direction until it is presed again?
  14. Thoroughbreed

    Thoroughbreed Member

    Joined:
    Aug 4, 2006
    Messages:
    419
    Likes Received:
    0
    Movement of the switch from side to side, then momentarilly hold it down to change position of the track switch.:thumb:
  15. YmeBP

    YmeBP Member

    Joined:
    Dec 4, 2006
    Messages:
    587
    Likes Received:
    0
    I think i've read #4 but not sure, i'm curious about this too.
  16. racer25j

    racer25j Member

    Joined:
    Jan 16, 2007
    Messages:
    47
    Likes Received:
    0
    I think I understand it now. I haven't played with this stuff for probably more than 25 years and even then it wasn't remote. Thanks for the info and rest assured, there will be many more questions like this in the future.

    Jeff
  17. straight-track

    straight-track Member

    Joined:
    Aug 29, 2005
    Messages:
    106
    Likes Received:
    0
    racer25j, Way back when I got started, I used to paint the exposed side of the slide button the appropriate color of red (diverge) or green (normal) route to help at a glance the position or throw of a turnout ! Let the paint dry well before using the controller. They use to include a small sticker also. Good luck and enjoy this awesome hobby ! Joe
  18. racer25j

    racer25j Member

    Joined:
    Jan 16, 2007
    Messages:
    47
    Likes Received:
    0
    I picked up a book on wiring (easy wiring), but its more confusing than anything else. It's easier to when it spelled out out in english. Thanks again.

    Jeff

    Wait till I need info on track feeders.
