SMS Rhein/SMS Mosel - Free Model Competition

Discussion in 'Ship & Watercraft Models' started by B-Manic, Jan 16, 2007.

  1. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0
    I am building this river monitor (Paper Shipwright - SMS Rhein/SMS Mosel) for the free models competition # 2.

    http://www.papershipwright.co.uk/

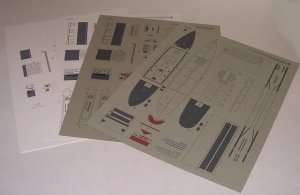

    Here is the print-out ready to be set free from the paper. I printed the model on grey card stock. The model is primarily grey with some white and minute amounts of red yellow etc. Those parts where printed on regular 20lb white paper. This should result in nice clean edges for the hull and the majority of the super structure. We'll see:)

    Attached Files:

  2. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0
    BuildReport 2

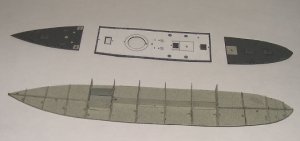

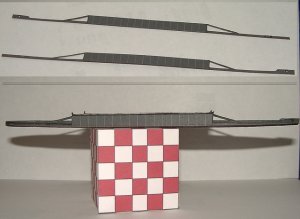

    pic 1 - Construction of the keel plate and internal formers completed. Deck plates cut-out and holes made for guardrails.No problems.

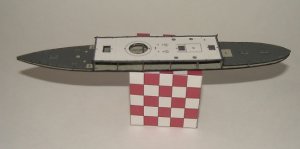

    pic 2 - Deck plates & fwd and aft armour plates glued on. No difficulty. However, the side armour plates (parts 33 and 34) are mis-labelled as part 3. They and the hull plates will go on next.

    Attached Files:

  3. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0
    More progress

    Just installed the hull plates with affixed side armour plates. the fit was very fine.

    Attached Files:

  4. rmks2000

    rmks2000 Member

    Joined:
    Jun 30, 2006
    Messages:
    563
    Likes Received:
    0
    Pretty quick work. I'm about done with the mortar boat, but may make another for the contest.
  5. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0
    More Progress

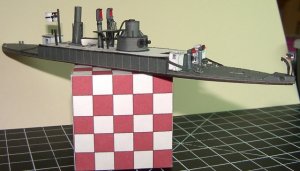

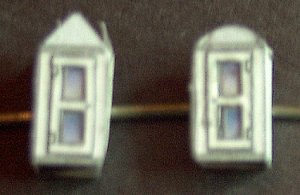

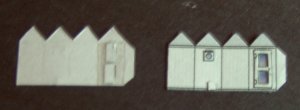

    built the deck houses. Pretty plain jane boxes, so I added plastic windows. Kinda scrunched one when I glued it to the deck. I hope to fix/replace it.

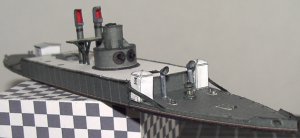

    Built and installed the deck gun and flying bridge platform. Sorry no construction pix. Had some camera problems. If you get out the microscope you can see I did the bollards as well.

    Attached Files:

  6. cdcoyle

    cdcoyle Member

    Joined:
    Nov 21, 2005
    Messages:
    241
    Likes Received:
    0
    Thanks for the report. I'm following your progress with interest -- this kit is in my 'to-do' pile.

    Regards,
  7. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0
    My pleasure. It was on my list for a while also. The great thing about these competitions is they give you a deadline. :lol:
  8. rmks2000

    rmks2000 Member

    Joined:
    Jun 30, 2006
    Messages:
    563
    Likes Received:
    0
    Having just finished the mortar boat, I'm very interested in your build. I'm looking to buy one of the kits but I haven't decided on which one yet.
  9. eatcrow2

    eatcrow2 Member

    Joined:
    Apr 20, 2004
    Messages:
    374
    Likes Received:
    0
  10. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0
    I hope my build turns out as nice as yours. The design is great. everything fits together very well and the instructions are very clear.
  11. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0

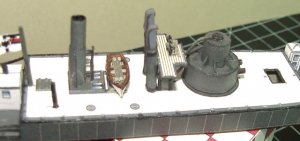

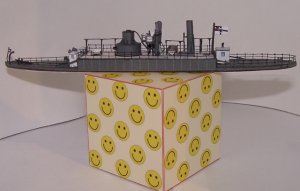

    More progress. Some of the vertical structures look bent/curved. I am sure this is some sort of fish-eye distortion from the camera in macro mode. :wink:

    Attached Files:

  12. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0
    Very nice! Love to see all these ships lately! I will definately have to add this one to my list! Thanks for the great looking build! And good luck in the competition! :grin:
  13. Bluenoser

    Bluenoser Member

    Joined:
    Feb 16, 2006
    Messages:
    191
    Likes Received:
    0
    Turned out well.
  14. rmks2000

    rmks2000 Member

    Joined:
    Jun 30, 2006
    Messages:
    563
    Likes Received:
    0
    Looking good! Has anyone built the Tijger, Smerch or HMS Kite/Staunch? I'm looking to build one of them.
  15. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0

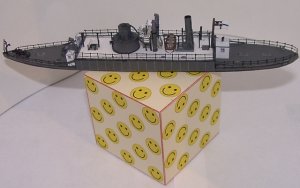

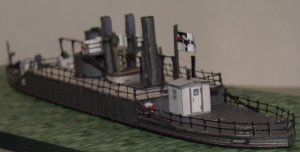

    Well, finally made some more progress. Added the boat, anchors, awning stanchions, ladders & guardrails.

    Still have the anchor cable, hawse pipes and a few other fiddly bits to go.

    Attached Files:

  16. Dave Treby

    Dave Treby Member

    Joined:
    Mar 8, 2005
    Messages:
    53
    Likes Received:
    0
    I've built Smerch and nearly completed Kite/ Staunch. Like all the Papershipwright models I've done they are great. Not easy, sometimes fiddly, but it all fits and looks good.

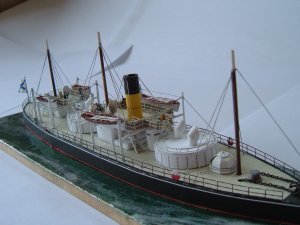

    Picture should be Smerch- nothing to do with a windmill despite the title!

    Attached Files:

  17. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0

    Your Smerch is mighty fine. How did you make such clean looking guardrails?
  18. rmks2000

    rmks2000 Member

    Joined:
    Jun 30, 2006
    Messages:
    563
    Likes Received:
    0
    Dave,
    Beautiful job on the Smerch.

    B-Maniac
    Ditto, and a fast build!
  19. Dave Treby

    Dave Treby Member

    Joined:
    Mar 8, 2005
    Messages:
    53
    Likes Received:
    0
    Thanks for the kind words.
    The railings are etched brass from Hamberger models. I buy them from Marcle models. Not cheap but they are neat and easier than making ones from thread, although you need to cut and adjust if you want he uprights in the right place
  20. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    531
    Likes Received:
    0

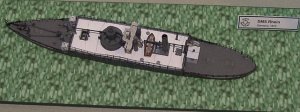

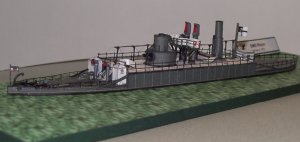

    Finito

    Thanks - they really look great. I am sure they are less trouble than making thread ones.

    --->
    Well this has been a fun build of a great little model.

    Attached Files:
