Smolka Sawmill

Discussion in 'Logging, Mining and Industrial Railroads' started by Matthyro, May 25, 2003.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    This sawmill is based on the one in the March 1990 Model Railroader. It is named after Andy Smolka NARA member#9.
    This will be one of at least three sawmills on my MAT. I have one already called the Schmidt Sawmill and will make at least one more as logging on the MAT continues to grow.
    It is N gauge.

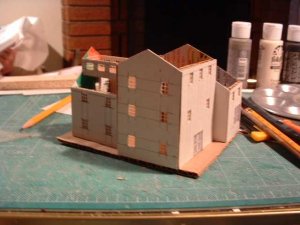

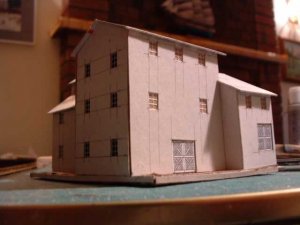

    This picture shows it with just the walls in place.

    Attached Files:

    • ss1.jpg
      File size:
      45.2 KB
      Views:
      276
  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

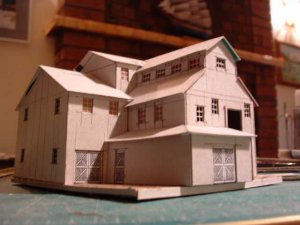

    A view from the other side.

    Attached Files:

    • ss2.jpg
      File size:
      36.7 KB
      Views:
      274
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Next shows the roof in place.

    Attached Files:

    • ss3.jpg
      File size:
      32.3 KB
      Views:
      272
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    View from the other side.
    I will post more pictures as this project progresses

    Attached Files:

    • ss4.jpg
      File size:
      28.4 KB
      Views:
      268
  5. Tad

    Tad Member

    Joined:
    Apr 8, 2003
    Messages:
    303
    Likes Received:
    0
    Another outstanding effort!
  6. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Looking good as always Robin!!
    Ralph
  7. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    WOW!! Robin, another good scratch. Did you print the doors from your computer?
  8. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    AWESOME as usual my friend!!!!!!!! :cool: :eek: :cool:
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks guys. Dick I drew the doors using MS paint. The windows are drywall joint mesh.

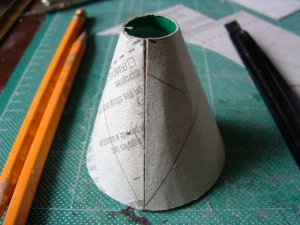

    This next picture is the start of the slash burner.

    Attached Files:

    • ss5.jpg
      File size:
      40.6 KB
      Views:
      246
  10. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

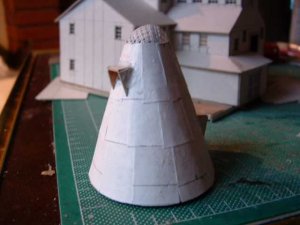

    I glued on peices of paper and made the spark arresting grid out of waste canvas. Waste canvas is sold at craft stores

    Attached Files:

    • ss6.jpg
      File size:
      29.4 KB
      Views:
      238
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

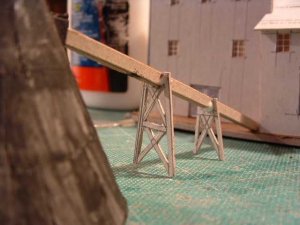

    next is the conveyer that carries sawdust from the sawmill up to the burner

    Attached Files:

    • ss7.jpg
      File size:
      33.6 KB
      Views:
      237
  12. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Robin. This is just amazing.
  13. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Robin. This is the lumber I used to build my benchwork. It is top grade so it must have come from one of your mills.

    Attached Files:

  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Don't know how the lumber got to San Diego area Dick but am sure you put it to good use. ( I know you did)
  15. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    Robin, thank you for another great model in the pipeline!

    Shamefacedly I must confess that you finished a mine, the coaling tower and now this sawmill, while I achieved next to nothing on my layout. :(

    My workshop is complete, so far. Now to have a nice little machine which generates model building time... :D :D :D

    I'm looking forward to watch your progress!

    Ron
  16. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Another masterpiece from the "Cardboard Wizard"! :D
    Fantastic modeling, & step-by-step, Robin!
    :cool: :cool: :cool: :cool:
  17. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

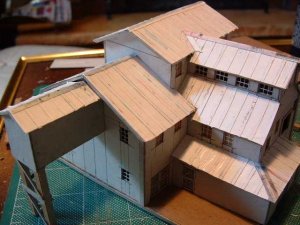

    I have tried to make the roof look like standing-seam metal roofing.
    I glued 1/4inch strips of paper to the roof, the glued 1/16inch strips of paper over the seams. I think it will look somewhat better when the roof is painted which will be next.

    Attached Files:

    • ss8.jpg
      File size:
      43.9 KB
      Views:
      104
  18. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    And all N Scale. Amazing.
  19. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

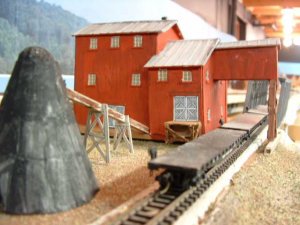

    This photo shows roughly where this sawmill will be located. Lots of scenery work to be done. The building has its first coat of paint on. I will have to clean it up a bit with more washes. The conveyer to the slash burner hasn't been painted yet.

    Attached Files:

    • ss9.jpg
      File size:
      38.8 KB
      Views:
      96
  20. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

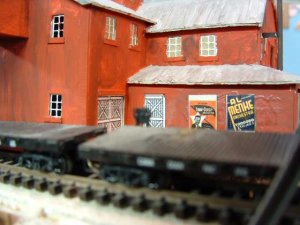

    This photo shows where a bit more revenue comes from advertising.
