    Here are some layouts I've come up with using Right Track Software.

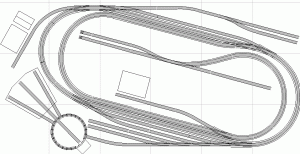

    This one is built on a 3' x 6' board. It is a simple loop with a yard and a branch line. There are no reversing sections. The roundhouse is my own estimation of the footprint of Atlas' N-scale 3-stall roundhouse.

    A passenger station could sit at the end of the branchline, and another could be located along the siding at the top.

    -Rory

    Attached Files:

  2. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,312
    Likes Received:
    0
    2 x 4 with Timesaver

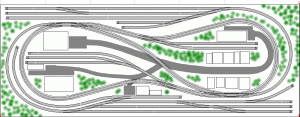

    Here is a very compact layout with a timesaver. It fits on a 2' x 4' board. The radii are pretty tight, but are alright for small engines and shorter rolling stock.

    -Rory

    Attached Files:

  3. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,312
    Likes Received:
    0
    HCD - 2 yards and a loop

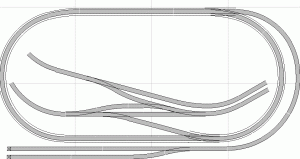

    This is a variation on Atlas' N-11, Unhinged and Horizontal (which is the plan on which I based my own layout). This version has two yards. Trains can run through the reversing section and head straight into the destination yard (or the originating yard). I removed the passing siding found on the N-11 so I could make room for the entrance to the second yard. I think this one is a little more realistic than N-11, though, because you can actually enter a DIFFERENT destination from where you started!

    And this layout still fits on a 30"x80" hollow core door!

    -Rory

    Attached Files:

  4. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    You saved the best for last! T.R.
