Small N-scale Layout

Discussion in 'Track Planning' started by roryglasgow, Jan 27, 2004.

  1. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,312
    Likes Received:
    0

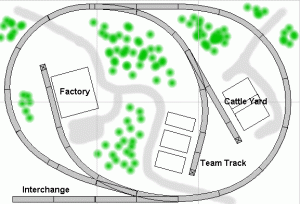

    I've been tinkering with layout plans on and off for the past several weeks. I have a 2' x 3' sheet of plywood, so I started brainstorming some trackplans that would fit the space. I thought I'd share one of them.

    I just stuck the track together on the bare plywood--no roadbed or even nails. It's been a lot of fun. I'll add random cars to the interchange, then deliver them to the other three spurs, picking up the cars that are already there and bringing them back to the interchange. Yes, I'm easily entertained.

    Strategically placed trees and roads might help break up the loop.

    The whole layout is built with Atlas sectional track. Minimum radius is 9.75". All turnouts are #4.

    Attached Files:

  2. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    "Yes, I'm easily entertained."

    That makes two of us Roy!
    :D :D :D
  3. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,764
    Likes Received:
    0
    I thunk 2X3 was large in N :D :D :D

    Count me in on the easy entertainment :D :D :D
  4. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,312
    Likes Received:
    0
    Well, you could go smaller, but then you'd be getting into the realm of "mini" and "micro" layouts. I saw, somewhere, an N-scale loop that someone made on the top of a coffee cup!
  5. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hi Rory,
    That looks an interesting layout plan, plenty of action I am sure.
    Shamus
    [​IMG]
  6. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    713
    Likes Received:
    0
    Nice

    Very simple layout.

    a 2x3 N is roughly a 4x6 in N.

    Looks like a lot of fun
  7. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    "a 2x3 N is roughly a 4x6 in N"

    Screwy can you spare me some of your meds man, they gotta be better than mine! :D :p :rolleyes: :D
  8. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Fun!! That interchange track is just begging for cassette staging ...or expansion later! :)
    Ralph
  9. Urban

    Urban New Member

    Joined:
    Oct 30, 2003
    Messages:
    20
    Likes Received:
    0
    Yes, this can work. Another thing I try to design in is to make the scenery on about 1/3:rd to give the impression the places are further apart than they are.
  10. eatst14

    eatst14 Member

    Joined:
    Apr 17, 2002
    Messages:
    39
    Likes Received:
    0
    Rory,

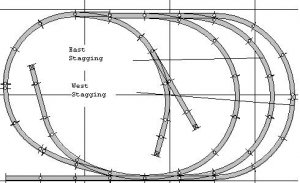

    Glad to see you building again, I miss seeing teh construction pics of your old Copper Ridge, and was sad when you had to take it down. I do have one suggestion though, add 6 more inches to make the layout 2x3.5ft. I know space is at a premium at your new pad, but just 6 more inches will allow you to do this:

    Attached Files:

  11. Nscale4

    Nscale4 Member

    Joined:
    Jan 15, 2004
    Messages:
    32
    Likes Received:
    0
    I guess I'm easily entertained too! :)
  12. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    713
    Likes Received:
    0

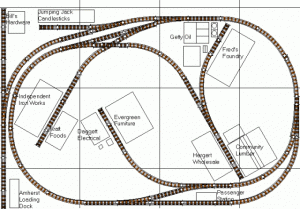

    another suggestion

    this is about 3.5 by 2.5, but its a switching layout disguised as a starter oval

    Originally a 4x6 HO layout, you might recognize it as the Morgan Valley from Model Railroader and Atlas books

    Attached Files:

  13. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,312
    Likes Received:
    0
    eatst14, that's a great idea. With a little creative effort, that could be hidden staging. It would definitely add a lot to such a small layout.

    Mr. Squirrel, I really like that plan. I sat studying it for some time. There is a lot of potential.

    Thanks for the suggestions!
