Shipyard module

Discussion in 'N / Z Scale Model Trains' started by sumpter250, Feb 13, 2004.

  1. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Just a couple of shots of the shipyard module. the first is a low level shot looking out along the drydock.

    Attached Files:

  2. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    this one is a closeup of one of the drydock cranes. The base is scratchbuilt, the middle section is kitbashed from parts of an HO scale conveyor, and the crane is a Bachmann rail crane.

    Attached Files:

  3. csxnscale

    csxnscale Member

    Joined:
    May 9, 2002
    Messages:
    281
    Likes Received:
    0
    Great job on the crane.
    Love the ship to :thumb: :thumb: :thumb:

    Paul
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Great looking module. The crane looks like it really belongs on the dock even though it came from different parts.
  5. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    That's a perfect dockside building and the crane is excellent. Turn down the lights and add some fog and I see Bogey or Cagney walking out of the shadows! :) Can't wait to see more!
    Ralph
  6. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Looking good. Great job!:thumb: :thumb: :thumb:
  7. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Very nice! Good to see you working in the right scale for a change! :D :D :p :D :D
  8. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Fantasticolisha!!!:eek: :eek: :eek: and where did you get the n-scale ship? Jim
    :wave:
  9. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    That's some fantastic modeling Pete!
    I love that crane kitbash!
    :cool: :thumb: :thumb: :cool:
  10. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Thanks everybody.
    Jim, the ship is a lindberg "bobtail cruiser", and is 1/168 scale....works for me.
    Pete
  11. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Hey Pete, that's neat stuff. I like that "drydock" idea, and the building too. Where did you find the ship model? I've looked around and haven't found much of anything in that scale.
  12. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Where did you buy them? Do they have a web site? I can't find them either in that scale. Ships that is. Thanks Jim:oops: :oops:
  13. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    The ship in the drydock is, or maybe was is more appropriate, Lindberg kit # 7310. I got this one in a "consignment sale".
    The one in the background is/was Revell #H-379, it also may be out of production.
    I started laying rails for the drydock cranes, and the SHS&D narrow gauge............If you hear anyone talking about hand laying code 40 rail.........get them medications quick!:D :D :D
    I'll post pics when I'm done, and sane enough to operate the camera!:eek: :eek: :D
    Pete
  14. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    This kit, from GC Laser Innovations PO box 621, Genoa City WI. 53128, is #CM009, Country Market.(www.gclaserinnovations.com)
    I thought it would make an excellent tool issue shed at drydock#2.

    Attached Files:

  15. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    In this shot, I've closed in the "seaward"end of the drydock, and started the gate. The gate will require some additional structural additions, and handrails, before painting.

    Attached Files:

  16. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    I changed my mind about the launchway, opting for a more traditional way, vice the sideslip. Here, it's begining to take shape.

    Attached Files:

  17. n2trains

    n2trains Member

    Joined:
    Feb 2, 2004
    Messages:
    57
    Likes Received:
    0
    High quality crane, I was playing with the idea of scratch building one, but decided against it since my plan for the layout changed... but now I'm inspired... uh-oh
  18. Secret Weapon

    Secret Weapon Member

    Joined:
    Jan 2, 2004
    Messages:
    51
    Likes Received:
    0
    :thumb: :thumb: :D
    Hey,
    Good looking stuff!!!!!!!!!!!Mike:wave:
  19. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0

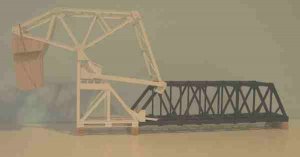

    The basculization of the walthers two track through truss bridge, is coming along well.

    Attached Files:

  20. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0

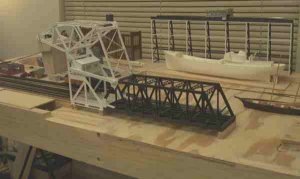

    The bridge location, on the module, is finally decided. This pic show where it will be.

    Attached Files:
