Shaygetz-2005 Challenge

Discussion in 'Scratchin' & Bashin'' started by shaygetz, Oct 4, 2005.

Thread Status:
Not open for further replies.
  1. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

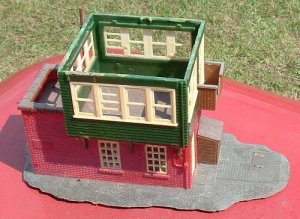

    OK, I'll bite, starting with this pristine example, complete with no roof, no steps and plenty of goopy glue in the windows. Since I've always wanted one anyway, I'll just use the missing parts as an oppurtunity to personalize it for my road.

    Attached Files:

  2. b28_82

    b28_82 Member

    Joined:
    Jan 25, 2004
    Messages:
    449
    Likes Received:
    0
    Ohhhh i cant wait to see what it turns into :D
  3. Chris Beard

    Chris Beard Member

    Joined:
    Oct 1, 2004
    Messages:
    41
    Likes Received:
    0
    kit bashing

    Now that is going to be a challenge. Good luck.
  4. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

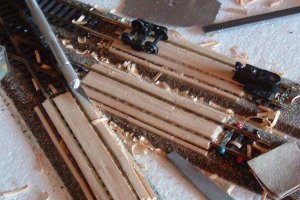

    After a bunch of Awana Grand Prix cars and with a serious deadline looming, I'm finally up and running. Because I needed a junction to justify the tower project, I'm building onto a two foot module normally used as a duckunder on the club's portable layout. It represents Matthyson, a sleepy point on the map where the B&MC and CSX meet at a crossing. Shown here is the beginnings of the rail and road crossing points done in Campbell ties carefully trimmed to rail top level and spec'd for clearence.

    Attached Files:

  5. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

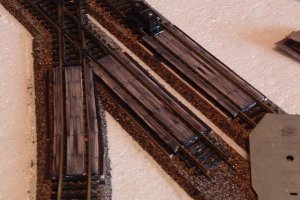

    Once tested (and tested and tested and tested...long trains are pulled thru here), I pressed a nail point into the ties to represent fasteners then stained it with a black felt tip marker. I simply sanded the tops until I was happy with the patina.

    Attached Files:

  6. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

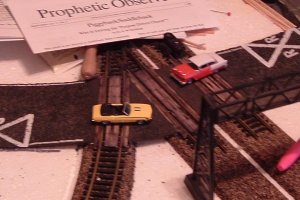

    Finally, I cut and fit asphalt shingle material to represent roadway. It's fairly easy to use and makes a very convincing roadway once weathered. I've started marking the roads with paint pens. Blast...I'm outta yeller so I'm off to Wally World...

    Attached Files:

  7. Papa Bear

    Papa Bear Member

    Joined:
    Dec 29, 2003
    Messages:
    630
    Likes Received:
    0
    Looks great, Bob. :thumb:
  8. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
    Dang nice track work :thumb:
  9. Glen Haasdyk

    Glen Haasdyk Active Member

    Joined:
    Feb 3, 2004
    Messages:
    1,313
    Likes Received:
    0
    Campbell ties for road crossings...hmm, gotta try that one myself!
  10. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Nicely Done Bob.:thumb: :thumb: :thumb:
  11. Chris Beard

    Chris Beard Member

    Joined:
    Oct 1, 2004
    Messages:
    41
    Likes Received:
    0
    Bob, I've been eyeballing that section of our layout for quite some time. I'm glad to see it being worked on. I'm just sorry I didn't come up with the idea. Nice looking work. I will be anxious to see it in person.
  12. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Thanks guys...

    Jim...you gotta take a closer look at the left crossing...ooohhhh...'bout an inch from the end ;)

    Yeah, Glen, I've been doing them that way for almost thirty years with very little change. This time I added the fastener detail and I am pleased with how that came out. The pics just don't do it justice...(as Bob pats himself profusely on his own back).

    Chris, I've been looking at that spot for a long time as it can fit any car I own. You'll get to see it at GATS in 2 weeks. :D

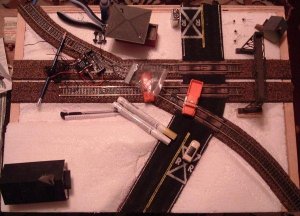

    An overhead view shows where the Atlas tower goes in relation to the other elements...

    Attached Files:

  13. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

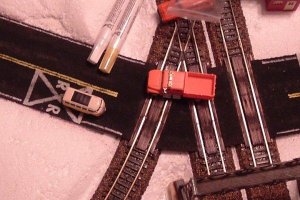

    I'm pleased with the roads, a detail that I've dreaded in all my model work. This time (and from now on) I used a product called Painters by Elmer's, found in the crafts section at Wally World. Using a thin metal straight edge, marking was a snap.

    Attached Files:

  14. kadidle

    kadidle Member

    Joined:
    Nov 10, 2005
    Messages:
    59
    Likes Received:
    0
    Bob, is that the rolled shingle matterial? Maybe upside down? Roads are my bane, and have been looking for good matterial myself that isn't going to cost 3 arms an a leg.
  15. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Welcome to The Gauge :wave:

    It's the backside of standard three tab shingles picked up all over the place here in hurricane country :eek: ;)
  16. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Some great ideas, & great work, Bob!
    :thumb: :cool: :cool: :thumb:
  17. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Looks to be coming along at a nice pace Bob.:thumb: :thumb: :thumb: :thumb:
  18. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Nice job, coming along just fine
  19. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

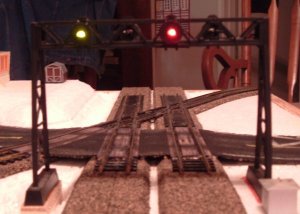

    Thanks, guys, the signal bridge is now in and working.

    Attached Files:

  20. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Because the B&MC is a class 2 branchline, signaling is an unnecessary expence. However, some means of traffic control is a must where the B&MC crosses the CSX main at Matthyson. Like other small roads, crossing gates or "smash boards" are used to control access to the mainline. The CSX guys in the tower must clear the train before the engine crew can unlock the gates, move the train thru, then relock the gates. B&MC crews are to never leave the gates unlocked at any time. Because of the footwork involved, the move can take upwards of 20 minutes hence the final authority lies in the hands of the tower crew. Our crews take delays well though, they're paid by the hour and the tower guys have a shaded table and soda machine to help pass the time.

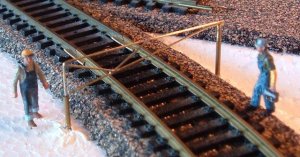

    Here the smashboards have been installed, made from brass wire...that...can...get reeeeally hot...if you're not...careful...soldering.... :eek:

    Attached Files:
