Sd.Kfz. 9 Famo (Angraf 5/2005)

Discussion in 'Armory & Military' started by snake7, Sep 6, 2008.

  1. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    Hello guys
    i took a little brake from assembling, but the process is continue slowly

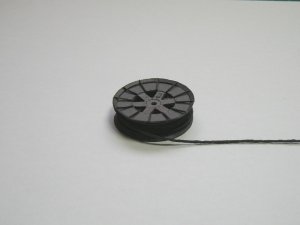

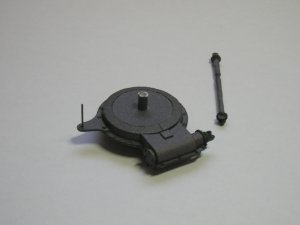

    the winch!

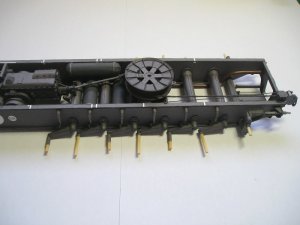

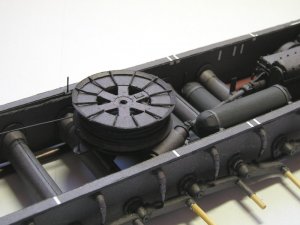

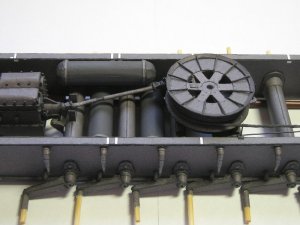

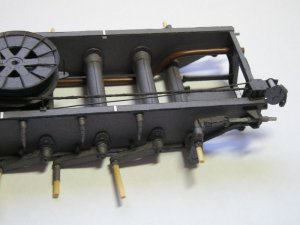

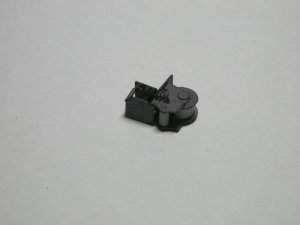

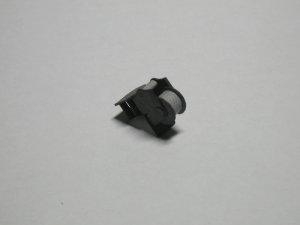

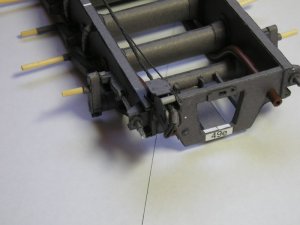

    the pictures show the winch itself, the rotating mechanism, the rear stopper and general view

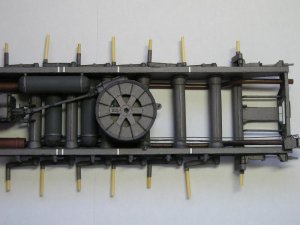

    on last picture you can see the right angle to position the winch mechanism, so that it will connect correct to transmission and copy the prototype position

    there is still to assemble trailer coupling and i will enter the era of wheels and tracks!


    bugs:
    42c - gluing place for part 42o wrong
    42b - wrong insert cut, reversed
    45k - same as part 45i, but need to be mirror to it
    45o, 45n - diameter to small
    gluing places for parts 43d,43e,43f are wrong. the winch must be placed at angle and not perpendicular to the frame

    pictures

    Attached Files:

    • 80.JPG
      File size:
      87.5 KB
      Views:
      25
    • 79.JPG
      File size:
      92.5 KB
      Views:
      21
    • 81.JPG
      File size:
      100.2 KB
      Views:
      23
    • 82.JPG
      File size:
      96 KB
      Views:
      21
    • 83.JPG
      File size:
      108.3 KB
      Views:
      26
  2. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    pictures continue from previous post

    Attached Files:

    • 84.JPG
      File size:
      110.5 KB
      Views:
      32
    • 85.JPG
      File size:
      107.3 KB
      Views:
      25
    • 86.JPG
      File size:
      108.7 KB
      Views:
      28
    • 87.JPG
      File size:
      103.3 KB
      Views:
      20
    • 88.JPG
      File size:
      106.1 KB
      Views:
      21
    • 89.JPG
      File size:
      116.4 KB
      Views:
      29
  3. I.Nicolae

    I.Nicolae I.Nicolae

    Joined:
    Oct 28, 2008
    Messages:
    33
    Likes Received:
    0
    What can I say ,...., when I look on this post I wish it never end, I wish to see more and more and more again...best regards (sorry for my english)
  4. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    thank you I.Nicolae. i am trying to do my best



    --------------------------------------------------------------------------------

    in the shadow of our not so happy events i continue the assembling, because it's the only way to forget and relax a little

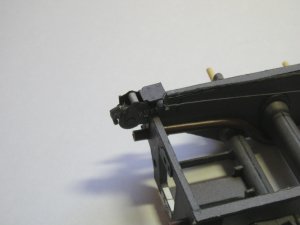

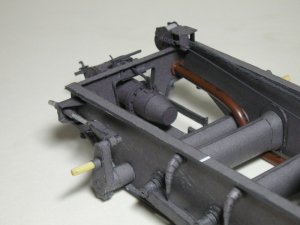

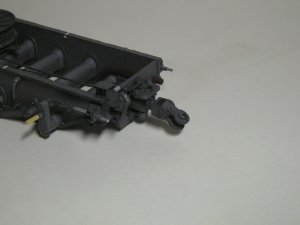

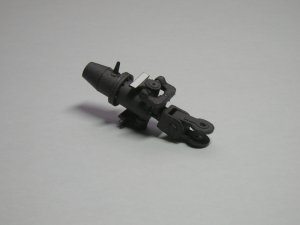

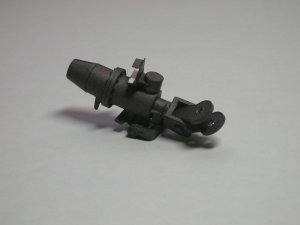

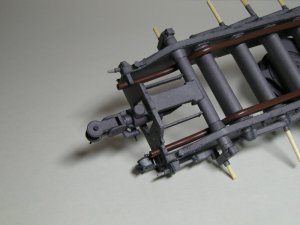

    trailer coupling finished and mounted on the frame
    it's fully workable an can turn in 2 vertical and one horizontal axes
    (you can notice it on some pictures)


    bugs:
    49o - too small in length

    and by this i finish another stage in this big project!
    next: wheels and tracks... and a lot of them
    stay tuned

    Attached Files:

    • 90.JPG
      File size:
      102.7 KB
      Views:
      30
    • 91.JPG
      File size:
      89 KB
      Views:
      24
    • 92.JPG
      File size:
      92.2 KB
      Views:
      29
    • 93.JPG
      File size:
      104.8 KB
      Views:
      27
    • 94.JPG
      File size:
      104.1 KB
      Views:
      33
    • 95.JPG
      File size:
      108.1 KB
      Views:
      38
  5. The Hermit

    The Hermit Member

    Joined:
    Jul 29, 2007
    Messages:
    249
    Likes Received:
    0
    i see you like bamboo as well :mrgreen:


    you are a very good modeler

    it is fascinating to watch you assemble it.
    :thumb:
  6. exzealot

    exzealot Member

    Joined:
    Jul 3, 2007
    Messages:
    466
    Likes Received:
    0
    Excellent work on this model. The engine is a marvel to behold in itself!

    Can't wait to see how this turns out.

    Ken
  7. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    thank you The Hermit and Ken :)

    back to the assembling
    front wheels
    frankly, i don't like how they look
    maybe i will shape and paint them, like i did with SKOT...
    what are your suggestions?

    Attached Files:

  8. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    now, for some motivation rising - i assembled one link of a track
    the process went well and with no problems, but the cutting and painting of 19 details for this link, its another story
    ...repeat 120 times please
    so... 2280 details only for tracks. well it will take some time ;)

    Attached Files:

    • 102.JPG
      File size:
      99.5 KB
      Views:
      24
    • 103.JPG
      File size:
      76 KB
      Views:
      26
    • 104.JPG
      File size:
      82.1 KB
      Views:
      29
    • 105.JPG
      File size:
      80.9 KB
      Views:
      26
  9. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    front wheels finished
    the inside part assembled surprisingly with no errors and entered well into the wheel drum
    also tried it on frame, but will glue wheels later, because i don't wont them take all the weight now. it will ruin the supports


    bugs: none

    pictures will continue in next post

    Attached Files:

  10. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    pictures continue from previous post

    Attached Files:

  11. misacek

    misacek New Member

    Joined:
    Apr 5, 2008
    Messages:
    12
    Likes Received:
    0
    Good work Snake. Love your work.
    I own this model too but put in at the bottom of my drawer after hearing all bad about this kit .I would like to ask you if you experienced allot of mistakes in the model .
  12. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    hi Misacek
    first of all thank you
    second of all, until now, i had a lot of mismatching and mistakes, not too big, but a lot.
    if you will check my posts from the beginning, you will notice the "bugs" column. that's will give the amount of mistakes that popped out until now.

    but i am not trying to get every modeler away from this kit :). on the contrary, i want to help those who will start this model to get the picture about the difficulty and mistkaes this model have
    excluding this, the model itself is amazing!!!
    so don't put it too far ;)
  13. papastumpy

    papastumpy Member

    Joined:
    Dec 21, 2008
    Messages:
    170
    Likes Received:
    0
    I am just awed at your work. The inclusion of your build to include mistakes is one of the best ideas I have ever seen in a thread. With your photos, instructions of all the bugs to watch and how to correct, and the great photography, is this a thread or a Model Article of How-To. My hat is off to you sir, and I so very much look forward to your next post. Heck, you have convinced me, I want one of these. The engine was a work of art. Hope today finds you safe and well in your country, and my prayers are out to your country everyday.:wave:
  14. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11

    thank you for your kind words. and for good wishes and prayers for my country.
    i am not as good as you think, but i am trying :)
  15. exzealot

    exzealot Member

    Joined:
    Jul 3, 2007
    Messages:
    466
    Likes Received:
    0
    Absolutely stunning work! It just keeps getting better and better.

    Ken
  16. papastumpy

    papastumpy Member

    Joined:
    Dec 21, 2008
    Messages:
    170
    Likes Received:
    0
    I too have this kit and do intend as you to build. But I will follow your thread as long as you post. I am abit unclear as to what you are saying here: I understand that the frame drawings do not match and are too long from end to end, is this what you mean when you said I just ignored and glued the part on the carton (did you mean chassis). Please explain if you cut anywhere@all on frame or did you just simply realign the frame parts to the chassis????:confused:
  17. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    ok, if you have the kit it will be easy to explain: there is white part(frame) that goes inside - 1fL and 1fR, and there are two outside parts, that you glue on both sides of the white frame, in color - 1aL, 1aR and 1bL, 1bR.
    the outside parts longer then the inside.
    the inside part also have holes for the chassis
    so the outside parts longer not only in the end, but from the first hole. each hole after, there is a little mismatching between outside and inside and it goes bigger
    so the solution was just to glue the outside parts on a card that eventually will match the thickness of the inside white part
    i hope i explained it better
  18. papastumpy

    papastumpy Member

    Joined:
    Dec 21, 2008
    Messages:
    170
    Likes Received:
    0
    Thanks and I understand now what you are saying. This will help to iron out the bugs. I read the other build thread on the German site and was disappointed that the fella stopped after getting so far along in the build. I look forward to your next posting.:wave:Rick
  19. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    well, there is no big progress, but i decided to put some pictures of cutting process, so you wouldn't think i stopped the assembling :)

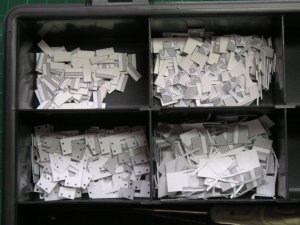

    i also bought very useful case for the little details and instruments
    and on the last picture there are the rest of details to cut...
    it will take some more time ;)

    Attached Files:

    • 115.JPG
      File size:
      116.9 KB
      Views:
      28
    • 116.JPG
      File size:
      111.1 KB
      Views:
      26
    • 117.JPG
      File size:
      119.3 KB
      Views:
      30
  20. papastumpy

    papastumpy Member

    Joined:
    Dec 21, 2008
    Messages:
    170
    Likes Received:
    0
    Hello snake7, I was glad to see you post again. And I wanted to say thank you for your help to my question about this kit. I too look forward to your postings, but alas I too understand that life some times keeps us busy. And may Peace rain upon your country, I am sure you understand the ref:rain as in blessed.:wave:
