    Hello
    this is my first post and theme here, though i watching this forum for a long time
    i am starting new project - Sd.Kfz. 9 Famo from Angraf. this model is very complex and with large number of mistakes and mismatching, but i will try to bypass it all and complete the model.
    so, 34 pages of B4, 7250 parts, a couple of years for build process :D
    i will build it as is, only painting edges

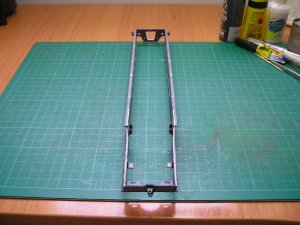

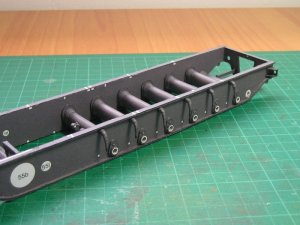

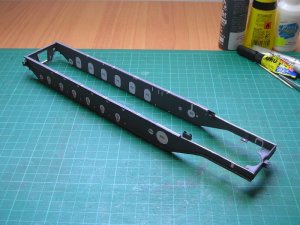

    first of all the frame, and the first bug - the sides of the frame are too long for about 1 cm..
    the rest is fitting well.
    also added some little parts

    Attached Files:

  2. rman

    rman New Member

    Joined:
    Apr 3, 2008
    Messages:
    22
    Likes Received:
    0
    Good luck. I have heard this model is almost unbuildable
  3. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    yes, you're right, but it worth a try :)
  4. Jim Nunn

    Jim Nunn Member

    Joined:
    Feb 10, 2004
    Messages:
    379
    Likes Received:
    1
    You have my respect, building this model with its known defects will be a challenge. I always wondered why AnGraf never attempted to correct the errors. This could be a super model.

    Please keep us posted on the problems you find I did not keep track of all of the problems that were discussed on the other forums.

    Jim Nunn
  5. joryyys

    joryyys Member

    Joined:
    Aug 5, 2007
    Messages:
    36
    Likes Received:
    0
    1 CM???!!! Who did such mistake: you when writing the post or Angraf when creating the model? :D
  6. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    :D

    work continues slowly. slowly because of the amount of little parts to assemble, but i don't complain, i like it ;)
    the feelings are mixed, from one hand i enjoy the process, from the other there are those little mistakes that you don't know why they pop up
    from one hand all the parts spread continuously on the sheets, from the other, suddenly you finding yourself searching for little something all over the 34 pages of B4, and finding it 15 pages far from the place it should be with other parts

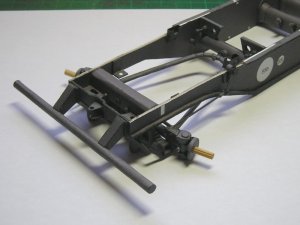

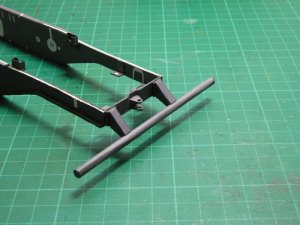

    until now i assembled front bumper, driving shaft bridge and braking system (my guess)
    bugs:
    part 4d to little in diameter to fit in base of part 4c
    part 5p to long for part 5o

    Attached Files:

    • 3.JPG
      File size:
      101.1 KB
      Views:
      77
    • 8.JPG
      File size:
      109.5 KB
      Views:
      68
    • 6.JPG
      File size:
      101.9 KB
      Views:
      90
    • 7.JPG
      File size:
      102.6 KB
      Views:
      57
    • 5.JPG
      File size:
      100.2 KB
      Views:
      64
    • 4.JPG
      File size:
      105.5 KB
      Views:
      82
  7. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0
    I just got a copy of this one, not knowing the history of the kit. I will be watching your build with interest. When you say the frame is 1 cm too long, where does this error come in? One side, both sides, front or rear?

    It would be great if you could explain any work arounds for the problems you find.:thumb:

    Thanks,

    Greg
  8. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    no problem Greg :)
    the frame is too long from both sides. its not front and not rear. you can put it from front and it will be too long from rear and the other hand. i noticed that the mismatching started already from first hole for the chaises from the end. but the width was OK. only the length was wrong.
    the solution is simple: i ignored the frame and glued the part itself on the carton :)
    the other two problems where very small. the long detail was just cut out and the little one i just made bigger, because it was inside white part.
    i hope i explained myself clear :)
  9. Jim Nunn

    Jim Nunn Member

    Joined:
    Feb 10, 2004
    Messages:
    379
    Likes Received:
    1
    Having the parts spread all over the place drives me nuts. You would think that the designer would keep them together. What I do is cut the parts out and sort them by groups such as parts 1 to 10, 11 to 20 and store them in large envelops (20 cm x 30 cm) this way I don’t have to stop and search out a part. However with 7000+ parts in this model you would have a lot of envelops.

    Jim Nunn
  10. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    thanks for the advice, but as you said, to many envelops.. you could open a post office with that :)
    the good part - the most of the details spread in order.
  11. redhorse

    redhorse Member

    Joined:
    Dec 28, 2007
    Messages:
    160
    Likes Received:
    0
    I also had no idea this kit had so many errors... I'll be curious to see how it comes out. Good Luck!
  12. joryyys

    joryyys Member

    Joined:
    Aug 5, 2007
    Messages:
    36
    Likes Received:
    0
    Yeah you should then put the envelopes into envelopes sign1
  13. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    :D

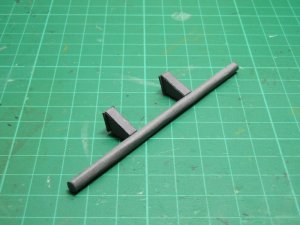

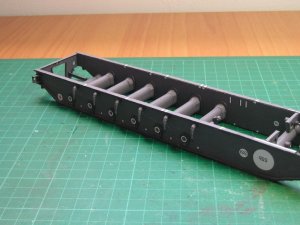

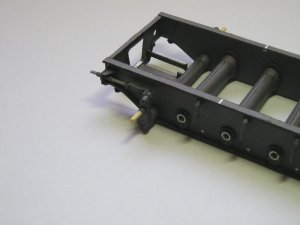

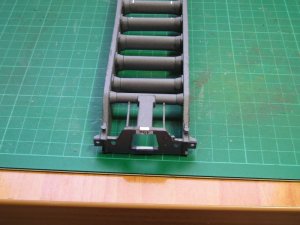

    all cross bridges assembled. took some time because of the unusual form of the details.

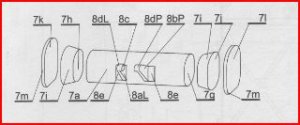

    i found parts 7m, 8d only on page 15, far from the other parts of the cross bridges (for those who own or trying to build the model)

    bugs:
    (again) part 7j is smaller then must be

    Attached Files:

    • Capture.JPG
      File size:
      17.9 KB
      Views:
      1,148
    • 9.JPG
      File size:
      111.2 KB
      Views:
      62
    • 10.JPG
      File size:
      106.7 KB
      Views:
      60
    • 11.JPG
      File size:
      110.6 KB
      Views:
      77
  14. Elliott

    Elliott Senior Member

    Joined:
    Jul 18, 2006
    Messages:
    1,062
    Likes Received:
    0
    How did you solve this Igor?
  15. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11
    this is the inside white part, so you can make your own only bigger. but the shape was not circle. so i just inserted it inside to the depth it goes. it gave the shape to the outside detail. the detail itself i glued to place by edges and not by inside part.
    i hope explaind it clear :)
  16. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11

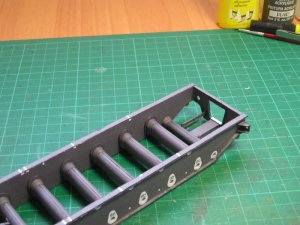

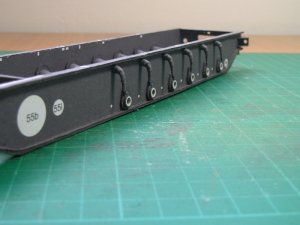

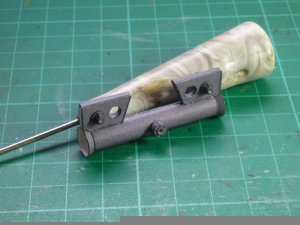

    support rings for the chaises and some strange looking parts called amortizations, by instruction.

    bugs: detail 9e is missing by 60 pieces (bolt heads)

    Attached Files:

    • 12.JPG
      File size:
      106.2 KB
      Views:
      60
    • 13.JPG
      File size:
      105.4 KB
      Views:
      54
    • 14.JPG
      File size:
      106.7 KB
      Views:
      52
    • 15.JPG
      File size:
      93.9 KB
      Views:
      56
  17. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11

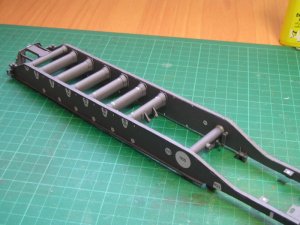

    Straining mechanism completed and assembled in place
    the axes where made from wooden sticks to strengthen the chaises

    bugs: none

    Attached Files:

    • 16.JPG
      File size:
      83 KB
      Views:
      53
    • 17.JPG
      File size:
      92.2 KB
      Views:
      45
    • 18.JPG
      File size:
      91 KB
      Views:
      50
  18. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0
    Still looking very good. Keep up the good work.:thumb:

    Greg
  19. snake7

    snake7 Member

    Joined:
    Dec 13, 2004
    Messages:
    187
    Likes Received:
    11

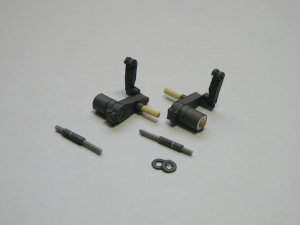

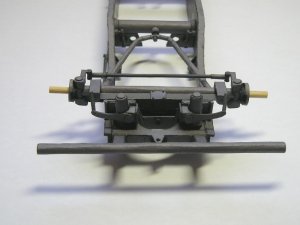

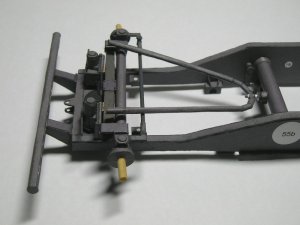

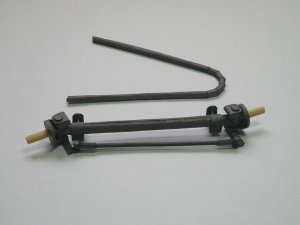

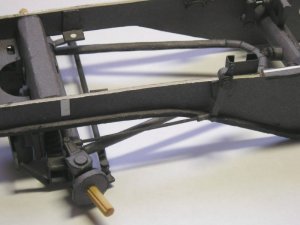

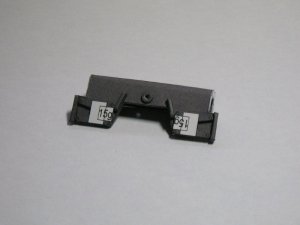

    front suspension assembled.
