    After a long with almost no posting I am back with a new tread!

    My next project is a big model, the Sagrada Família of Barcelona.

    This cathedral is still in construction and its going to be the tallest church in world when completed.
    When ready the model should have almost 60cm tall!
    The model comes in 37 sheets B4 size pre-cuted and marked where it’s necessary to bend the paper. It has 825 pieces and it comes with a separated book I A4 size with 70 pages of diagrams instructions.

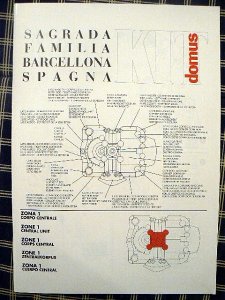

    This will take much time to complete. For now some pictures of the model before start.

    Attached Files:

  2. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23
    More pictures.

    Attached Files:

  3. SCEtoAux

    SCEtoAux Member

    Joined:
    Jul 28, 2004
    Messages:
    666
    Likes Received:
    6
    Looks like it will be an interesting model to build. Very big too, at 60cm tall.
    I remember seeing that cathedral on TV a few years back when the Olympics were held in Barcelona.
  4. lriera

    lriera Member

    Joined:
    Aug 29, 2007
    Messages:
    281
    Likes Received:
    0
    Tino, pleased to meet you here at Zelaot. Thank you for showing this build.
  5. jagolden

    jagolden Guest

    Tino,

    Beautiful building, it will make an impressive build!
    Look forward to watching this grow.
    Welcome back!
  6. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23
    Thank you to all for the support!
    Following the instructions the model is made by several separated sections.
    The first one is the central one, and tallest of all!

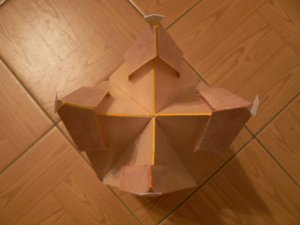

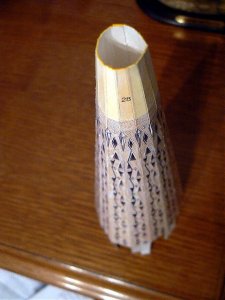

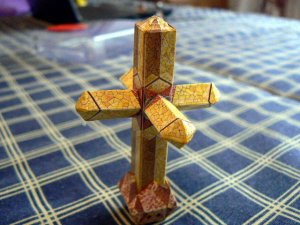

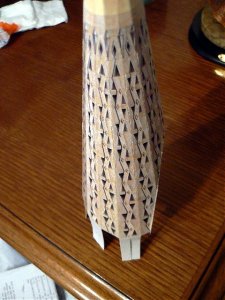

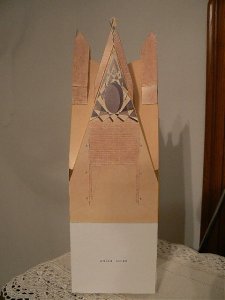

    For now I will leave you with two pictures of beginning. There are only 6 pieces to make what it is in the pictures, but this section already have about 30cm tall.

    Attached Files:

  7. exzealot

    exzealot Member

    Joined:
    Jul 3, 2007
    Messages:
    466
    Likes Received:
    0
    Tino,

    Is this model pre-cut? I bought Domus' model of the US Capitol. The registration of the cuts is not lined up with the graphics. I thought about gluing the unseparated pages onto another thin sheet of paper, and then recutting.

    Let me know if this is a problem with your model.

    Nice subject - looking forward to your progress.

    Ken
  8. cgutzmer

    cgutzmer Guest

    nice progress! :) love buildings!
    Chris
  9. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23
    Ken - Yes, this is a pre-cuted model and some cuts and some places were its necessary to bend seems to be not aligned with the real graohics of the pieces. On other and until now the model doesnt give any fit problem. Until now the fit is perfect.
    Now lets go to progress in the model.

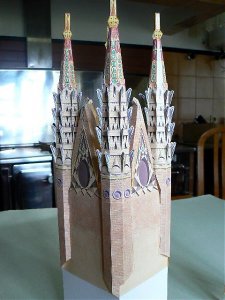

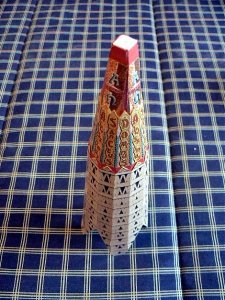

    I am working in the four smaller towers of the central part of the cathedral.
    The towers are simple. What gives more work is putting all that small pieces around the four towers.
    Any of the small pieces around the tower is glued to the tower. I think that it’s easier to put them without glue. I think that will let them all, without glue.

    Attached Files:

  10. jagolden

    jagolden Guest

    Tino,

    Thanks for the update. Pictures look great.
    The detail of the illustrations for the pieces is wonderful.
    Really gives the feeling of depth and sunlight on a real building.
  11. Traveller

    Traveller New Member

    Joined:
    Mar 15, 2008
    Messages:
    17
    Likes Received:
    0
    Great work so far. :thumb::mrgreen:
  12. Lex

    Lex Dollmaker

    Joined:
    Dec 1, 2006
    Messages:
    1,930
    Likes Received:
    0
    ...Um... This is going to be... Awesome!!
  13. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23

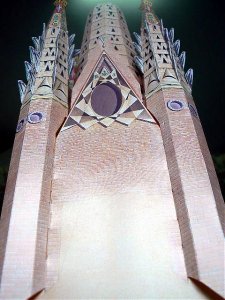

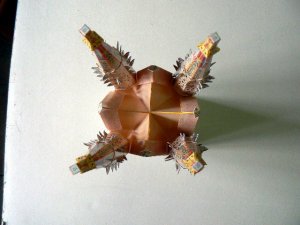

    Now I already have the four towers in place but with out glue to hold them to the corners. The small pieces around the towers also don’t have any glue.

    Attached Files:

  14. DHL

    DHL Member

    Joined:
    Nov 6, 2007
    Messages:
    312
    Likes Received:
    0
    Impressive model
  15. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23
    Thamk you for the comments!

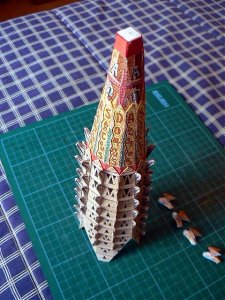

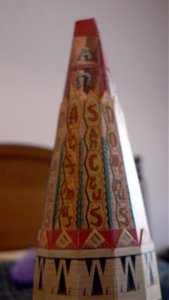

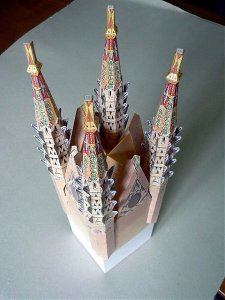

    After a long pause'm back with more photos of the end of the first phase of construction of this great cathedral.
    There were no difficulties so far and most of the pieces are by paste. Even so for a model that is almost all by pasting I think that is not bad.

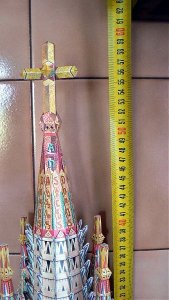

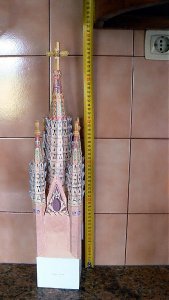

    They can see the central tower next to a tape measure so they can see the height of the model that is slightly higher than what is written on the cover of the model, perhaps due to not be well understood at the base.

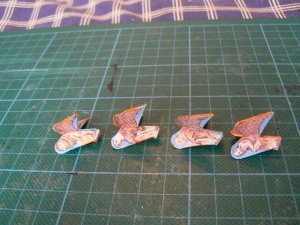

    For now I will not paste the four figures that will be at the top of the towers of the corners. I do not know the meaning of these figures.
    After a long pause'm back with more photos of the end of the first phase of construction of this great cathedral.
    There were no difficulties so far and most of the pieces are by paste. Even so for a model that is almost all by pasting I think that is not bad.
    They can see the central tower next to a tape measure so they can see the height of the model that is slightly higher than what is written on the cover of the model, perhaps due to not be well understood at the base.
    For now I will not paste the four figures that will be at the top of the towers of the corners. I do not know the meaning of these figuras.Depois a long pause'm back with more photos of the end of the first phase of construction of this great cathedral.
    There were no difficulties so far and most of the pieces are by paste. Even so for a model that is almost all by pasting I think that is not bad.
    They can see the central tower next to a tape measure so they can see the height of the model that is slightly higher than what is written on the cover of the model, perhaps due to not be well understood at the base.
    For now I will not paste the four figures that will be at the top of the towers of the corners. I do not know the meaning of these figures.

    Attached Files:

  16. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23
    More pictures.

    Attached Files:

  17. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23
    Next Section – Apsis / Choir

    Here is a little update of the construction. For now I didn’t have any problem, even if Domus seems to have made a small mistake letting a hole in one of pieces. You can see that before the last picture.
    What I expect to give some problems, are both sections in last picture. The pieces seem that don’t align very well.

    Attached Files:

  18. redhorse

    redhorse Member

    Joined:
    Dec 28, 2007
    Messages:
    160
    Likes Received:
    0
    Oh this is very nice. Thanks for posting. I just finished Domus' St. Stephen's Cathedral and these do build into impressive kits. I'm looking forward to seeing this one finished!
  19. tino

    tino Member

    Joined:
    Mar 17, 2004
    Messages:
    244
    Likes Received:
    23
    Cant you put some pictures of your model?

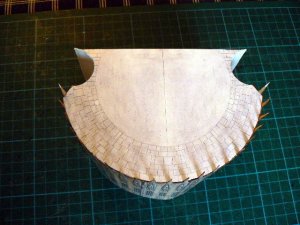

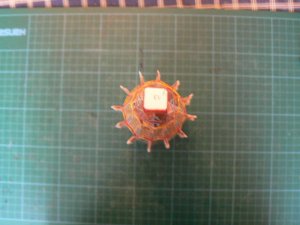

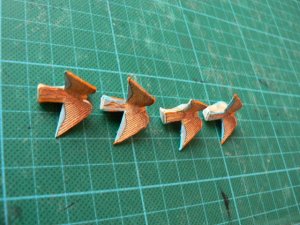

    Continuing with the abside, I now have 14 pieces that should be glued to the big piece that it is in last two pictures.
