SAAB J35 Draken

Discussion in 'Aircraft & Aviation' started by micahrogers, Aug 19, 2012.

  1. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    Hi y'all, I'm gonna try this from the Stahlhart papercraft website.
    They are designed for A4 size paper so I printer scaled them to 8.5 X 11 inch which should make them about 1/65th?

    I'll post starting pics tomorrow.
    Thanks
  2. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385

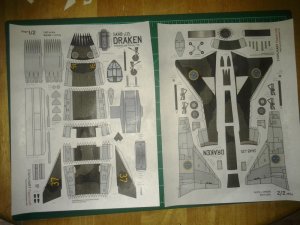

    Ok here is the starting point. Two pages letter size printed and clear coated.

    Attached Files:

  3. shika

    shika Member

    Joined:
    Jul 30, 2012
    Messages:
    252
    Likes Received:
    0
    The instruction is pretty good and don't forget to choose whether to install the
    landing gear or not. Parts and sequences are different.
  4. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    I'm Building the airframe clean, no gear, no stores. But the instructions say to build the main gear well as a structural component.
  5. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385

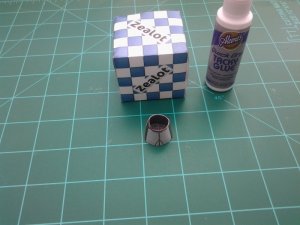

    step one complete. Forward fuselage section and main gear well.

    Attached Files:

  6. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385

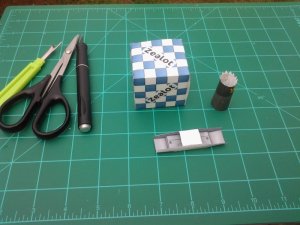

    Step 2 complete. Fuselage end and afterburner housing.

    Attached Files:

  7. Zathros

    Zathros Guest

    I have always liked this met. I would recommend using Popsicle sticks inside the wings and any support you can as these plans will warp over time, unless you really seal them will and there's still no guarantee unless there is something rigid in there. :)
  8. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    Thanks for the tip. I used to go to the IPMS chapter meetings just for this kind of support and help. I am so glad I found this forum.
    Thanks.
  9. shika

    shika Member

    Joined:
    Jul 30, 2012
    Messages:
    252
    Likes Received:
    0
    Main gear well is used as plane cross structure
  10. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    Step 3 complete.

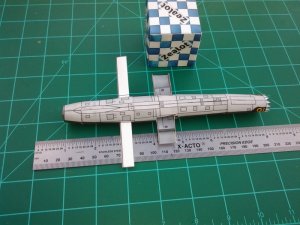

    Main fuselage section completed with main gear well and wing cross member in place. Either thru my poor skills or another bad printer scale a few panel lines are out of alignment but so far it is acceptable.

    Attached Files:

  11. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    Step 4 done. Wings made and attached. panel lines slightly out of line but camo pattern lines up.

    Attached Files:

  12. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385

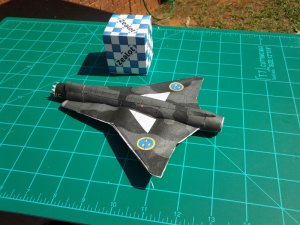

    Step 5 done. Fuselage hump installed.

    Attached Files:

  13. shika

    shika Member

    Joined:
    Jul 30, 2012
    Messages:
    252
    Likes Received:
    0
    Looking at the wing, I guess you use the 80 gram paper.
    It gives you better shape if you use 120 gram up.
    Anyway, maybe next built.
  14. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385

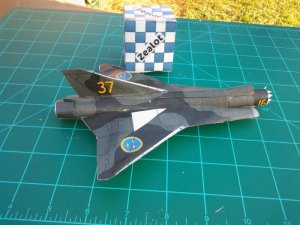

    I have just two weights of paper 20# "Regular" paper and 120# card stock. This was printed with regular paper because I thought the card stock would be too thick. Ohh well live and learn... Anywhoo the tail fin is on.
    -

    Attached Files:

  15. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,516
    Likes Received:
    2,453
    This looking good.
    If I may suggest, you may want to get some water colour paint and lightly paint the edges of your parts before you glue everything together. It gives a more finished look.

    Other then that, you are doing good.
  16. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    I work this weekend so my next chance to work on it may be Monday. Trying to get a 40 hour week done in three days. I use watercolor pencils to do the edges after the glue dries, should I be doing the edges before I glue as well?
  17. freddyman

    freddyman newbie

    Joined:
    Feb 13, 2012
    Messages:
    402
    Likes Received:
    542
    can't wait to see the progress. your doing an impressive job

    freddy
  18. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,516
    Likes Received:
    2,453
    Yes, you should colour the edges of your parts before gluing the parts together.
    The pencils are good, but the reason I suggested paints, is that you can mix the paints to get the right colour that you need.

    Good luck with it.
  19. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    Freddyman.. Nice avatar... one of my fondest memories of childhood is seeing a Blackbird do a Low, Slow pass over Randolph AFB at an air show. Newer memory at NMotUSAF Wright-Patterson AFB.
    RB... the pencils I have are watercolor so I can wet them and blend colors just like with paints.

    Attached Files:

  20. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385

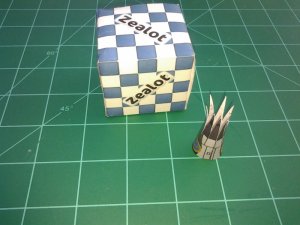

    Back on the subject of the J35, the nose cone is divided up into petals, what is the best way to make those petals into a cone?
