S-curve question

Discussion in 'Track Planning' started by GP18m, Jan 8, 2007.

  1. GP18m

    GP18m New Member

    Joined:
    Dec 23, 2006
    Messages:
    5
    Likes Received:
    0
    Hi,

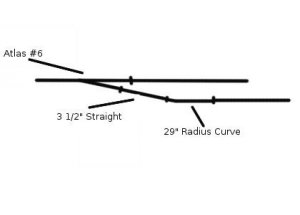

    Below is a picture of a curve to a parallel track. I'm asking for opinions considering the s-curve in it. Equipment is geeps, 40' & 50' cars.

    Thanks

    Attached Files:

  2. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    In so many cases, layouts don't have enough room to adequately handle large radius curves, so we are restricted to what doesn't always look good. That in mind, does it work? YES- keep it NO-try to go to a bigger radius, if possible.
    If it isn't installed yet, tack it down on foam or cork, and see if your locos can handle it. The cost of sectional track is not so high that something like this can be tested, off layout, before it is installed.
  3. jetrock

    jetrock Member

    Joined:
    Dec 19, 2003
    Messages:
    956
    Likes Received:
    0
    It seems like a fairly gentle S-curve to me, as long as you aren't sailing into it at breakneck speeds.
  4. wdsrwg

    wdsrwg Member

    Joined:
    Jan 30, 2006
    Messages:
    139
    Likes Received:
    0
    I have several curves similar to this in my switching yard.
    All come off of radius curves that will not allow for
    anything but slower speeds to enter.
    The biggest problem I have encountered is the
    binding I will sometimes get on some of my
    rolling stock. this can be fixed with some modifications.
    You are doing just fine. Heck, I have s curves,
    u curves a few g curves and a T curve. :D
    Just kidding. Lay it down and see what happens.
    Best=it works fine.
    Worst=pull up the pins and try something different! :rolleyes:

    Russell
  5. phoneguy

    phoneguy member

    Joined:
    May 17, 2005
    Messages:
    36
    Likes Received:
    0
    A number 6 crossover will work out to about 2" straight and a 46" curve when you substitute for one of the switches. I use a 3" straight and a 32" curve and that works good.
  6. GP18m

    GP18m New Member

    Joined:
    Dec 23, 2006
    Messages:
    5
    Likes Received:
    0
    Thanks for your answers.

    Another question came to my mind. I have aimed for the straight section between curves to be as long as possible, that makes the curves in the end sharper, right? But which is better considering the s-curves effect, longer straight or gentler curves?
